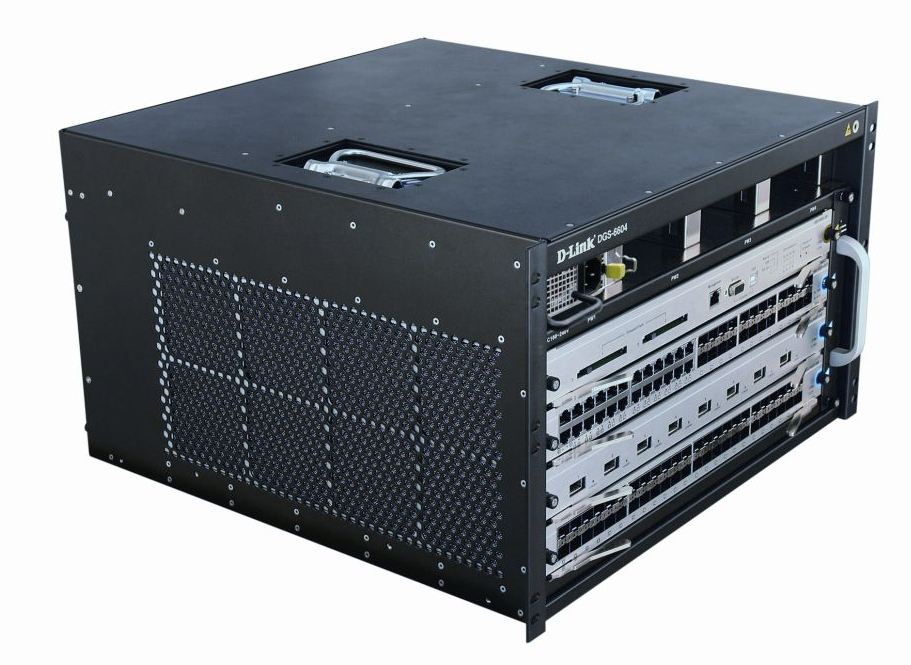

D-Link 4-Slot Layer3 Chassis Switch Starter Kit
Model 4-Slot Layer3 Chassis Switch Starter KitPart no. DGS-6604-SKEAN 790069369315
50 specifications
- Speed428.57 Gbit/s
- ConnectivityWired
- ColourBlack
- Switch typeManaged
- SFP/SFP+ slots quantity144
- 10G supportYes
Overview
- Speed
- 428.57 Gbit/s
- Connectivity
- Wired
- Colour
- Black
- Switch type
- Managed
- SFP/SFP+ slots quantity
- 144
- 10G support
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- 4-Slot Layer3 Chassis Switch Starter Kit
- Part number
- DGS-6604-SK
- EAN / UPC
- 790069369315, 790069351785, 790069354762, 7900693517850 +1 more
- Also known as
- D-Link 4-Slot Layer3 Chassis Switch Starter Kit Managed L3 Power over Ethernet (PoE) Black
Specifications
50 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| SFP/SFP+ slots quantity | 144 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1x, IEEE 802.3ae |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 576 Gbit/s |
| Maximum data transfer rate | 428.57 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, RMON, SNMP v1/2/3 |
| Switching protocols | TFTP, DHCP |
| Supported network protocols | IPv4/IPv6 |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 696.94 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Management platform | CLI |
| Dimensions (WxDxH) | 484 x 470 x 280 mm |
| Connectivity technology | Wired |
| Authentication method | RADIUS |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
| Power requirements | 100 - 240 VAC, 50/60 Hz |
| Wi-Fi | No |
| I/O ports | 144 x 10/100/1000BASE-T Ports 144 x SFP Slots 24 x 10-Gigabit Ethernet XFP Slots |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
What people say
Reviews & ratings
D-Link 4-Slot Layer3 Chassis Switch Starter Kit
No reviews yet
Be the first to tell others how D-Link 4-Slot Layer3 Chassis Switch Starter Kit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare D-Link 4-Slot Layer3 Chassis Switch Starter Kit

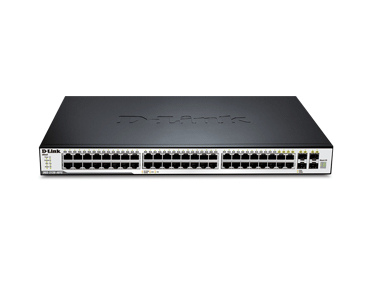

All network switch comparisons- D-Link 4-Slot Layer3 Chassis Switch Starter Kit vsD-Link DGS-3120-48TC/EI network switch Managed L2+Compare specs
- D-Link 4-Slot Layer3 Chassis Switch Starter Kit vsD-Link DGS-3120-24SC/EI network switch Managed L2+ BlackCompare specs
- D-Link 4-Slot Layer3 Chassis Switch Starter Kit vsD-Link DGS-6604-SK-48P network switch Managed L3 Power over Ethernet (PoE) BlackCompare specs
- D-Link 4-Slot Layer3 Chassis Switch Starter Kit vsD-Link DES-3200-18 network switch Managed L2 1U BlackCompare specs

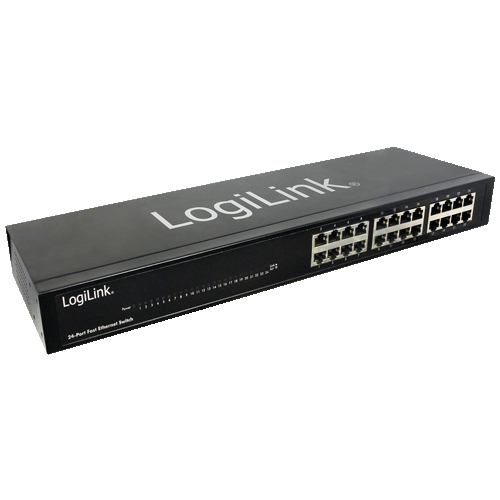

- D-Link 4-Slot Layer3 Chassis Switch Starter Kit vsLogiLink NS0025A network switch Unmanaged BlackCompare specs
