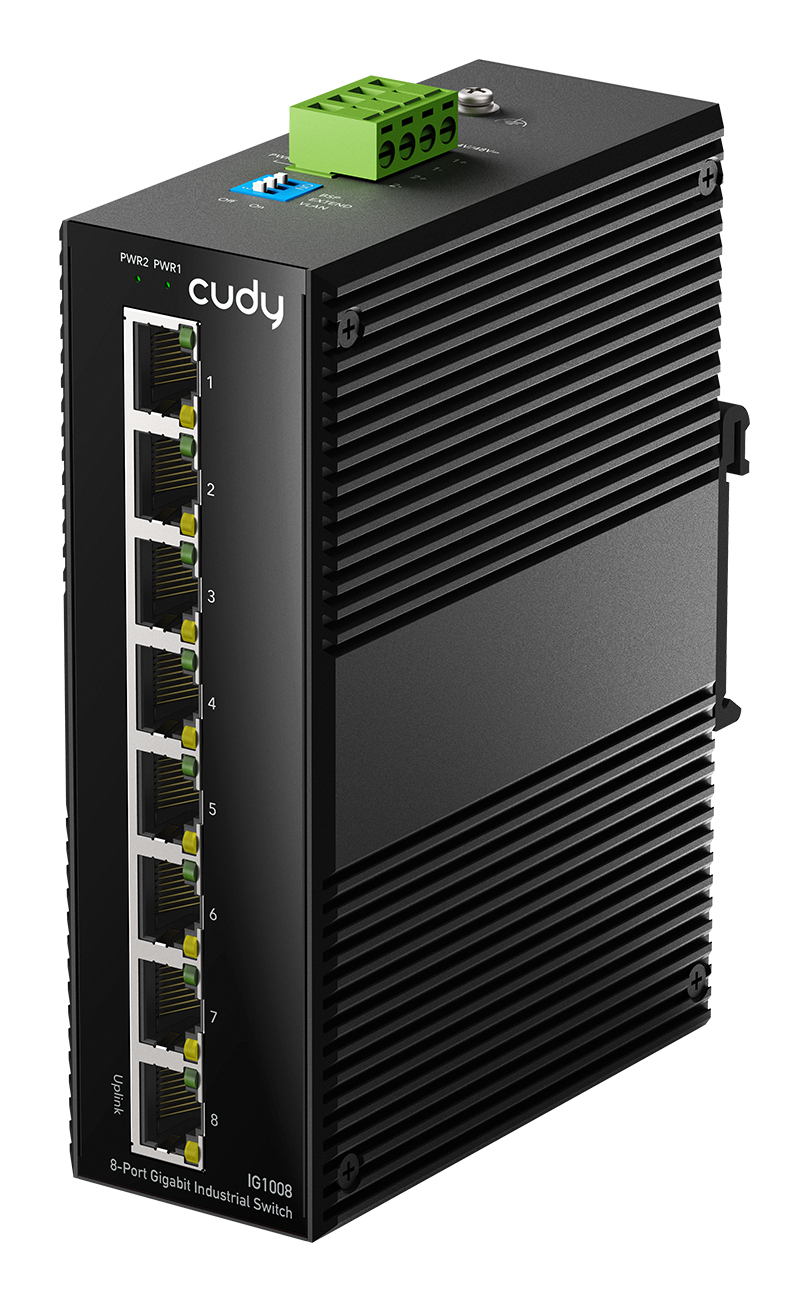

IG1008 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Model IG1008EAN 6971690792756
51 specifications
- Weight504.6 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table8192 entries
Overview
- Weight
- 504.6 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 8192 entries
- Brand
- Cudy
- Category
- Network Switch
- Model
- IG1008
- Part number
- IG1008
- EAN / UPC
- 6971690792756
- Also known as
- Cudy IG1008 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Specifications
51 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | Terminal block (4-pin) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat5, Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.904 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 0.5 MB |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Aluminium |
| Reset button | Yes |
| LED indicators | Yes |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 300000 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 9.6 - 60 V |
| Power consumption (max) | 3 W |
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 144 mm |
| Depth | 103 mm |
| Height | 47.7 mm |
| Weight | 504.6 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 207 mm |
| Package depth | 154 mm |
| Package height | 75 mm |
| Package weight | 663 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
