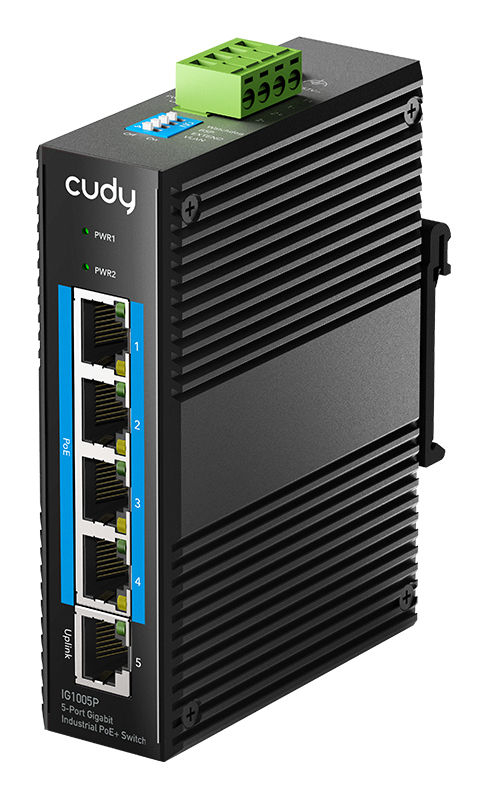

IG1005P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model IG1005PEAN 6971690792329
55 specifications
- Weight342.5 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2048 entries
Overview
- Weight
- 342.5 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2048 entries
- Brand
- Cudy
- Category
- Network Switch
- Model
- IG1005P
- Part number
- IG1005P
- EAN / UPC
- 6971690792329
- Also known as
- Cudy IG1005P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
55 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | Terminal block (4-pin) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat5, Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 2000 |
| Packet buffer memory | 0.25 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Aluminium |
| Reset button | Yes |
| LED indicators | Yes |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 300000 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 44 - 57 V |
| Power consumption (max) | 120 W |
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 118 mm |
| Depth | 86 mm |
| Height | 33.5 mm |
| Weight | 342.5 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 182 mm |
| Package depth | 137 mm |
| Package height | 65 mm |
| Package weight | 474 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
