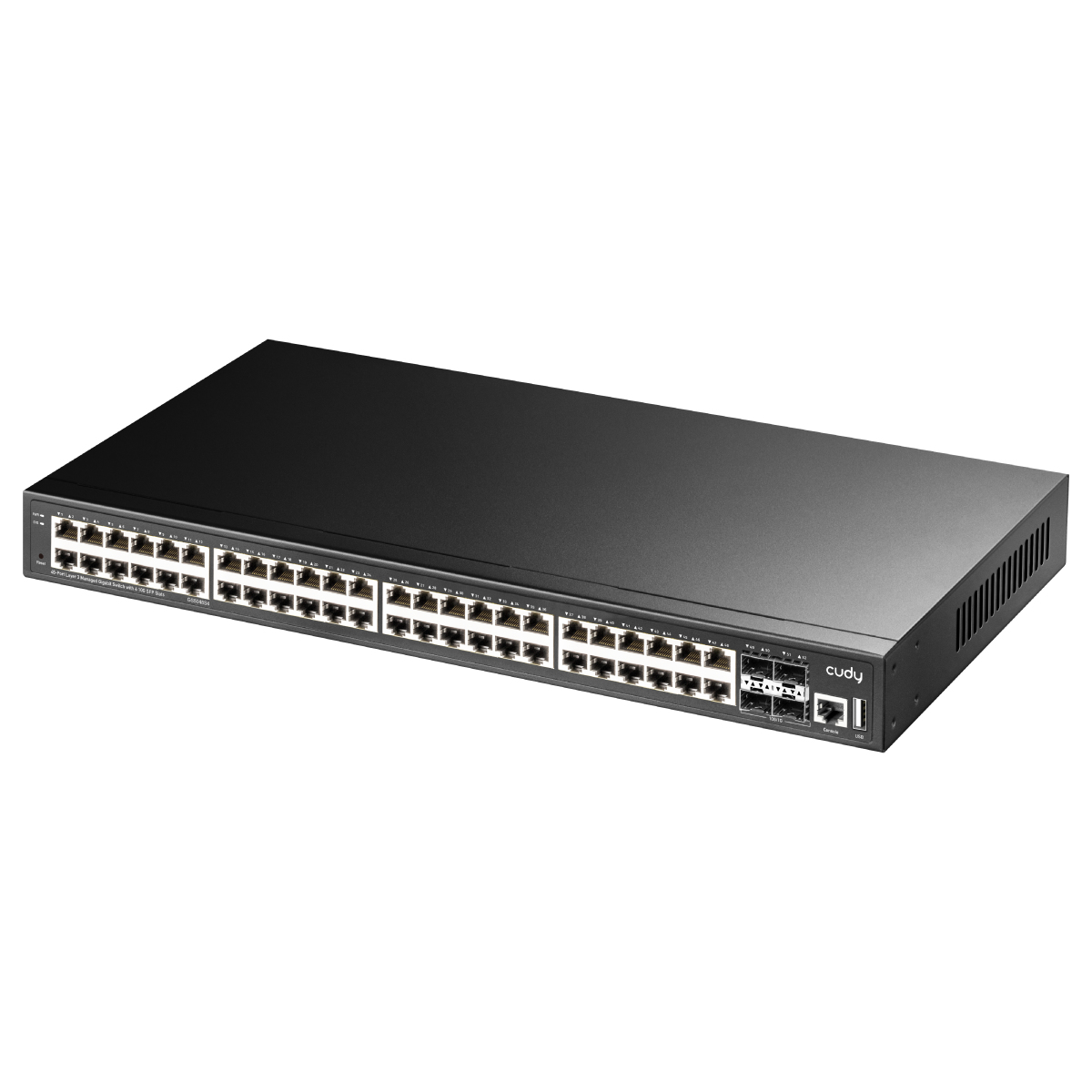

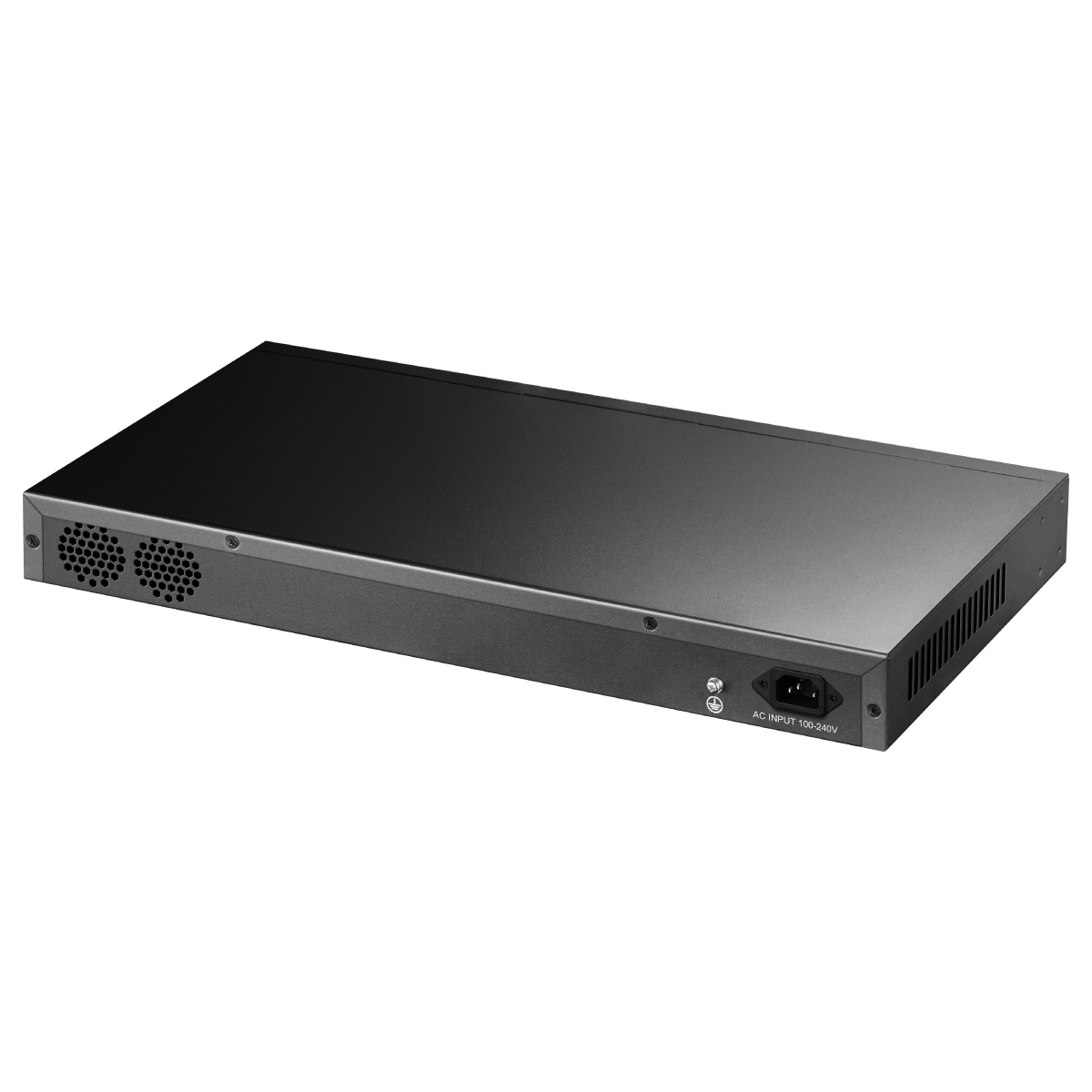

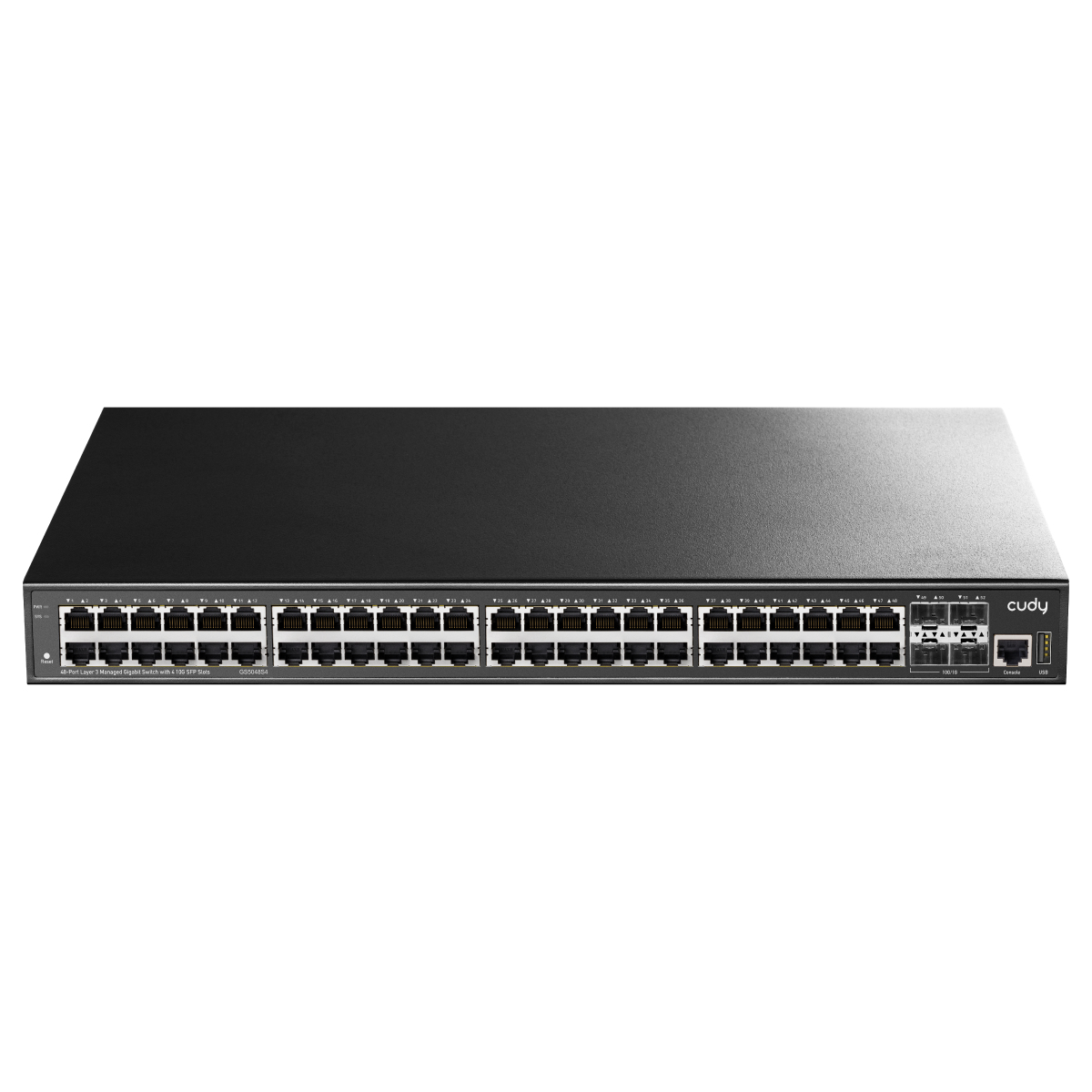

GS5048S4 network switch Managed L3 Gigabit Ethernet (10/100/1000) Black
Model GS5048S4EAN 6971690793012
65 specifications
- Memory512 MB
- Weight3.87 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportYes
Overview
- Memory
- 512 MB
- Weight
- 3.87 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- Yes
- Brand
- Cudy
- Category
- Network Switch
- Model
- GS5048S4
- Part number
- GS5048S4
- EAN / UPC
- 6971690793012
- Also known as
- Cudy GS5048S4 network switch Managed L3 Gigabit Ethernet (10/100/1000) Black
Specifications
65 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Installed SFP+ modules quantity | 4 |
| USB Type-A ports quantity | 1 |
| Console port | RJ-45/USB Type-A |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Cable types supported | Cat3, Cat4, Cat5 |
| Port mirroring | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 4096 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber type | Multi-mode |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 131 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12 |
| Packet buffer memory | 0.25 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| Authentication | Port-based authentication |
| Authentication type | AAA, RADIUS, TACACS+ |
| IP-MAC-Port binding | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | OSPF |
| IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping, IPv6 tracert |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Activity, System, Link, Power |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 280 mm |
| Height | 44 mm |
| Weight | 3.87 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 500 mm |
| Package depth | 365 mm |
| Package height | 85 mm |
| Package weight | 4.7 kg |
