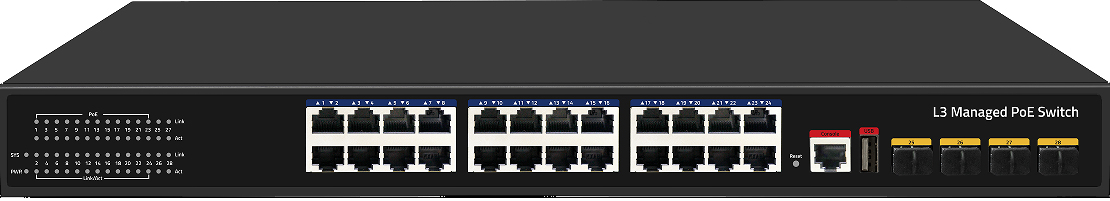

GS5024PS4 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model GS5024PS4Part no. GS5024PS4-400WEAN 6971690792749
66 specifications
- Memory128 MB
- Weight4.03 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
Overview
- Memory
- 128 MB
- Weight
- 4.03 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- Brand
- Cudy
- Category
- Network Switch
- Model
- GS5024PS4
- Part number
- GS5024PS4-400W
- EAN / UPC
- 6971690792749
- Also known as
- Cudy GS5024PS4 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
66 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Multiple VXLAN (MUX VLAN), Private VLAN, Protocol-based VLAN |
| Number of VLANs | 4096 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
| Fiber type | Multi-mode |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.23 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication type | IEEE 802.1x |
| IP-MAC-Port binding | Yes |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | OSPF, RIP |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Activity, Link, System |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 100000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 33 W |
| Power consumption (max) | 440 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 390 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 4.03 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Serial |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 385.5 mm |
| Package depth | 503 mm |
| Package height | 91 mm |
| Package weight | 5.15 kg |
