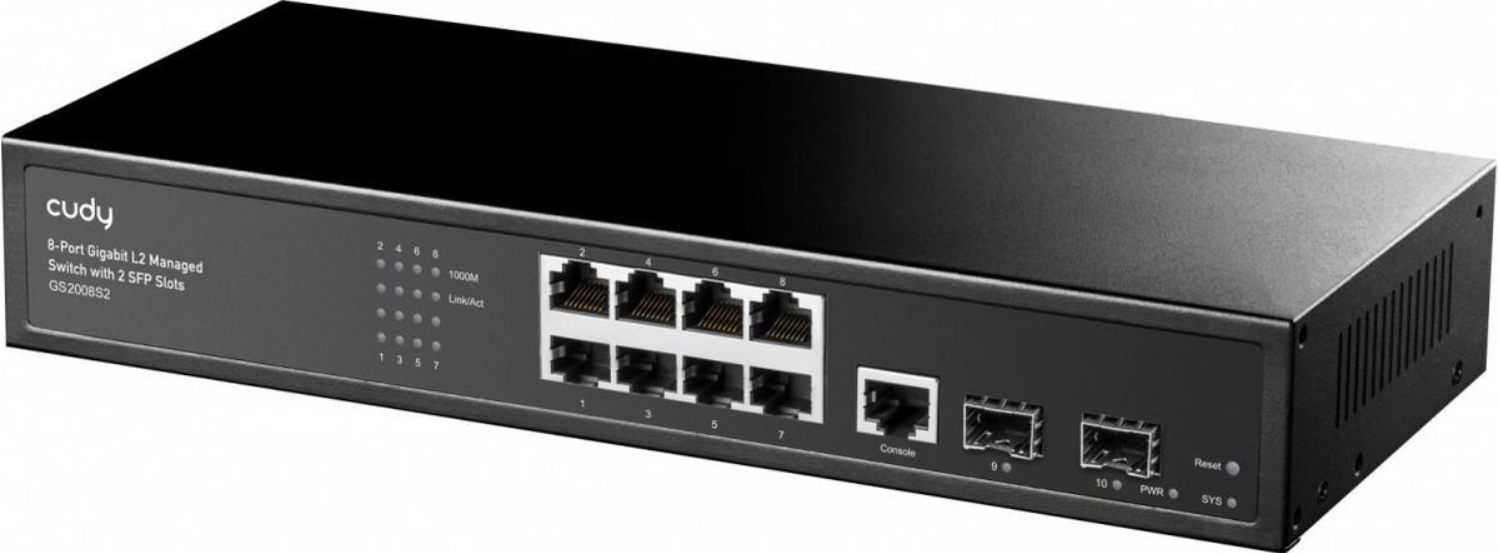

GS2008S2 network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Model GS2008S2EAN 6971690792923
65 specifications
- Memory128 MB
- Type1U
- Weight1.01 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Memory
- 128 MB
- Type
- 1U
- Weight
- 1.01 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- Cudy
- Category
- Network Switch
- Model
- GS2008S2
- Part number
- GS2008S2
- EAN / UPC
- 6971690792923
- Also known as
- Cudy GS2008S2 network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Specifications
65 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11j, IEEE 802.11k, IEEE 802.1Qav |
| Cable types supported | Cat3, Cat4, Cat5 |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 4096 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber type | Multi-mode |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.66 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9.6 |
| Packet buffer memory | 0.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 82, DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| Authentication | Port-based authentication |
| Authentication type | RADIUS, TACACS+ |
| IP-MAC-Port binding | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| IPv4 & IPv6 features | IPv6 Telnet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, Power, System |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 268 mm |
| Depth | 181 mm |
| Height | 44 mm |
| Weight | 1.01 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 312 mm |
| Package depth | 262 mm |
| Package height | 84 mm |
| Package weight | 1.54 kg |
