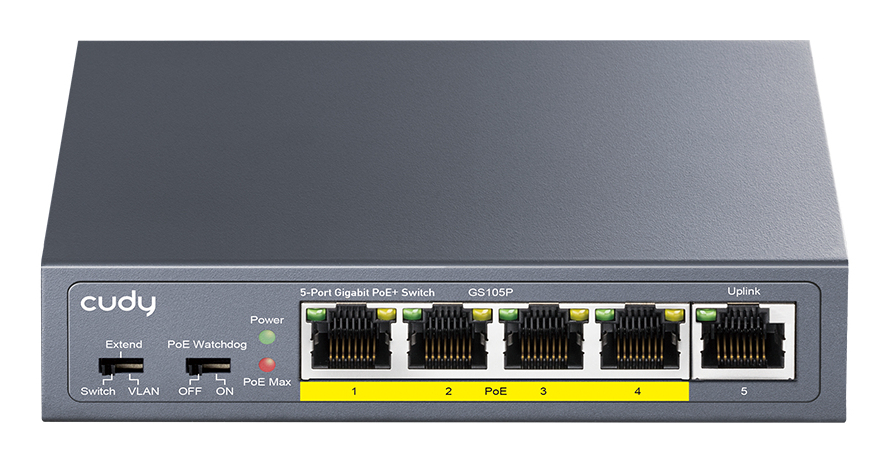

GS105P network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model GS105P
54 specifications
- Weight253.6 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity5
- Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table2048 entries
- Rack mountingNo
Overview
- Weight
- 253.6 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table
- 2048 entries
- Rack mounting
- No
- Brand
- Cudy
- Category
- Network Switch
- Model
- GS105P
- Part number
- GS105P
- Also known as
- Cudy GS105P network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
54 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat5, Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 0.375 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Loop, Link, Power |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 5 V |
| Input current | 0.66 A |
| Power consumption (max) | 36 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 36 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 119 mm |
| Depth | 58 mm |
| Height | 28 mm |
| Weight | 253.6 g |

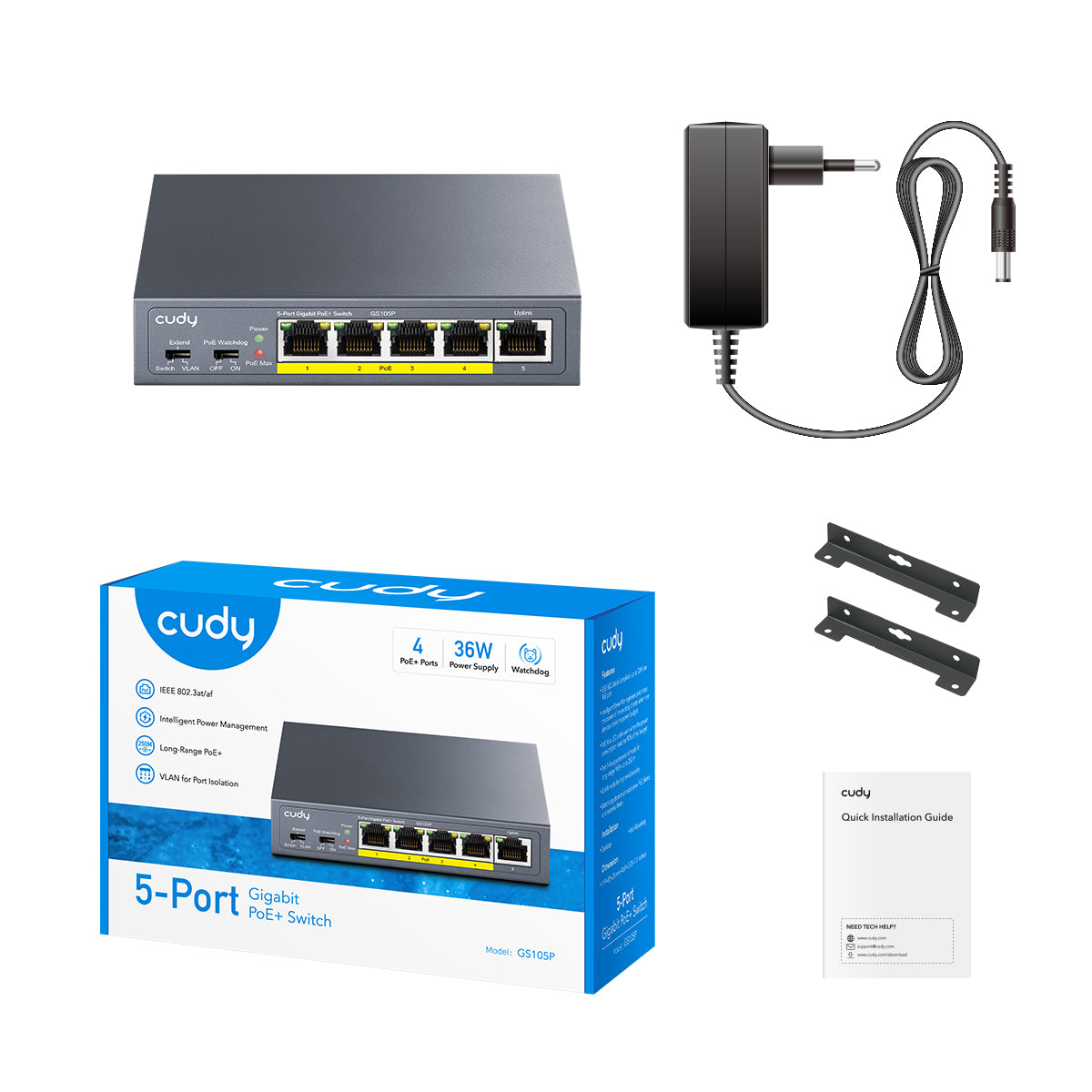

Packaging content
| Specification | Value |
|---|---|
| Cables included | DC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 165 mm |
| Package depth | 123 mm |
| Package height | 60 mm |
| Package weight | 580 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 505 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 400 mm |
| Master (outer) case gross weight | 17 kg |
| Products per master (outer) case | 40 pc(s) |
