GS1026PS2 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model GS1026PS2EAN 6971690793333
44 specifications
- Weight1.99 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity26
- 10G supportNo
- MAC address table8192 entries
- Rack mountingYes
Overview
- Weight
- 1.99 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 26
- 10G support
- No
- MAC address table
- 8192 entries
- Rack mounting
- Yes
- Brand
- Cudy
- Category
- Network Switch
- Model
- GS1026PS2
- Part number
- GS1026PS2
- EAN / UPC
- 6971690793333
- Also known as
- Cudy GS1026PS2 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
44 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Cable types supported | Cat3, Cat5, Cat5e |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.664 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 0.375 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Link, PoE, Power |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 300 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 300 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 320 mm |
| Depth | 207 mm |
| Height | 44 mm |
| Weight | 1.99 kg |

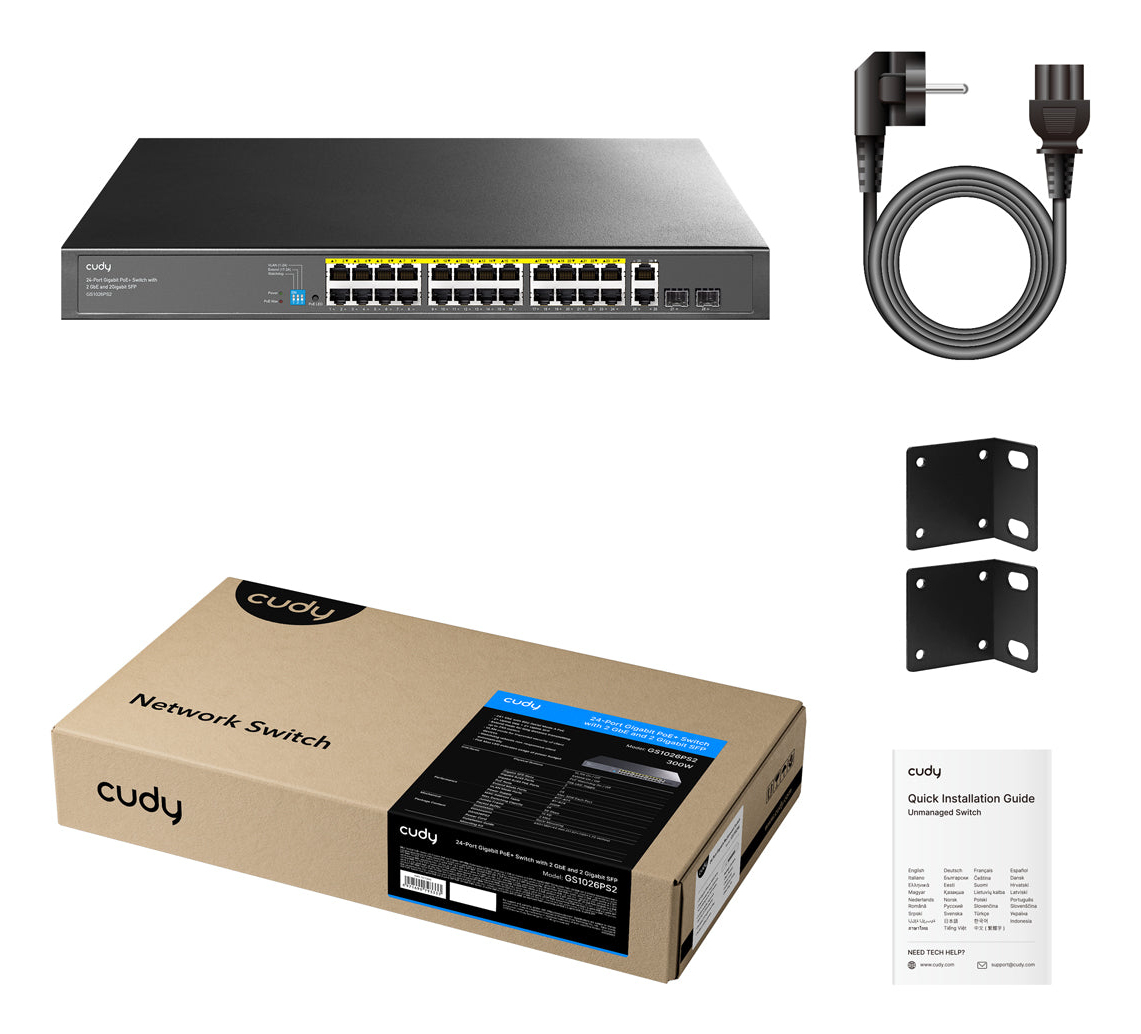

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 370 mm |
| Package depth | 290 mm |
| Package height | 85 mm |
| Package weight | 2.53 kg |
