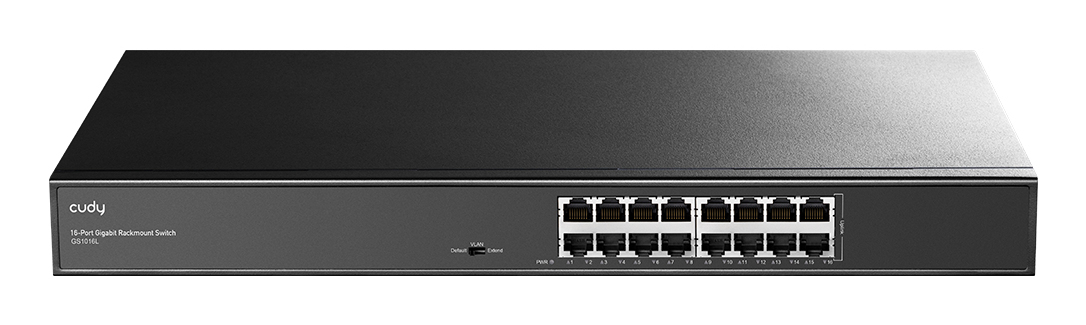

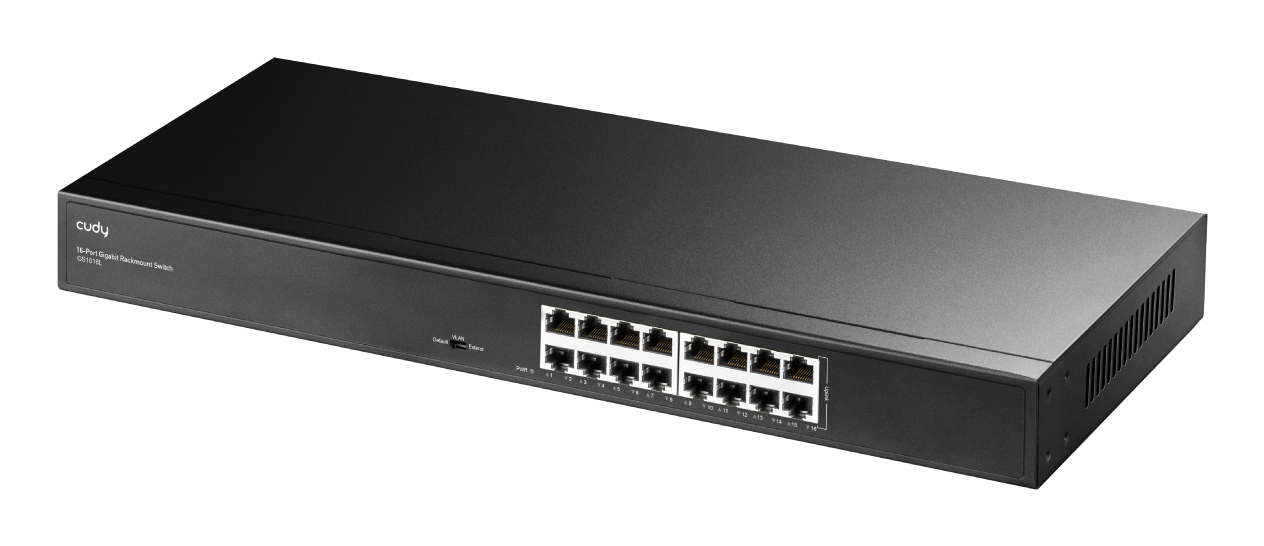

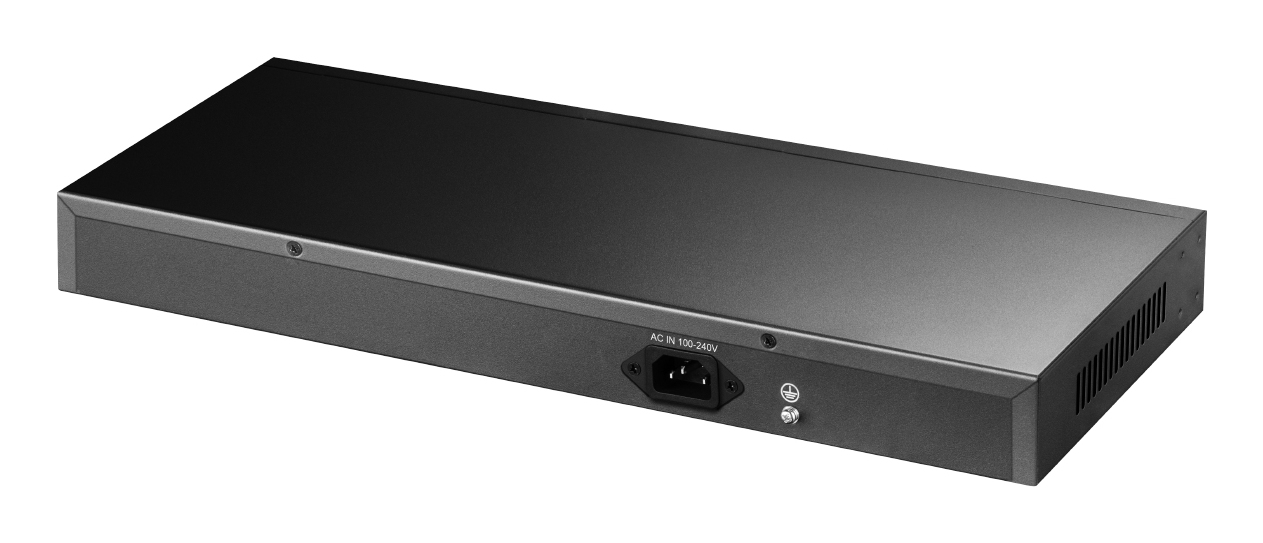

GS1016L network switch Gigabit Ethernet (10/100/1000) Black
Model GS1016LEAN 6971690794361
37 specifications
- Weight1.6 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity16
- Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
- Transmission distance (max)0.1 km
- MAC address table8192 entries
Overview
- Weight
- 1.6 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Transmission distance (max)
- 0.1 km
- MAC address table
- 8192 entries
- Brand
- Cudy
- Category
- Network Switch
- Model
- GS1016L
- Part number
- GS1016L
- EAN / UPC
- 6971690794361
- Also known as
- Cudy GS1016L network switch Gigabit Ethernet (10/100/1000) Black
Specifications
37 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Optical fiber
| Specification | Value |
|---|---|
| Transmission distance (max) | 0.1 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 32 Gbit/s |
| Throughput | 23.808 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15 |
| Packet buffer memory | 0.5 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 15 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.6 kg |

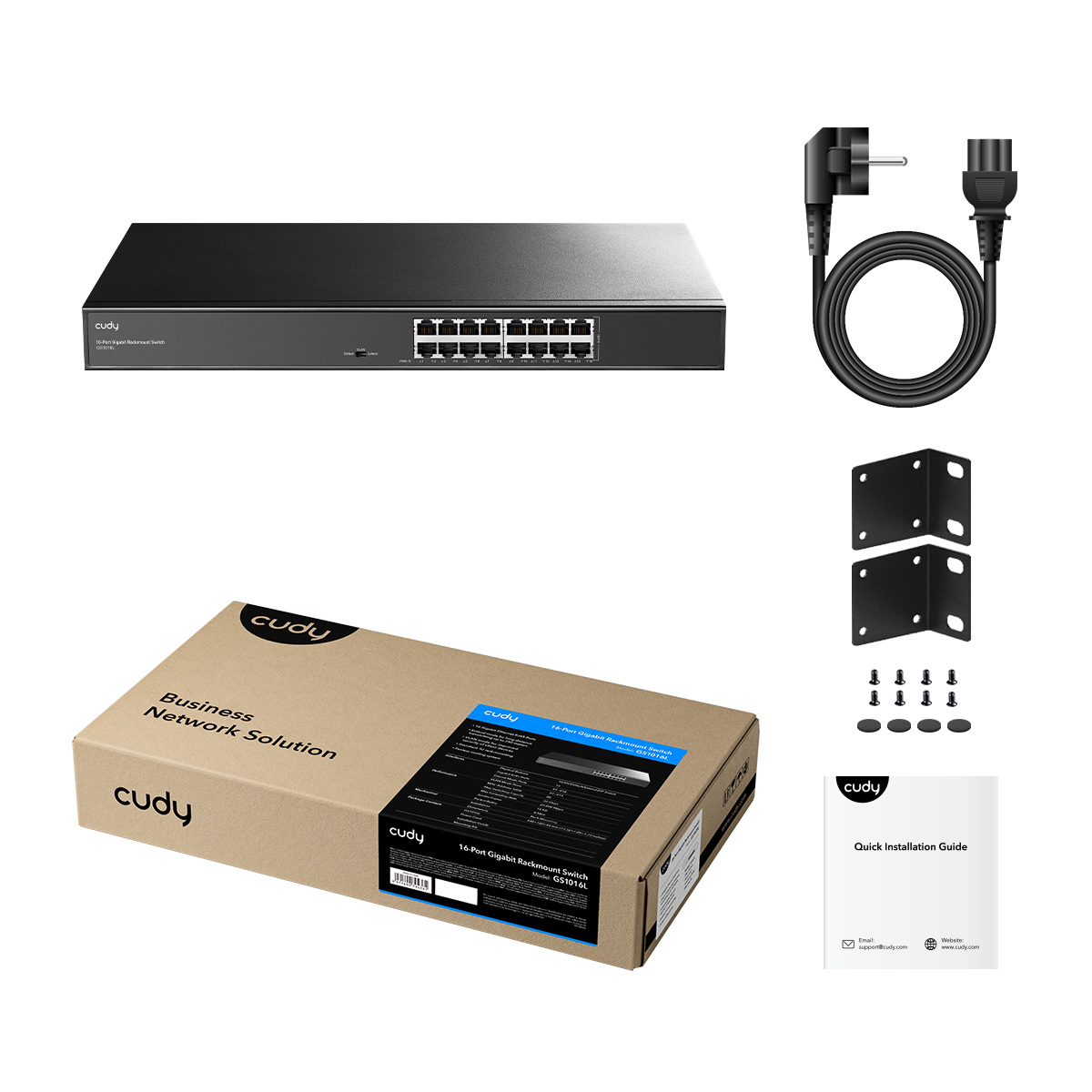

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 487 mm |
| Package depth | 267 mm |
| Package height | 84 mm |
| Package weight | 2.28 kg |
