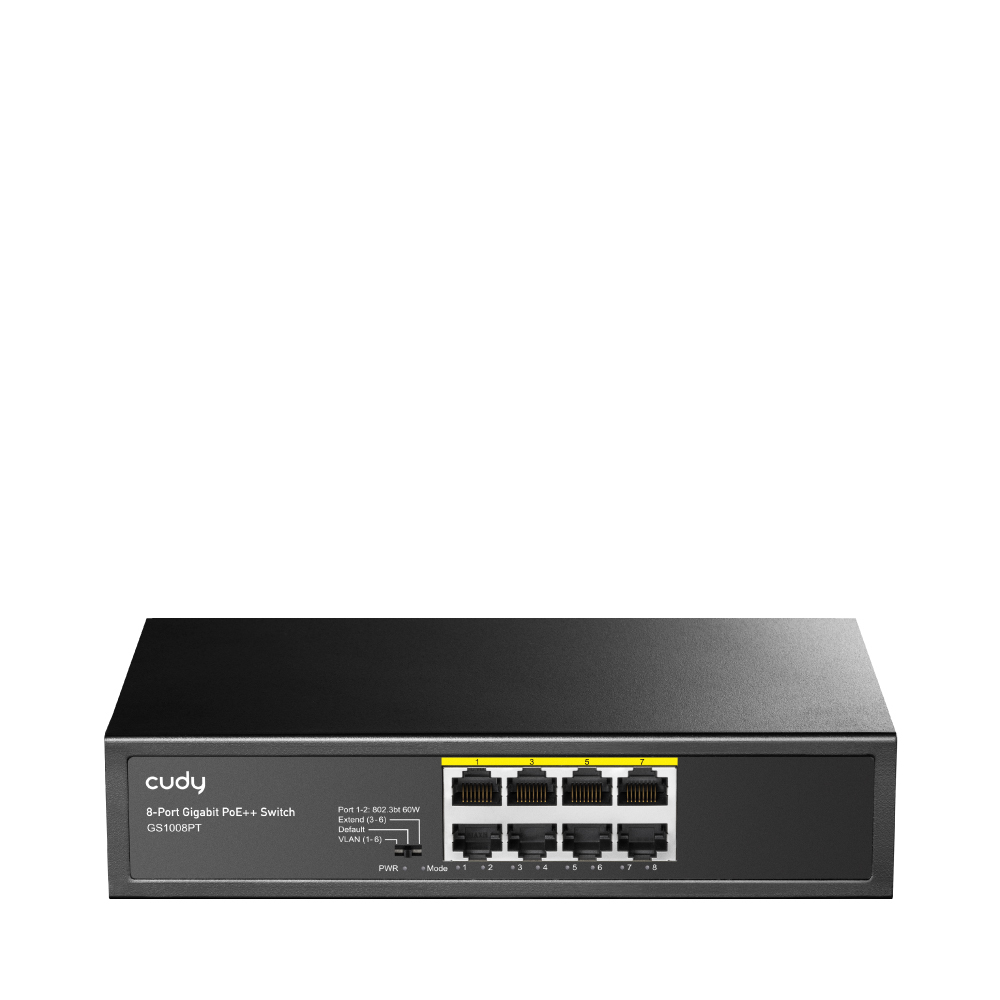

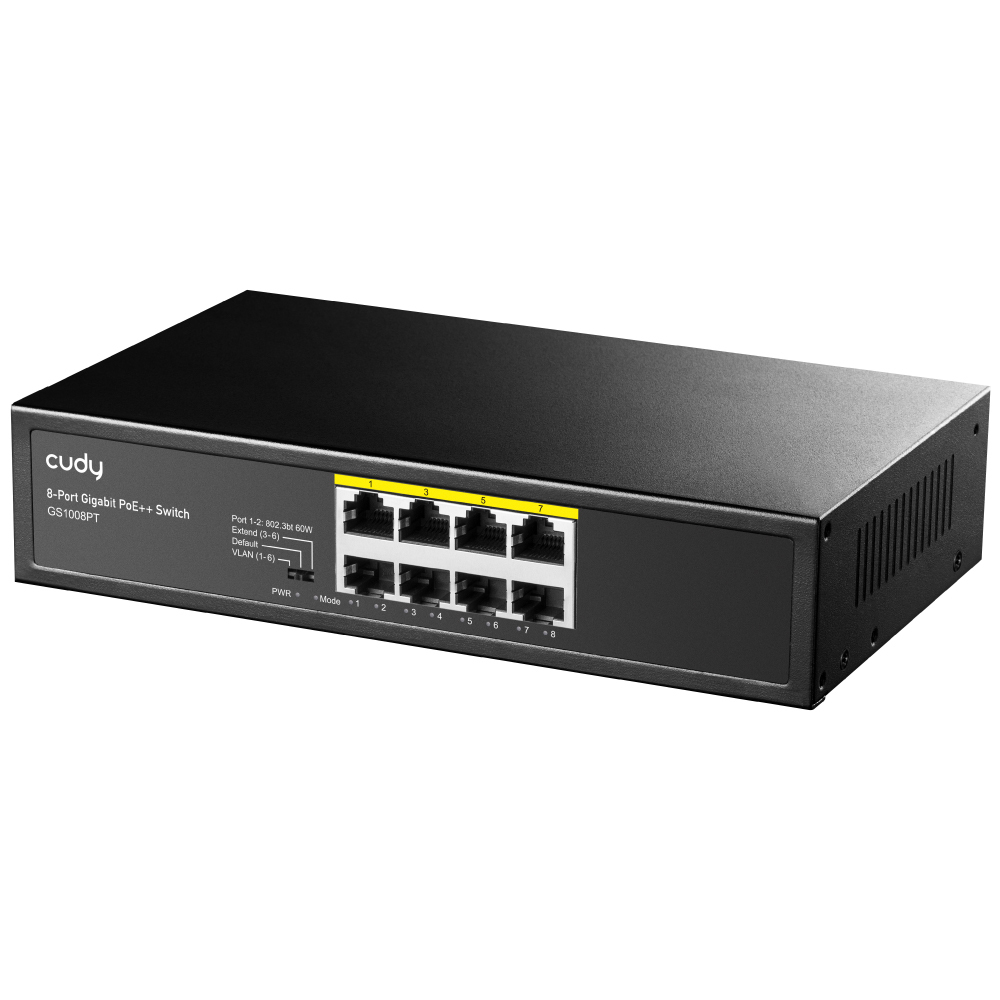

GS1008PT network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model GS1008PTEAN 6971690791728
58 specifications
- Weight600 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity8
- Full duplexYes
- MAC address table2000 entries
- Power sourceAC
Overview
- Weight
- 600 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Full duplex
- Yes
- MAC address table
- 2000 entries
- Power source
- AC
- Brand
- Cudy
- Category
- Network Switch
- Model
- GS1008PT
- Part number
- GS1008PT
- EAN / UPC
- 6971690791728
- Also known as
- Cudy GS1008PT network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
58 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 |
| Full duplex | Yes |
| Half duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 16 Gbit/s |
| Throughput | 11.9 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.18 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 100000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 52 V |
| Output current | 2.3 A |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 120 W |
| Total Power over Ethernet (PoE) budget | 30 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 118 mm |
| Height | 44 mm |
| Weight | 600 g |

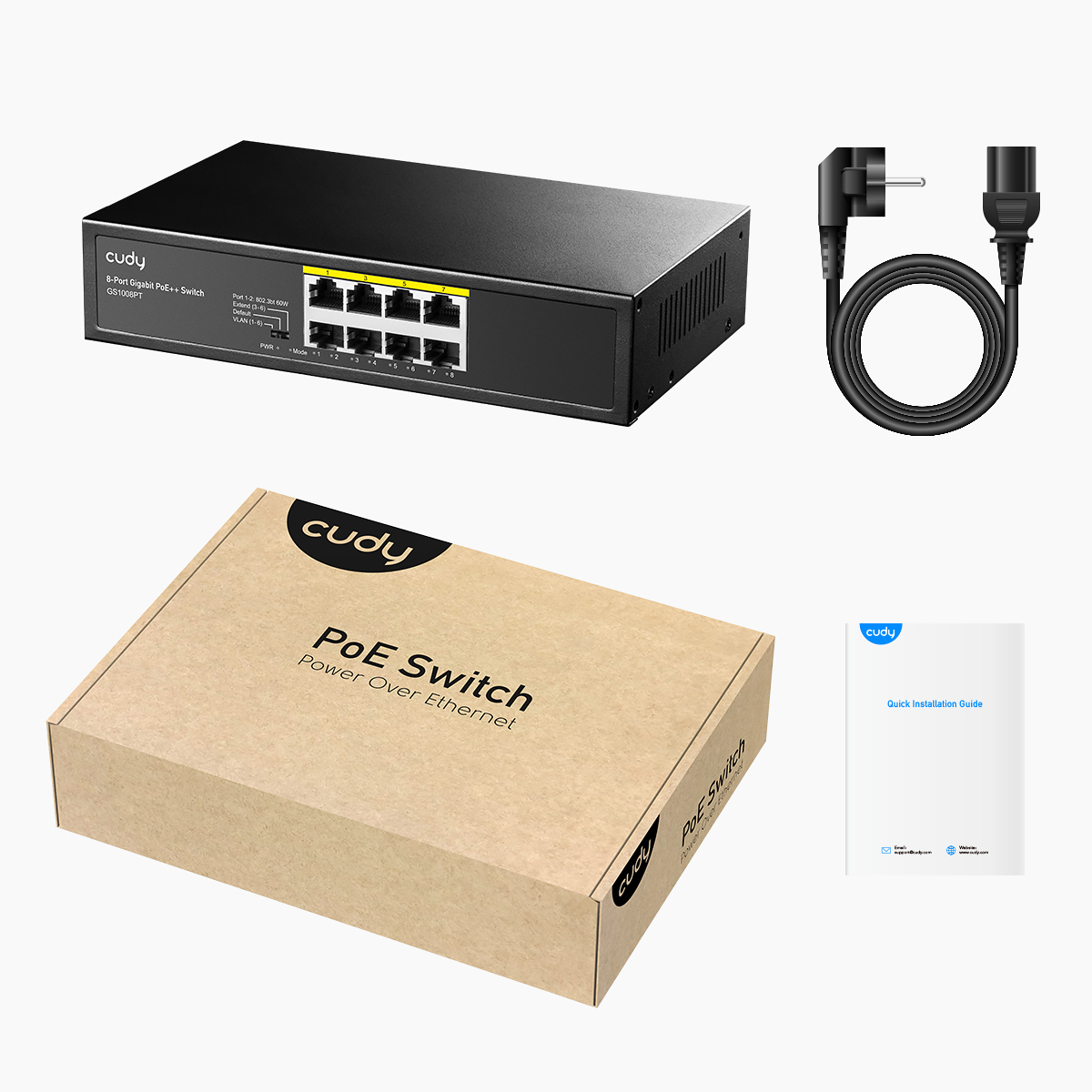

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 245 mm |
| Package depth | 190 mm |
| Package height | 60 mm |
| Package weight | 900 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 19 kg |
| Master (outer) case width | 505 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 402 mm |
| Products per master (outer) case | 20 pc(s) |
