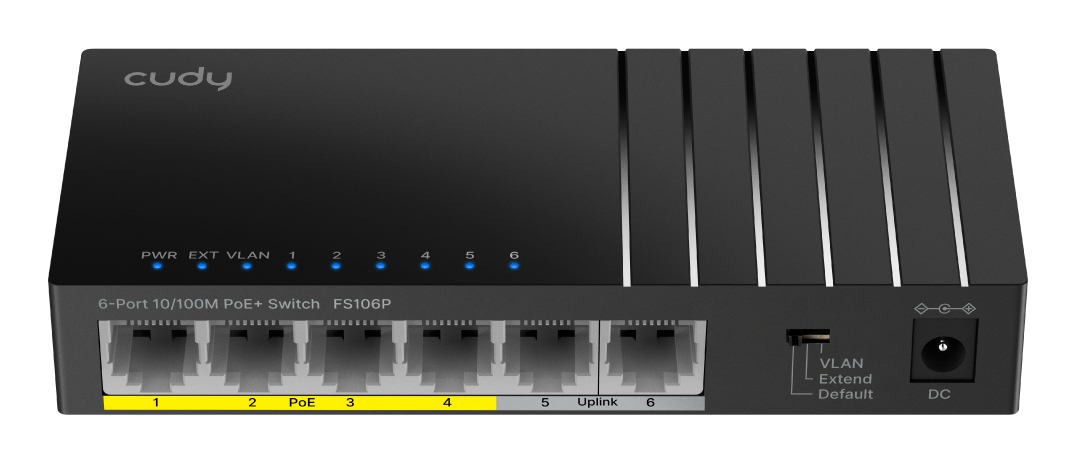

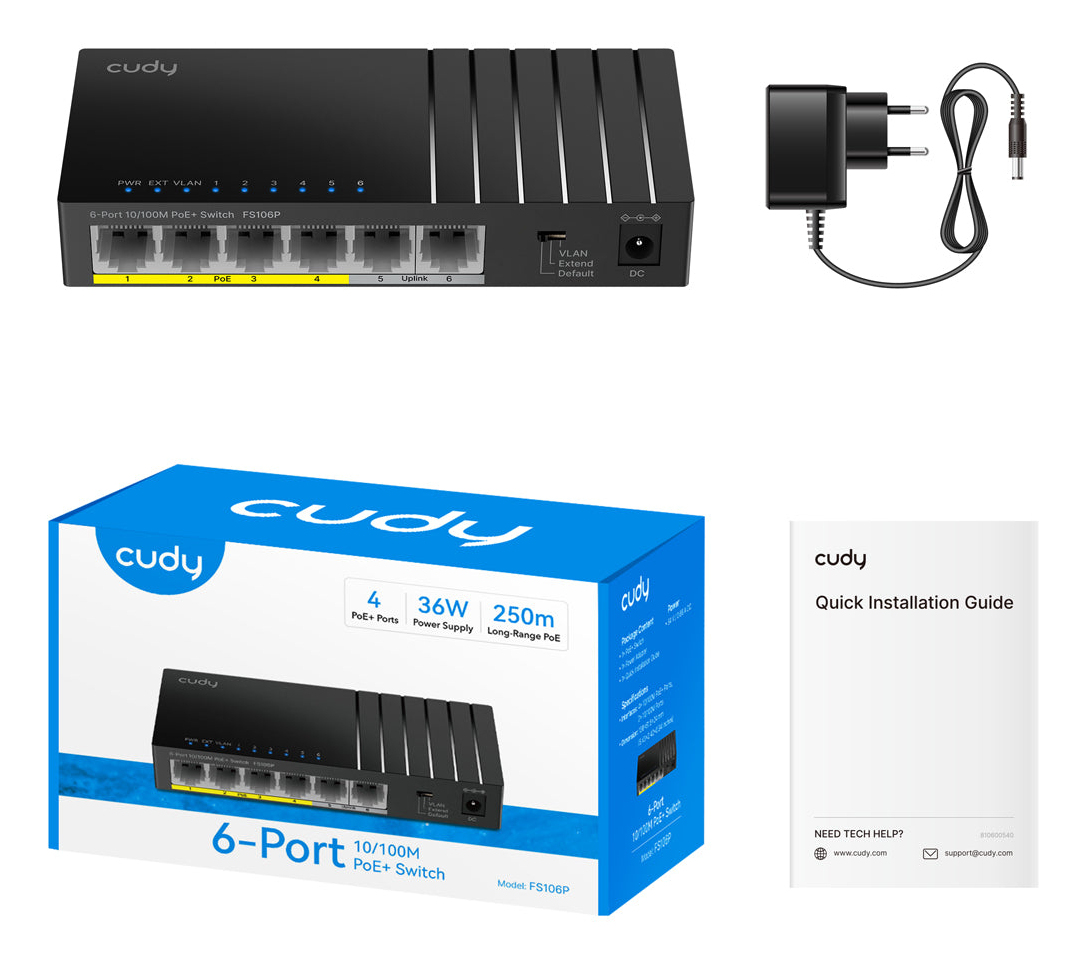

FS106P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model FS106PEAN 6971690792152
39 specifications
- Weight88 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity6
- Copper ethernet cabling technology10BASE-T, 100BASE-TX
- MAC address table2048 entries
Overview
- Weight
- 88 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 6
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX
- MAC address table
- 2048 entries
- Brand
- Cudy
- Category
- Network Switch
- Model
- FS106P
- Part number
- FS106P
- EAN / UPC
- 6971690792152
- Also known as
- Cudy FS106P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
39 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Cloud-managed | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat5, Cat5e |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 1.2 Gbit/s |
| Forwarding rate | 0.8928 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 2000 |
| Packet buffer memory | 0.57 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 54 V |
| Input current | 0.66 A |
| Power consumption (max) | 36 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 36 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 138 mm |
| Depth | 61.5 mm |
| Height | 24 mm |
| Weight | 88 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 151 mm |
| Package depth | 95 mm |
| Package height | 72 mm |
| Package weight | 367.7 g |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
