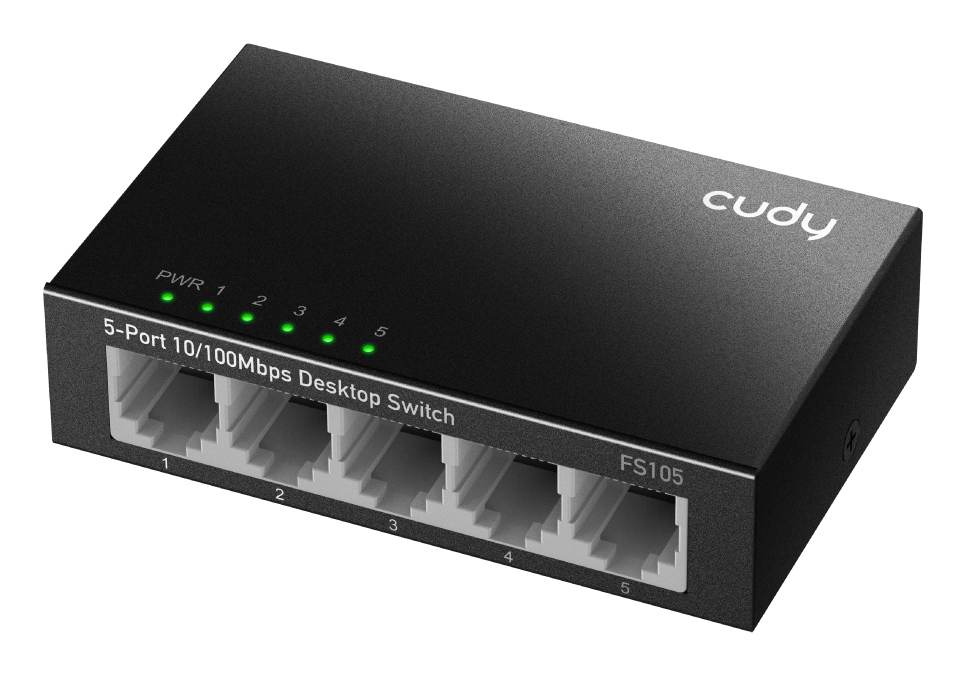

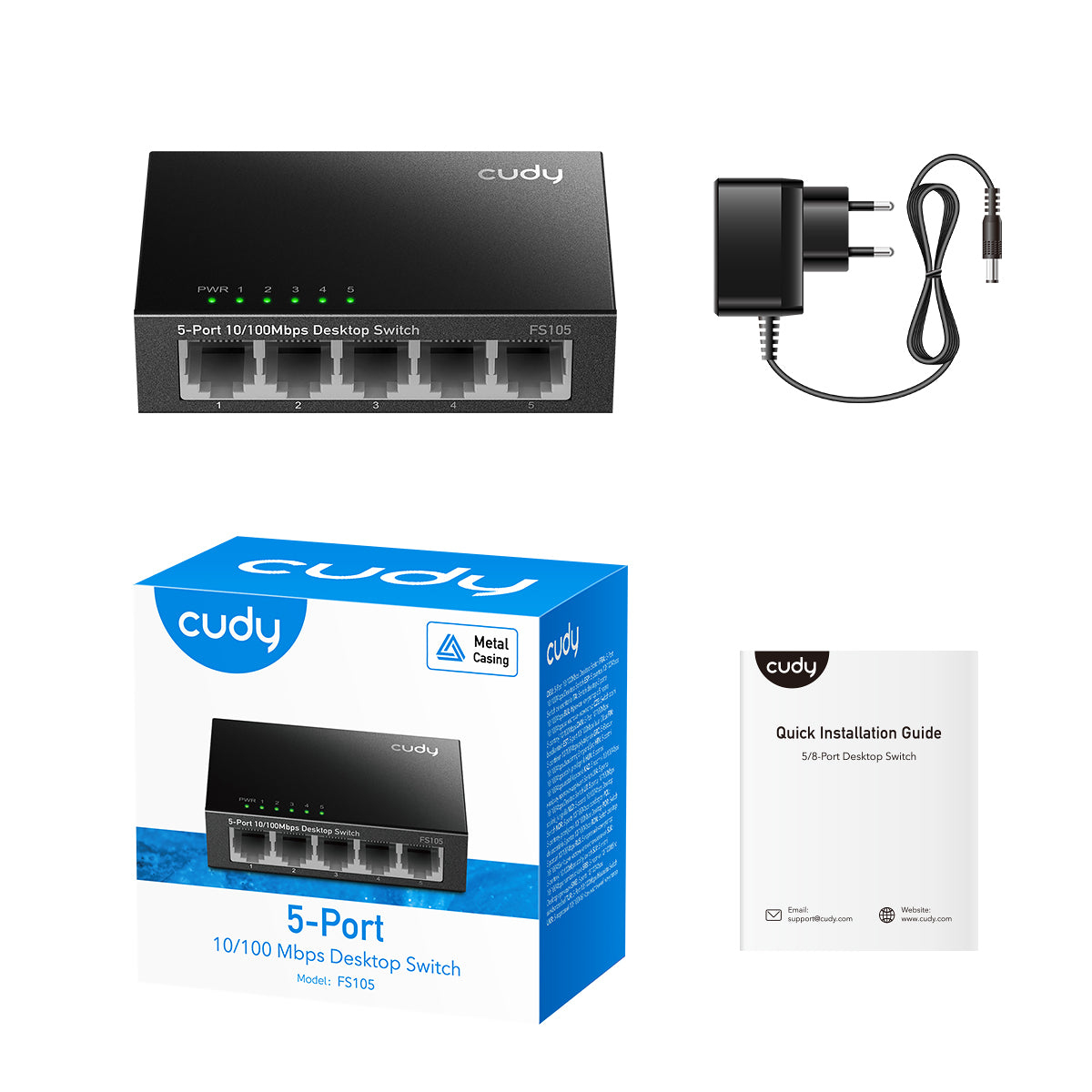

FS105 network switch Unmanaged Fast Ethernet (10/100) Black
Model FS105EAN 6971690793401
38 specifications
- Weight106 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Networking standardsIEEE 802.3i, IEEE 802.3u
- MAC address table512 entries
Overview
- Weight
- 106 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Networking standards
- IEEE 802.3i, IEEE 802.3u
- MAC address table
- 512 entries
- Brand
- Cudy
- Category
- Network Switch
- Model
- FS105
- Part number
- FS105
- EAN / UPC
- 6971690793401
- Also known as
- Cudy FS105 network switch Unmanaged Fast Ethernet (10/100) Black
Specifications
38 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3i, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat5 |
| Ethernet LAN data rates | 10,100 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 512 entries |
| Switching capacity | 1 Gbit/s |
| Forwarding rate | 0.744 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 0.448 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 5 V |
| Input current | 0.55 A |
| Power consumption (max) | 0.9 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86.5 mm |
| Depth | 53 mm |
| Height | 23 mm |
| Weight | 106 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 92 mm |
| Package depth | 88 mm |
| Package height | 57 mm |
| Package weight | 188 g |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
