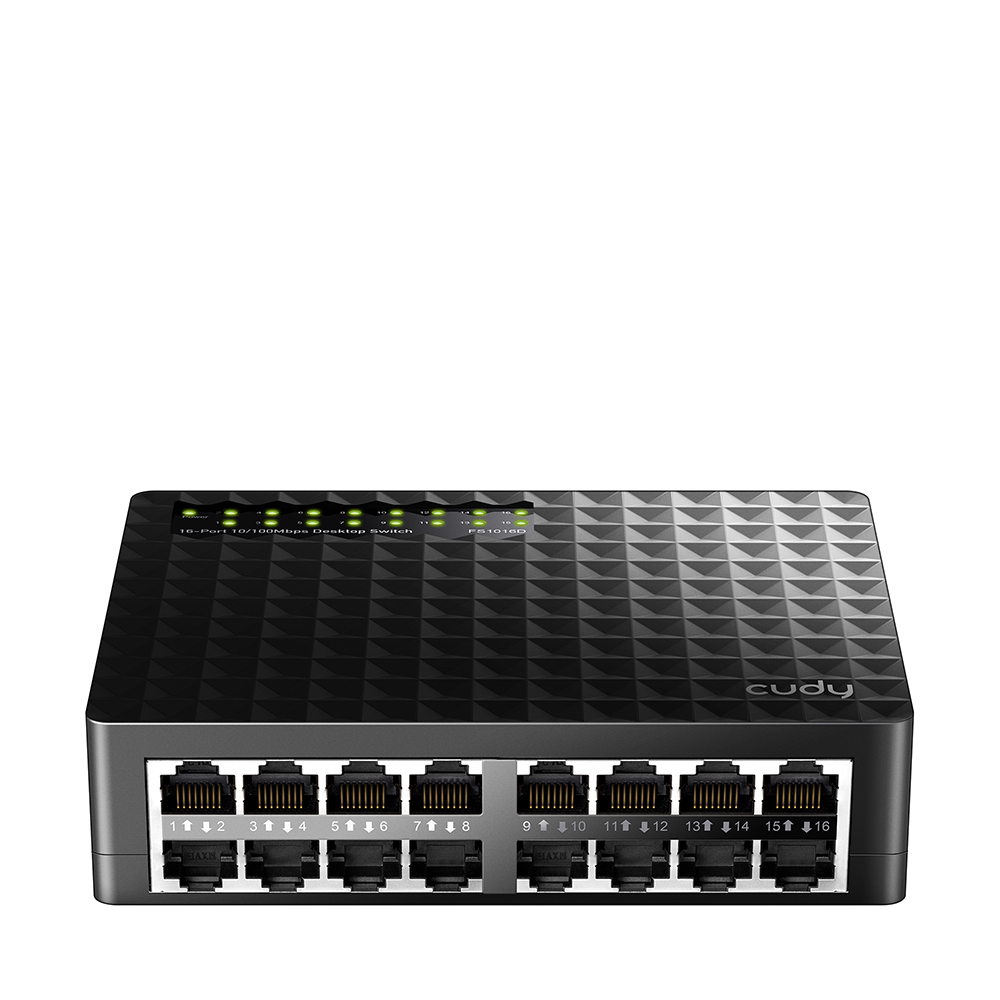

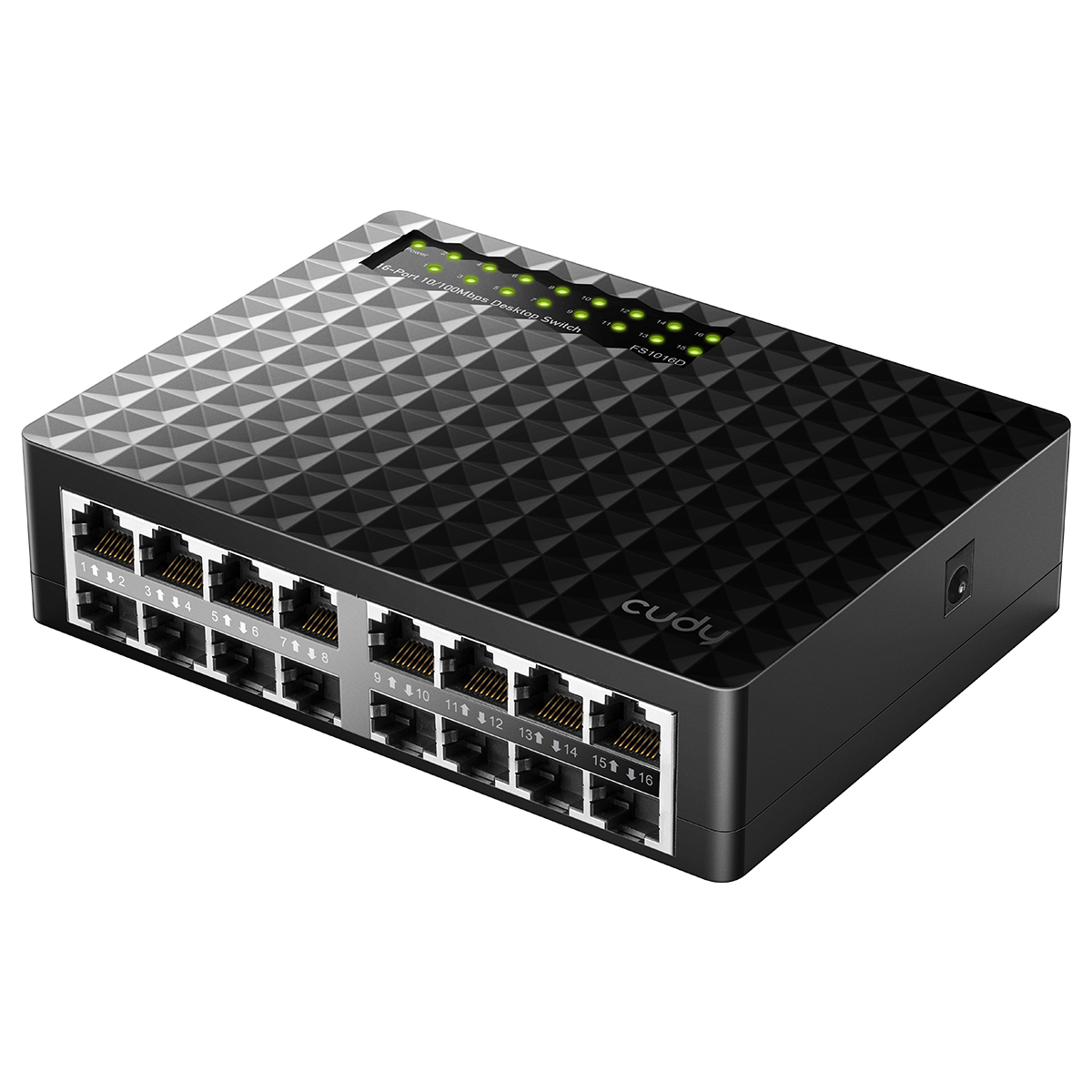

FS1016D network switch Fast Ethernet (10/100) Black
Model FS1016DEAN 6971690792787
27 specifications
- Weight228 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity16
- Copper ethernet cabling technology10BASE-T, 100BASE-TX
- MAC address table2 entries
- Power sourceDC
Overview
- Weight
- 228 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX
- MAC address table
- 2 entries
- Power source
- DC
- Brand
- Cudy
- Category
- Network Switch
- Model
- FS1016D
- Part number
- FS1016D
- EAN / UPC
- 6971690792787
- Also known as
- Cudy FS1016D network switch Fast Ethernet (10/100) Black
Specifications
27 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2 entries |
| Switching capacity | 1.6 Gbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | LAN, Power |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 5 V |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 138 mm |
| Depth | 103 mm |
| Height | 35 mm |
| Weight | 228 g |

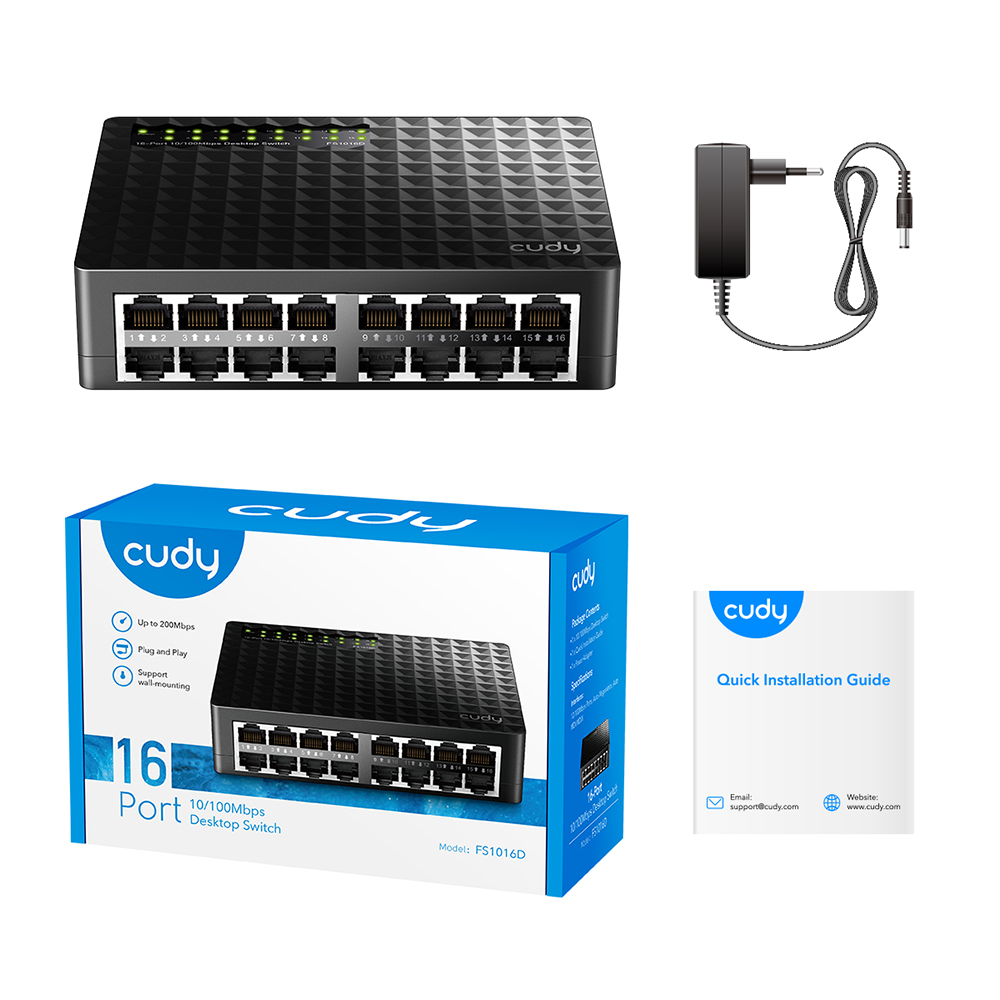

Packaging content
| Specification | Value |
|---|---|
| Cables included | DC |
| Manual | Yes |
