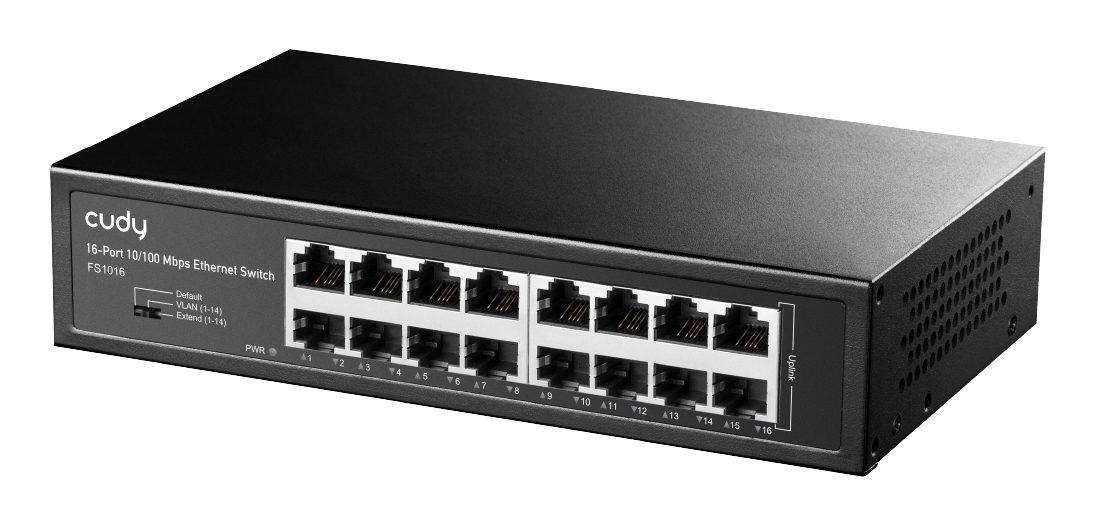

FS1016 network switch Fast Ethernet (10/100) Black
Model FS1016EAN 6971690793890
42 specifications
- Weight600 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity16
- Copper ethernet cabling technology10BASE-T, 100BASE-TX
- MAC address table8192 entries
- Power sourceAC
Overview
- Weight
- 600 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX
- MAC address table
- 8192 entries
- Power source
- AC
- Brand
- Cudy
- Category
- Network Switch
- Model
- FS1016
- Part number
- FS1016
- EAN / UPC
- 6971690793890
- Also known as
- Cudy FS1016 network switch Fast Ethernet (10/100) Black
Specifications
42 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |

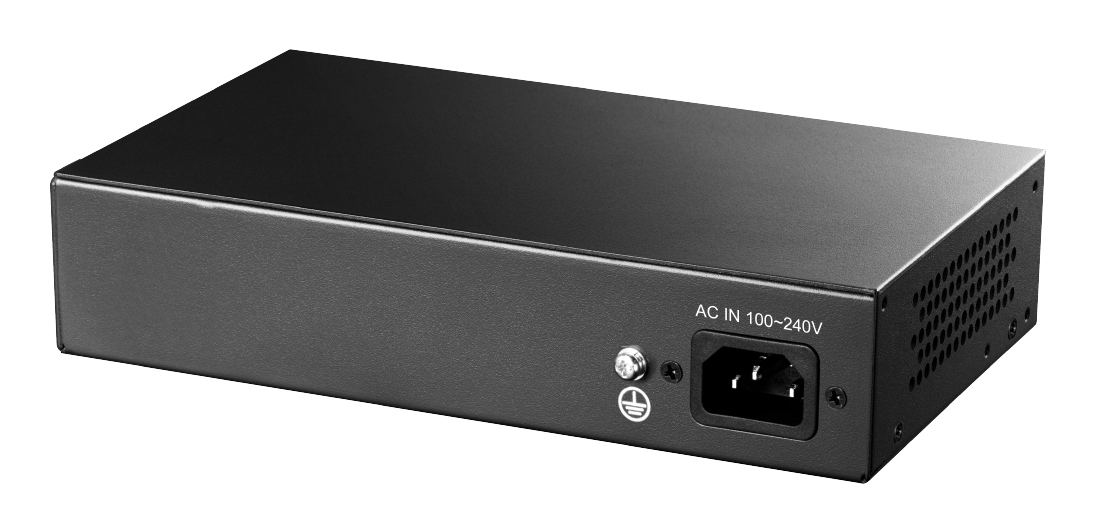

| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat5, Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 3.2 Gbit/s |
| Forwarding rate | 2.38 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 2000 |
| Packet buffer memory | 0.25 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | LAN, Power |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 90 - 260 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 2 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 118 mm |
| Height | 44 mm |
| Weight | 600 g |

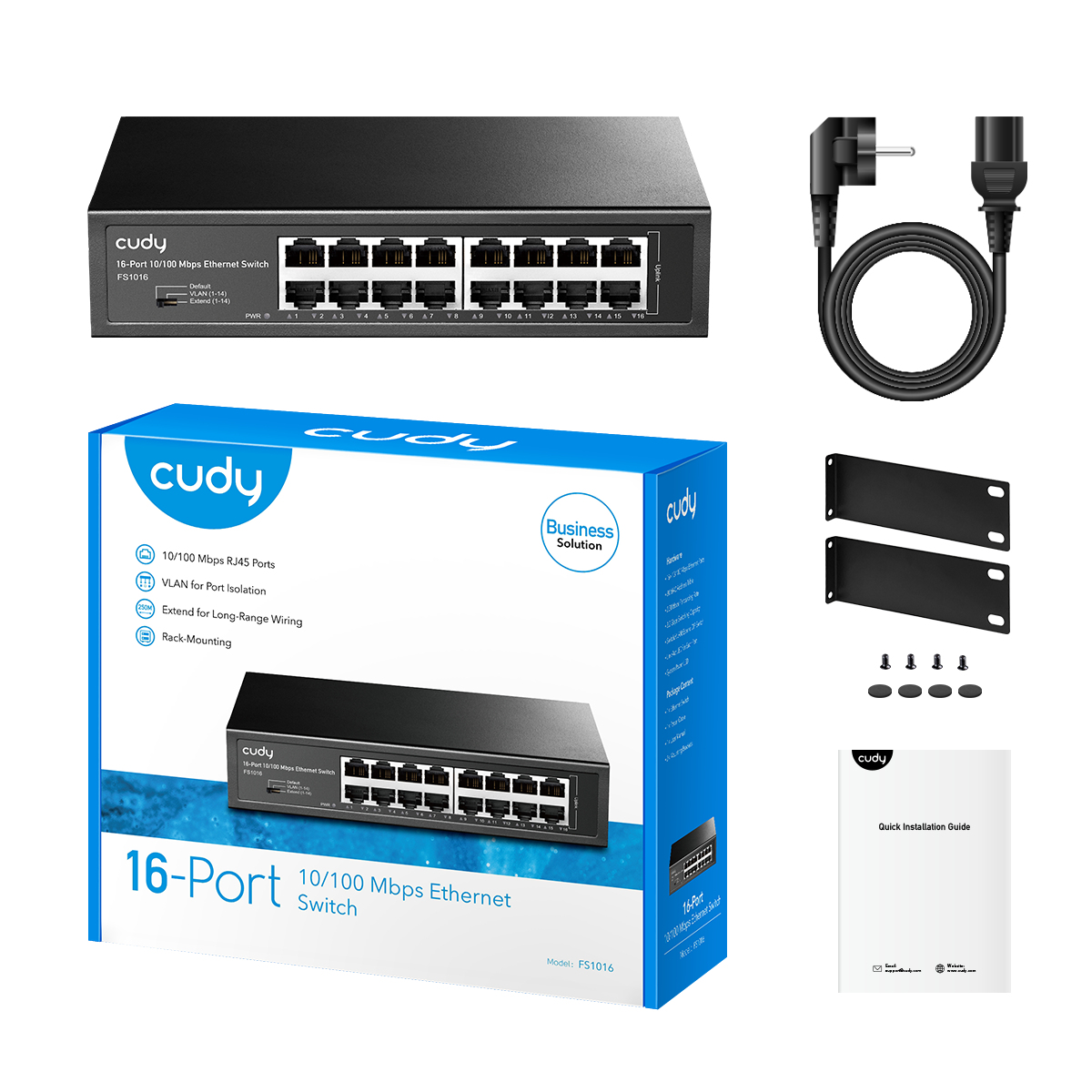

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 202 mm |
| Package height | 78 mm |
| Package weight | 1.05 kg |
