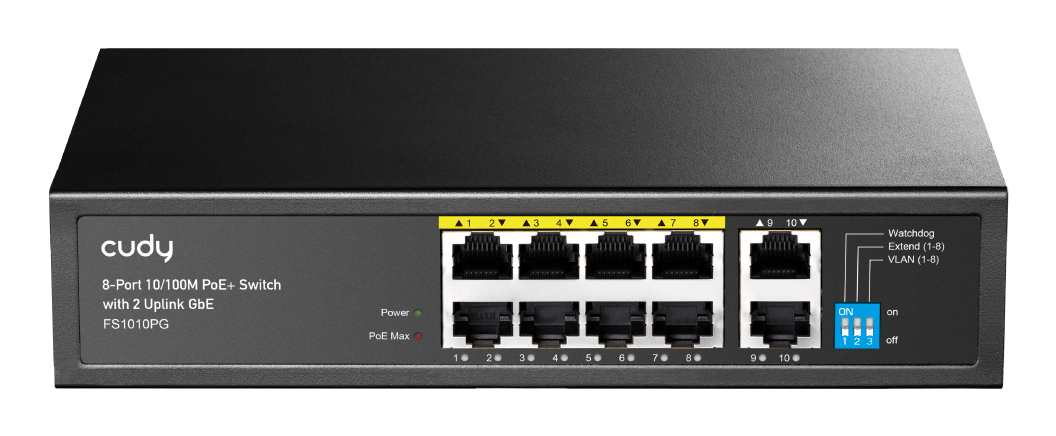

FS1010PG network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model FS1010PGEAN 6971690791254
54 specifications
- Weight636 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table2048 entries
Overview
- Weight
- 636 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table
- 2048 entries
- Brand
- Cudy
- Category
- Network Switch
- Model
- FS1010PG
- Part number
- FS1010PG
- EAN / UPC
- 6971690791254
- Also known as
- Cudy FS1010PG network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
54 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Uplink ports quantity | 2 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 5.6 Gbit/s |
| Forwarding rate | 4.166 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 0.25 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
Performance
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 50000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 5 W |
| Power consumption (max) | 120 W |
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 150 mm |
| Height | 44 mm |
| Weight | 636 g |

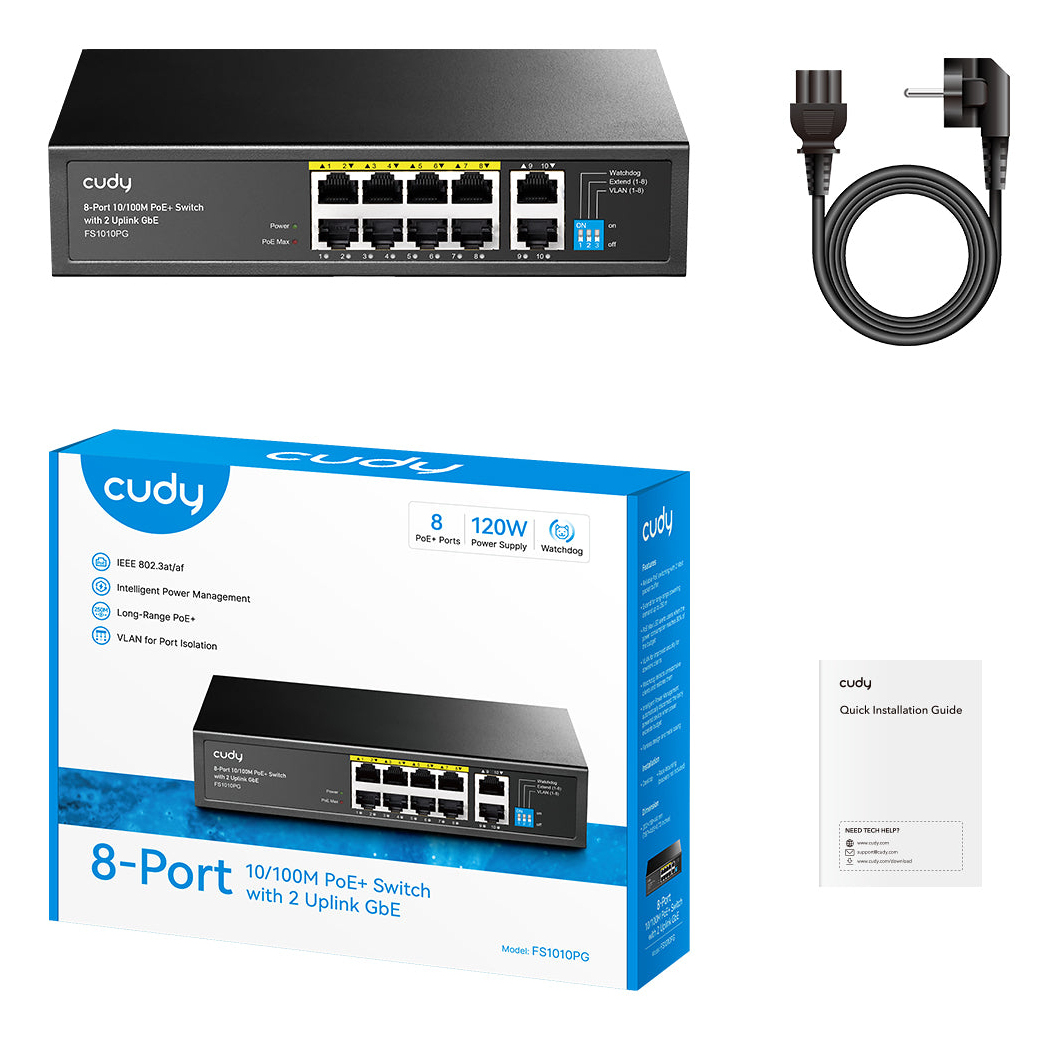

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Packaging data
| Specification | Value |
|---|---|
| Package width | 249 mm |
| Package depth | 207 mm |
| Package height | 60 mm |
| Package weight | 1.04 kg |
Technical details
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 16 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
