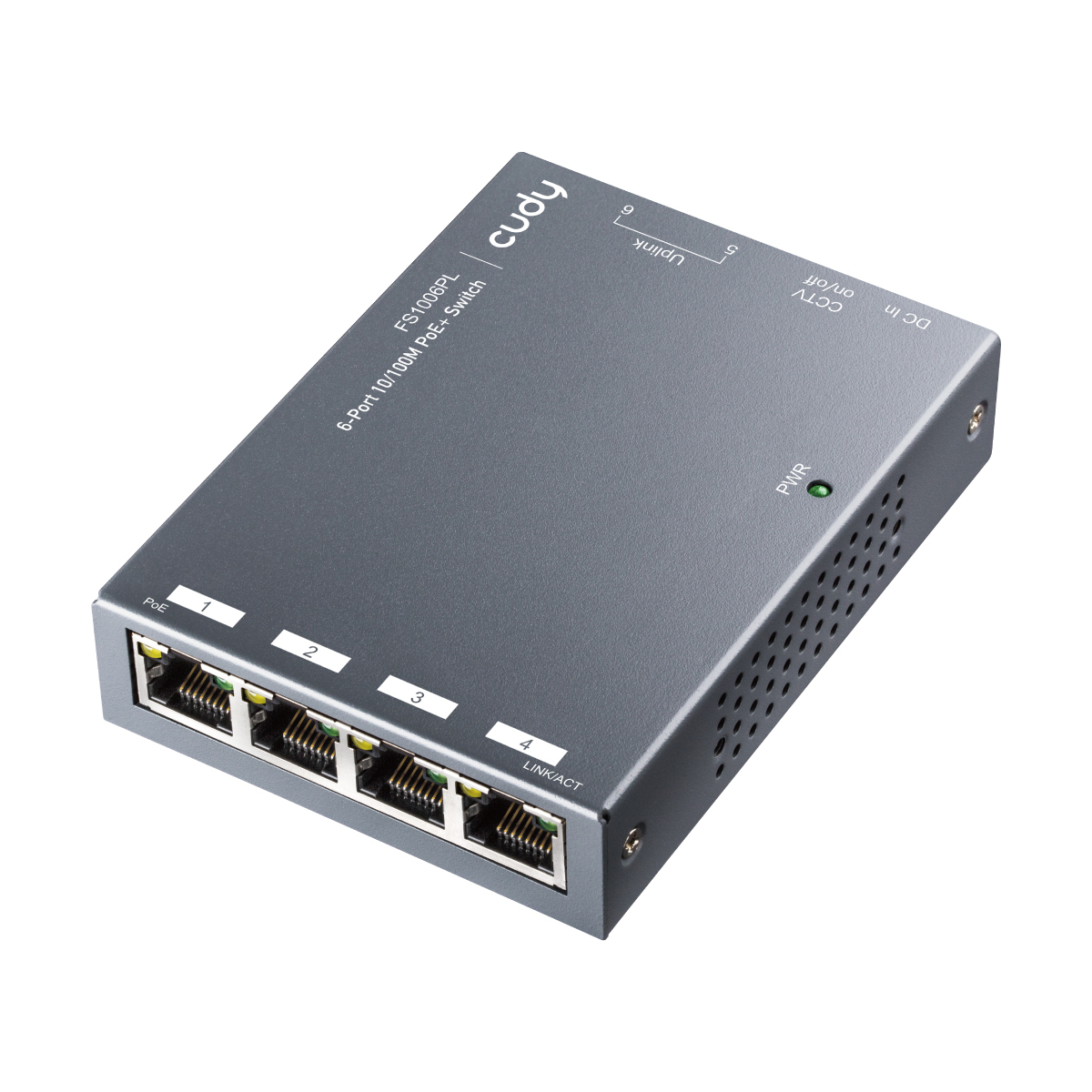

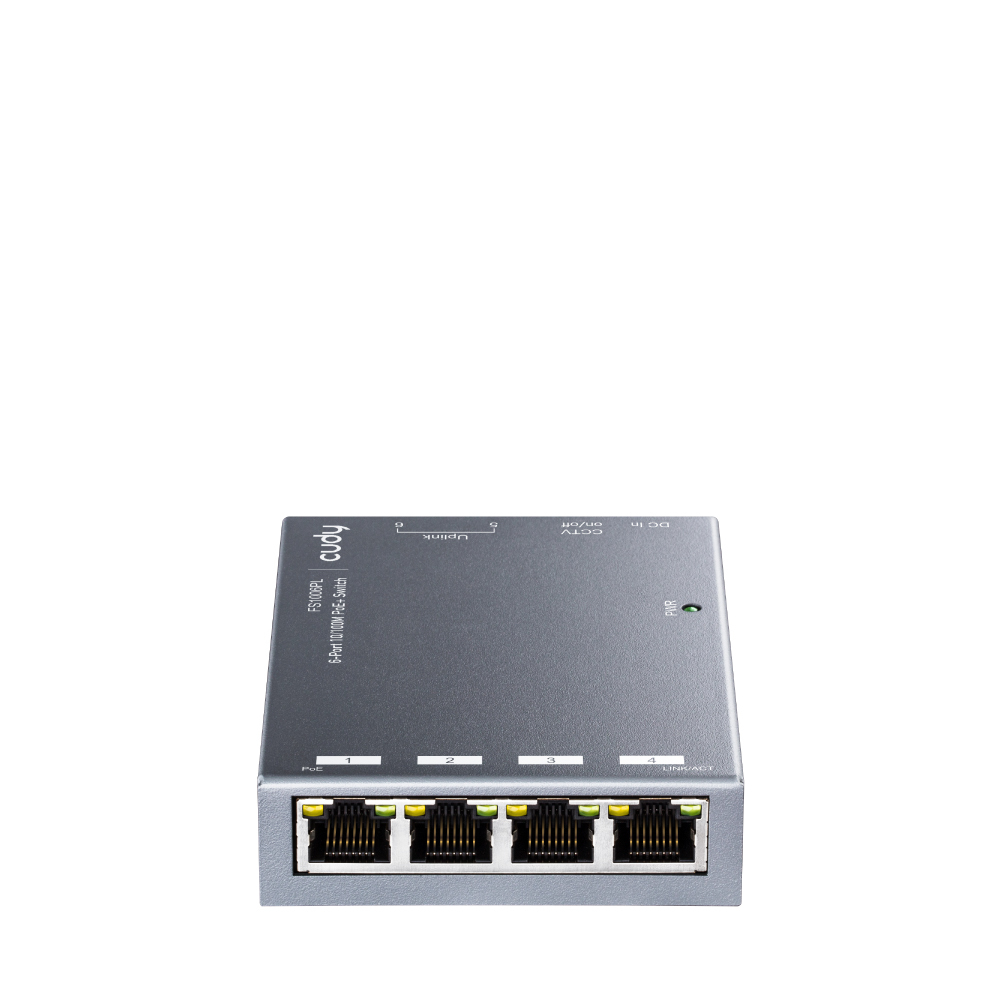

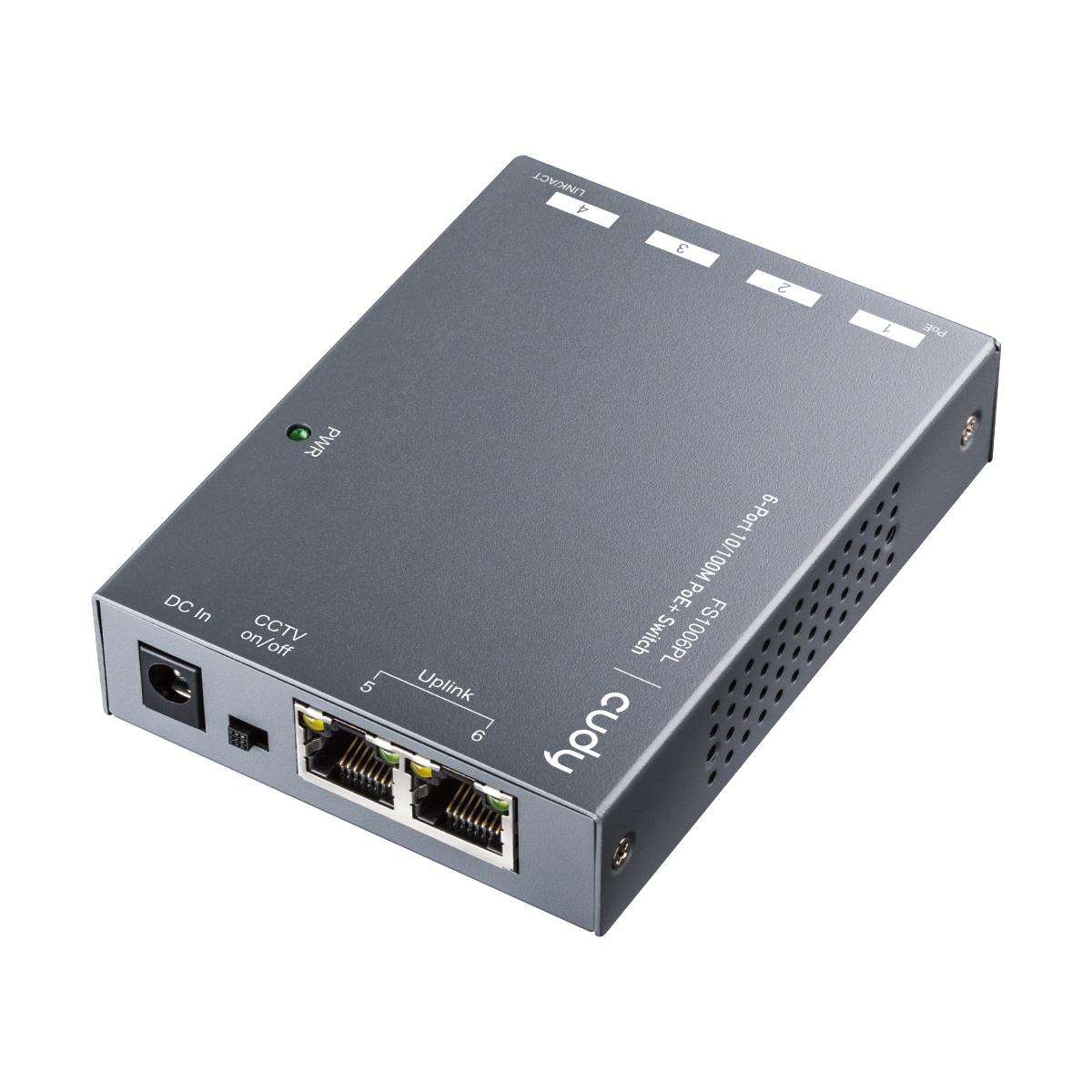

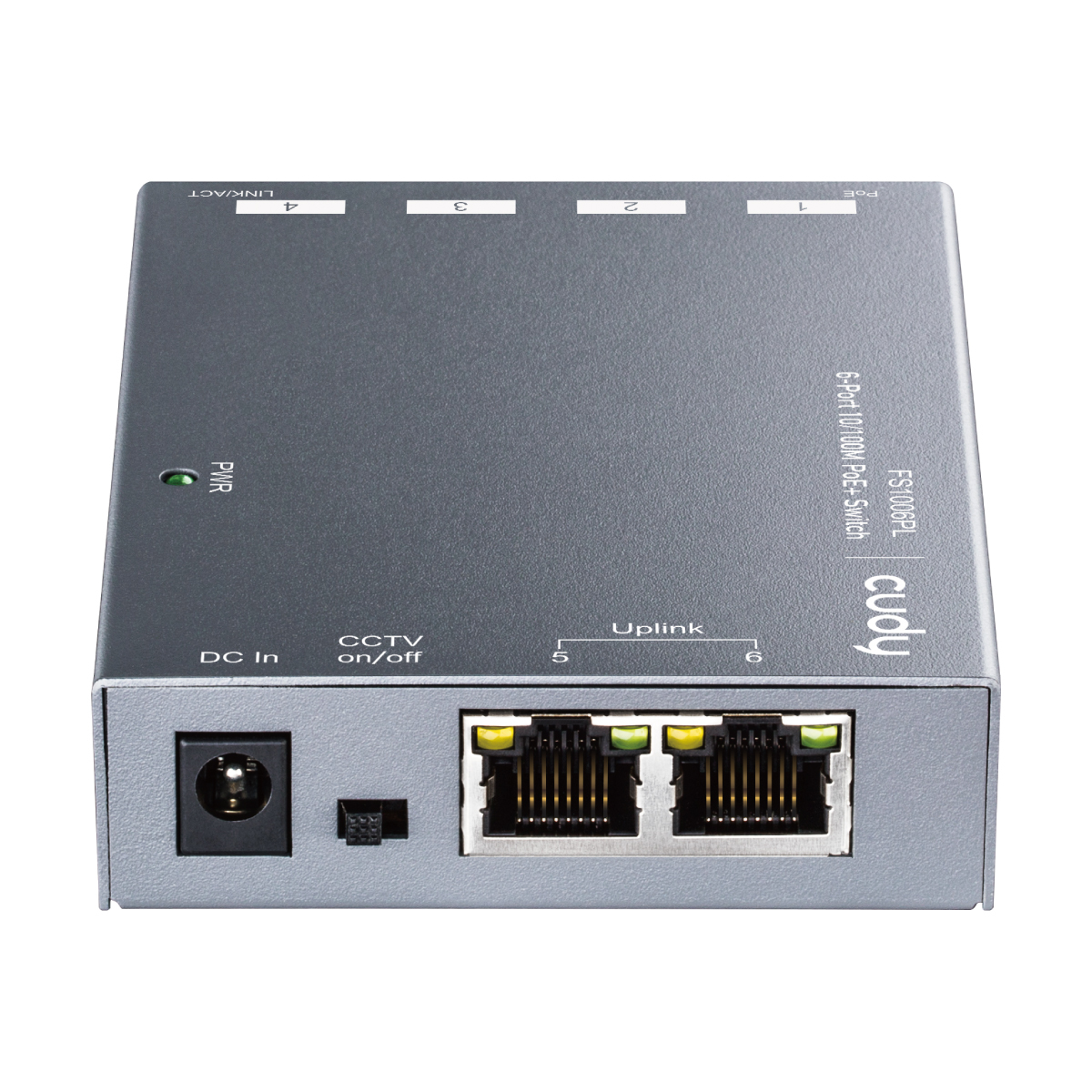

FS1006PL network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Grey
Model FS1006PLEAN 6971690791148
33 specifications
- ColourGrey
- Basic switching RJ-45 Ethernet ports quantity6
- Ethernet LAN data rates10,100 Mbit/s
- Transmission distance (max)0.25 km
- MAC address table1000 entries
- Plug and PlayYes
Overview
- Colour
- Grey
- Basic switching RJ-45 Ethernet ports quantity
- 6
- Ethernet LAN data rates
- 10,100 Mbit/s
- Transmission distance (max)
- 0.25 km
- MAC address table
- 1000 entries
- Plug and Play
- Yes
- Brand
- Cudy
- Category
- Network Switch
- Model
- FS1006PL
- Part number
- FS1006PL
- EAN / UPC
- 6971690791148
- Also known as
- Cudy FS1006PL network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Grey
Specifications
33 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Uplink ports quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| VLAN support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Transmission distance (max) | 0.25 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
Performance
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 48 - 57 V |
| Power consumption (typical) | 5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
Other features
| Specification | Value |
|---|---|
| Bandwidth | 1.2 Gbit/s |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 102 mm |
| Depth | 75 mm |
| Height | 22 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, DC |
