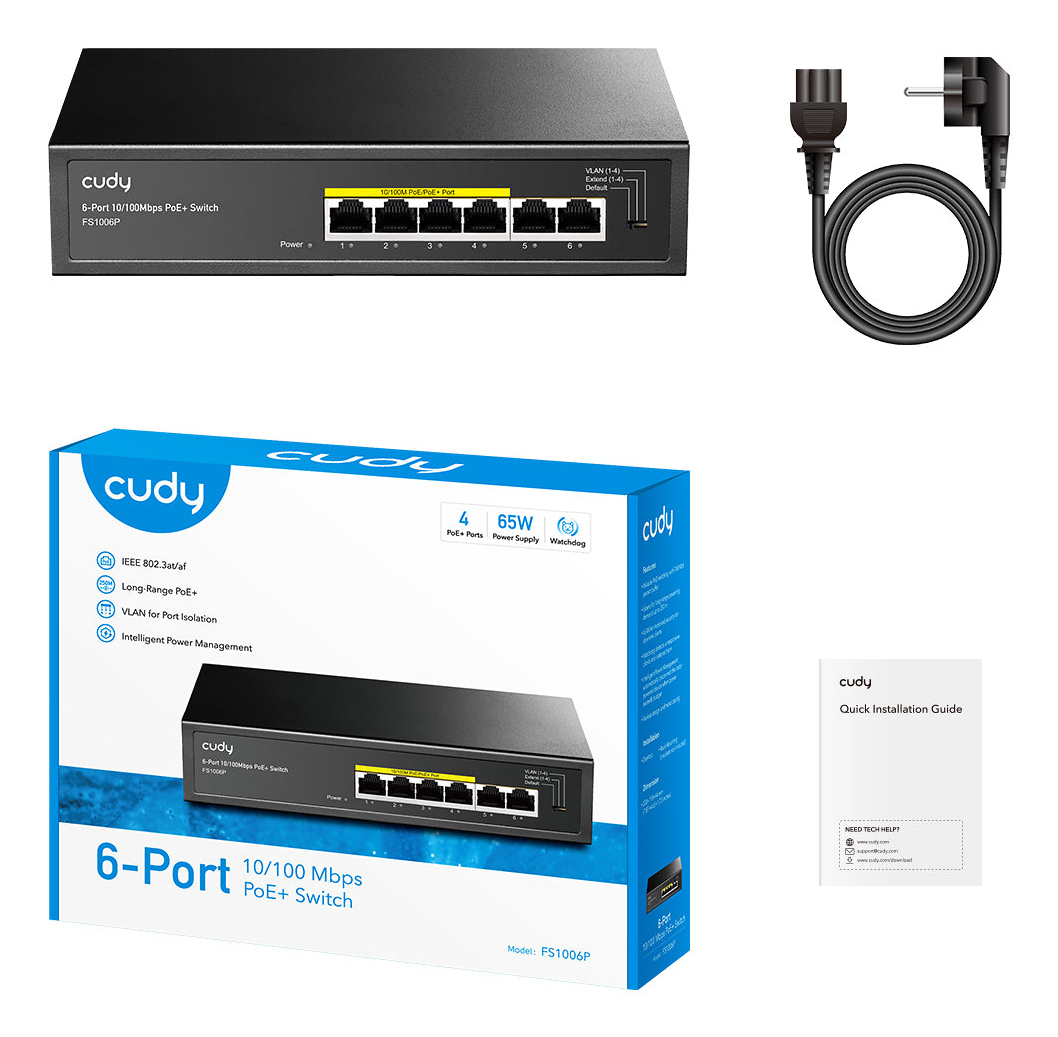

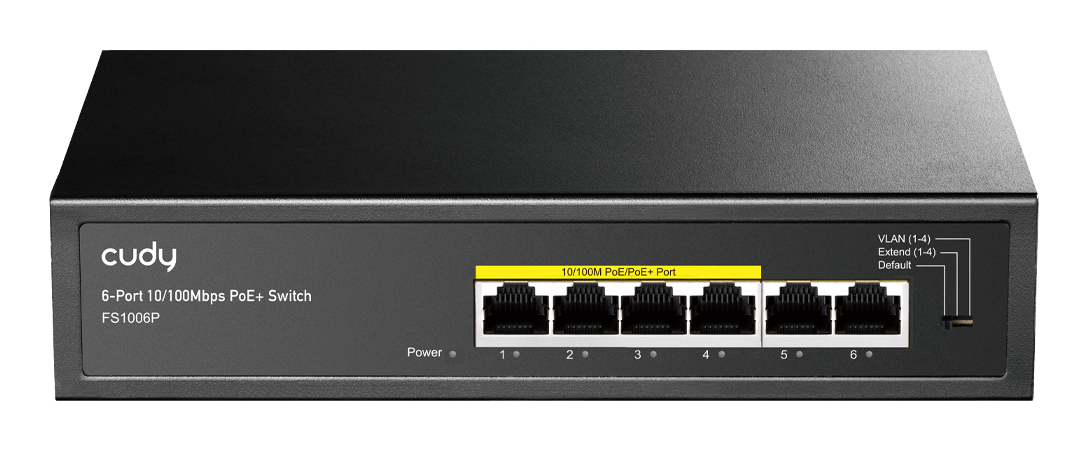

FS1006P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model FS1006PEAN 6971690790264
45 specifications
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity6
- Copper ethernet cabling technology10BASE-T, 100BASE-TX
- MAC address table1024 entries
- Plug and PlayYes
Overview
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 6
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX
- MAC address table
- 1024 entries
- Plug and Play
- Yes
- Brand
- Cudy
- Category
- Network Switch
- Model
- FS1006P
- Part number
- FS1006P
- EAN / UPC
- 6971690790264
- Also known as
- Cudy FS1006P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
45 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Uplink ports quantity | 2 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3i |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat5, Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Switching capacity | 1.2 Gbit/s |
| Forwarding rate | 0.8928 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 0.448 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 1 W |
| Power consumption (max) | 65 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
Other features
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 118 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 245 mm |
| Package depth | 190 mm |
| Package height | 60 mm |
Technical details
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 16 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
