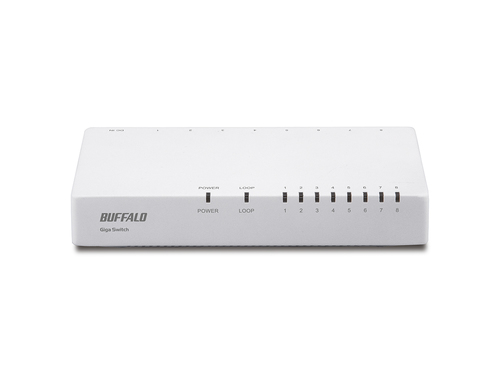

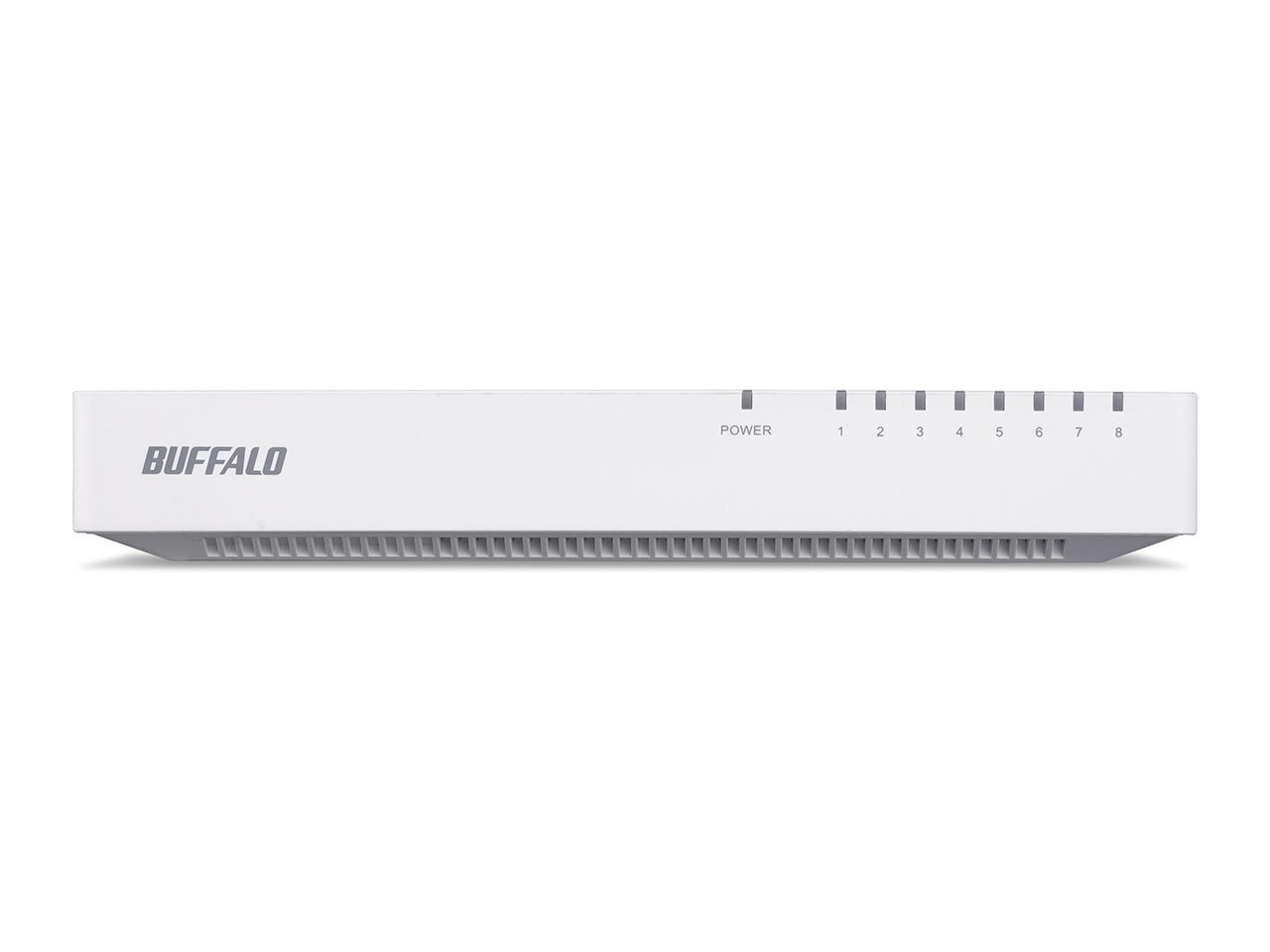

Buffalo LSW4-TX-8NP/WH network switch Fast Ethernet (10/100) White
Model LSW4-TX-8NP/WHEAN 4981254022207
34 specifications
- Weight260 g
- ColourWhite
- Basic switching RJ-45 Ethernet ports quantity8
- Copper ethernet cabling technology10GBASE-T, 100BASE-TX
- Transmission distance (max)0.1 km
- MAC address table2048 entries
Overview
- Weight
- 260 g
- Colour
- White
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Copper ethernet cabling technology
- 10GBASE-T, 100BASE-TX
- Transmission distance (max)
- 0.1 km
- MAC address table
- 2048 entries
- Brand
- Buffalo
- Category
- Network Switch
- Model
- LSW4-TX-8NP/WH
- Part number
- LSW4-TX-8NP/WH
- EAN / UPC
- 4981254022207
- Also known as
- Buffalo LSW4-TX-8NP/WH network switch Fast Ethernet (10/100) White
Specifications
34 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat5 |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Transmission distance (max) | 0.1 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 1600 Gbit/s |
| Forwarding rate | 14881 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet forwarding rate (10 Mbps) | 14881 pps |
| Packet forwarding rate (100 Mbps) | 148810 pps |
Security
| Specification | Value |
|---|---|
| BPDU filtering/protection | Yes |
| Packet filtering | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Performance
| Specification | Value |
|---|---|
| Buffer size | 96 KB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 1.8 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 186 mm |
| Depth | 97 mm |
| Height | 29 mm |
| Weight | 260 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Rubber feet | Yes |
