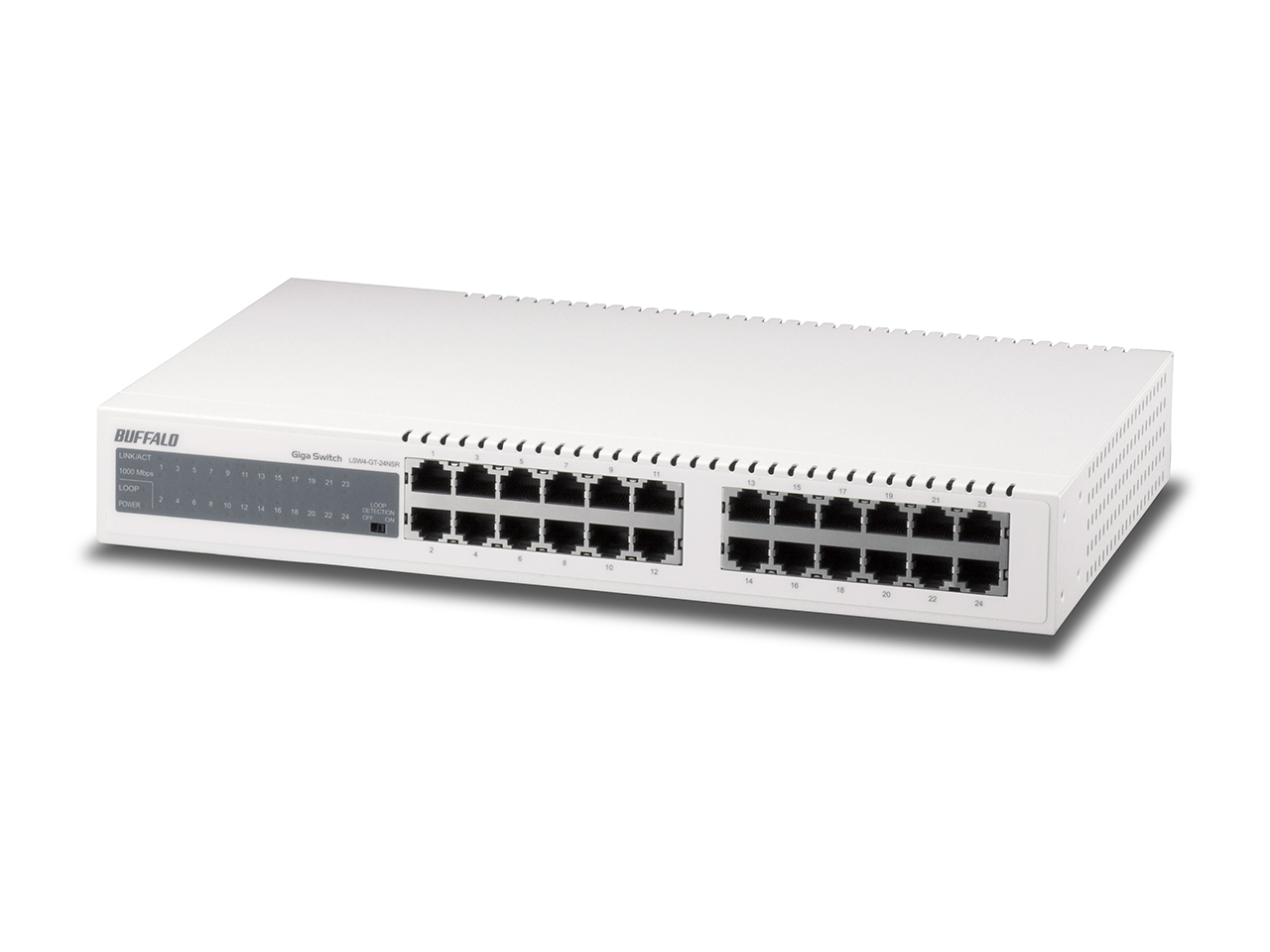

Buffalo LSW4-GT-24NSR network switch Gigabit Ethernet (10/100/1000) 19U White
Model LSW4-GT-24NSREAN 4981254022887
31 specifications
- Type19U
- Weight16 kg
- ColourWhite
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- Transmission distance (max)0.1 km
Overview
- Type
- 19U
- Weight
- 16 kg
- Colour
- White
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Transmission distance (max)
- 0.1 km
- Brand
- Buffalo
- Category
- Network Switch
- Model
- LSW4-GT-24NSR
- Part number
- LSW4-GT-24NSR
- EAN / UPC
- 4981254022887
- Also known as
- Buffalo LSW4-GT-24NSR network switch Gigabit Ethernet (10/100/1000) 19U White
Specifications
31 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 100BASE-T, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Transmission distance (max) | 0.1 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8190 entries |
| Switching capacity | 48000 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet forwarding rate (1 Gbps) | 1488095 pps |
| Packet forwarding rate (10 Mbps) | 14881 pps |
| Packet forwarding rate (100 Mbps) | 148810 pps |
Security
| Specification | Value |
|---|---|
| BPDU filtering/protection | Yes |
| Packet filtering | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 19U |
| Product colour | White |
Performance
| Specification | Value |
|---|---|
| Buffer size | 512 KB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 13.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 180 mm |
| Height | 43 mm |
| Weight | 16 kg |
