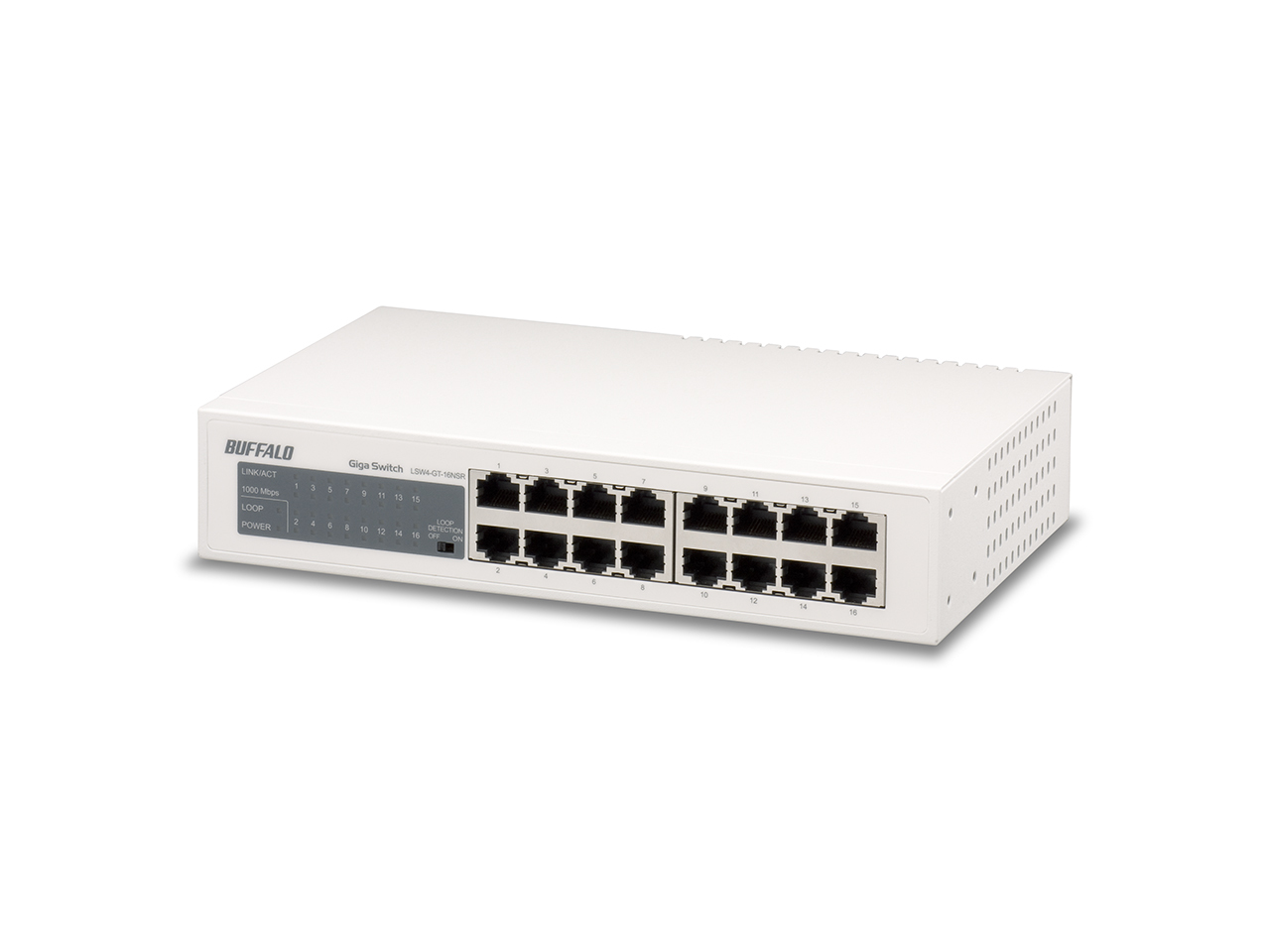

Buffalo LSW4-GT-16NSR network switch Gigabit Ethernet (10/100/1000) 19U White
Model LSW4-GT-16NSREAN 4981254022894
37 specifications
- Type19U
- Weight16 kg
- ColourWhite
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- Transmission distance (max)0.1 km
Overview
- Type
- 19U
- Weight
- 16 kg
- Colour
- White
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- Transmission distance (max)
- 0.1 km
- Brand
- Buffalo
- Category
- Network Switch
- Model
- LSW4-GT-16NSR
- Part number
- LSW4-GT-16NSR
- EAN / UPC
- 4981254022894
- Also known as
- Buffalo LSW4-GT-16NSR network switch Gigabit Ethernet (10/100/1000) 19U White
Specifications
37 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat5, Cat5e |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Transmission distance (max) | 0.1 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8190 entries |
| Switching capacity | 32000 Gbit/s |
| Forwarding rate | 100 Mpps |
| Jumbo frames support | Yes |
| Packet forwarding rate (1 Gbps) | 1488095 pps |
| Packet forwarding rate (10 Mbps) | 14881 pps |
| Packet forwarding rate (100 Mbps) | 148810 pps |
Security
| Specification | Value |
|---|---|
| BPDU filtering/protection | Yes |
| Packet filtering | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 19U |
| Product colour | White |
Performance
| Specification | Value |
|---|---|
| Buffer size | 512 KB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 9.1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 215 mm |
| Depth | 130 mm |
| Height | 43 mm |
| Weight | 16 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Rubber feet | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
