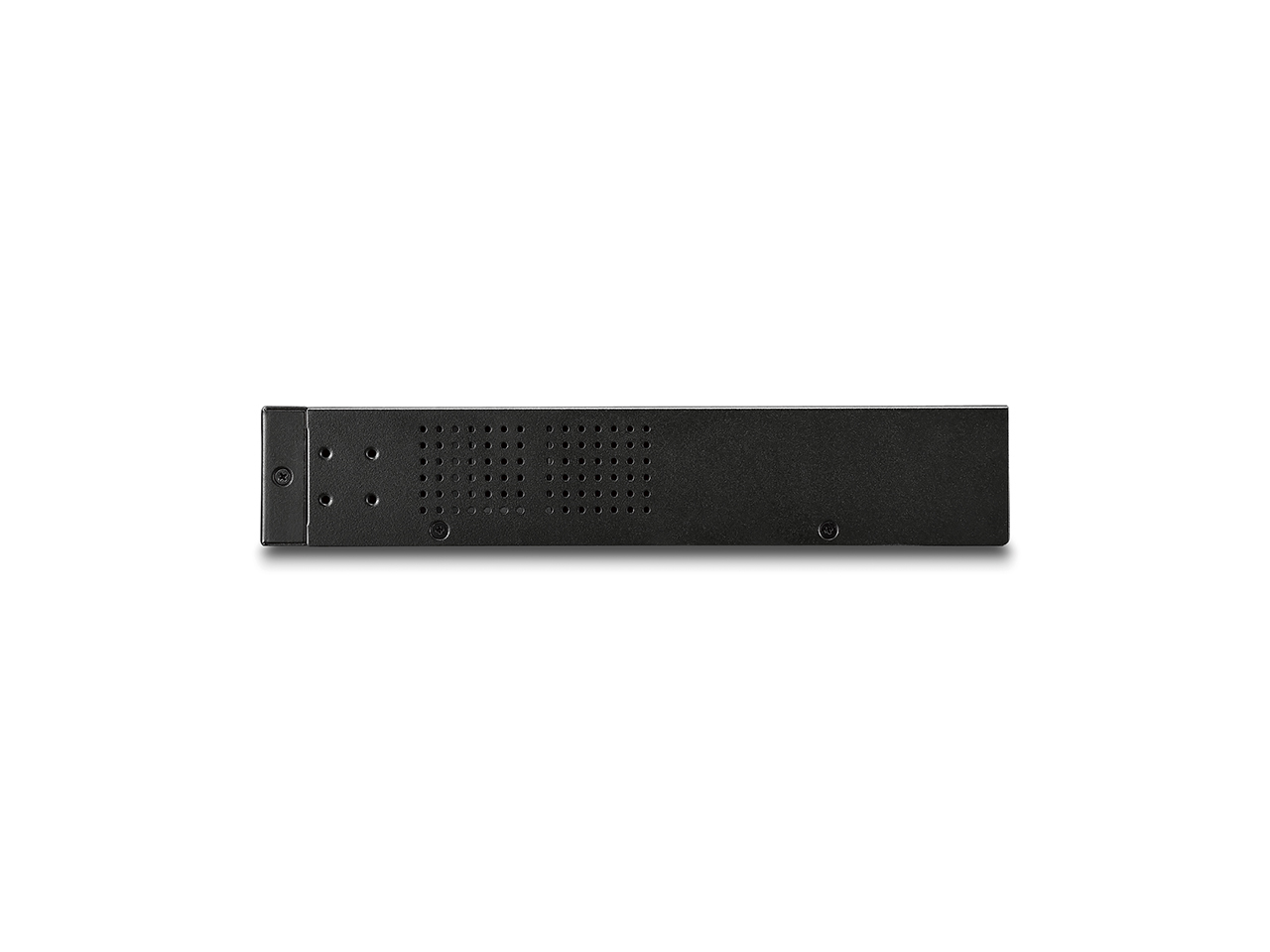

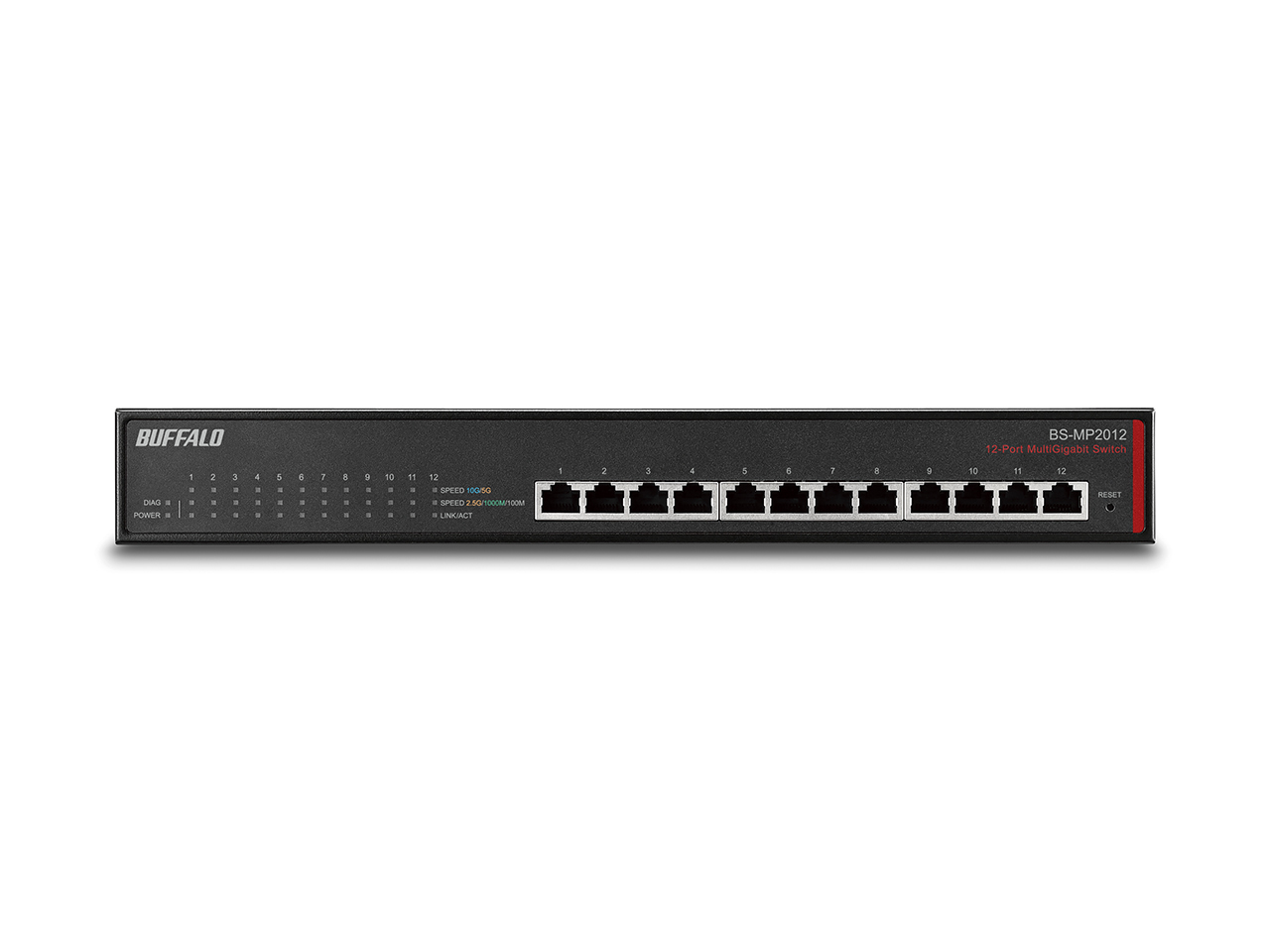

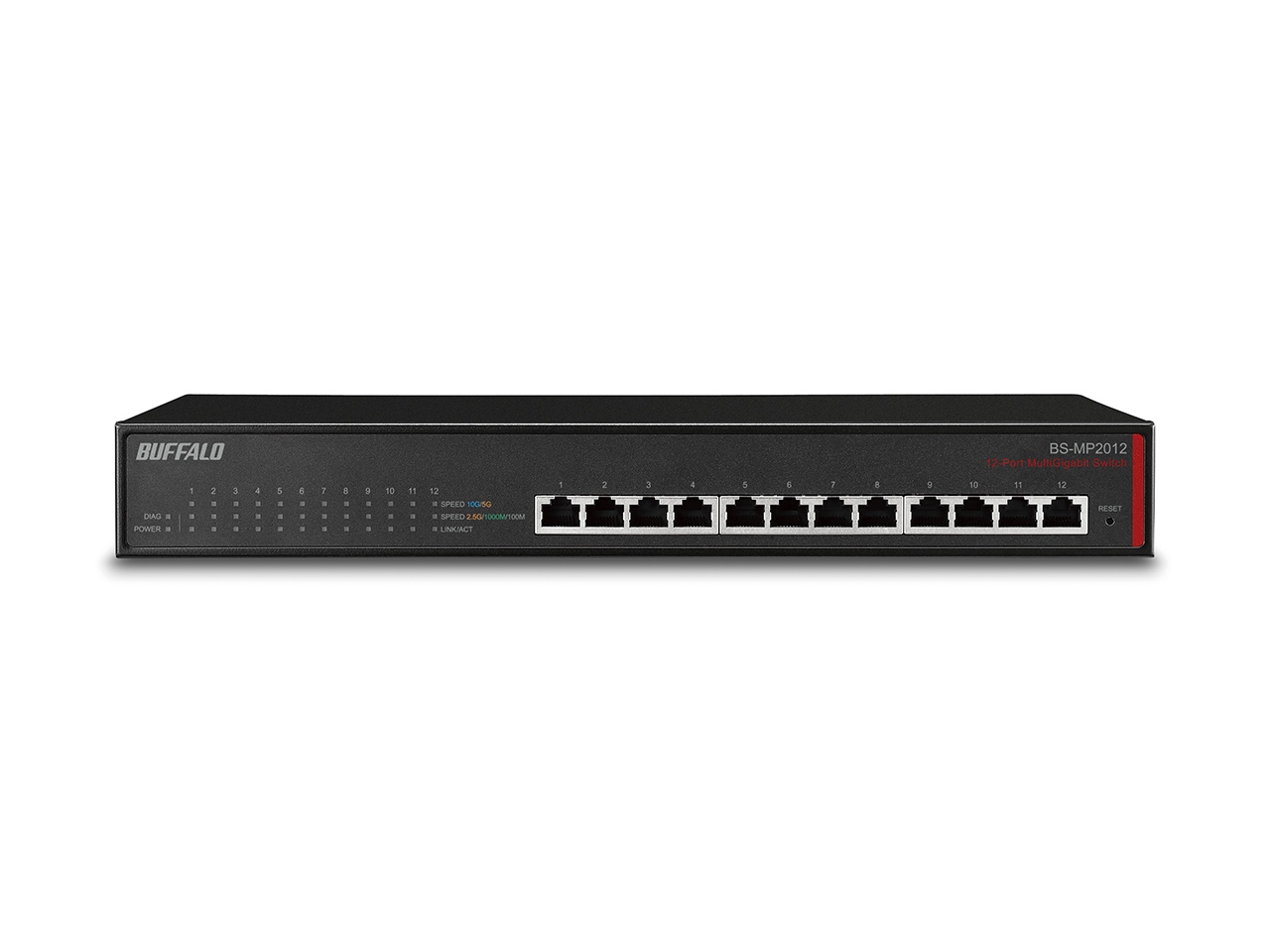

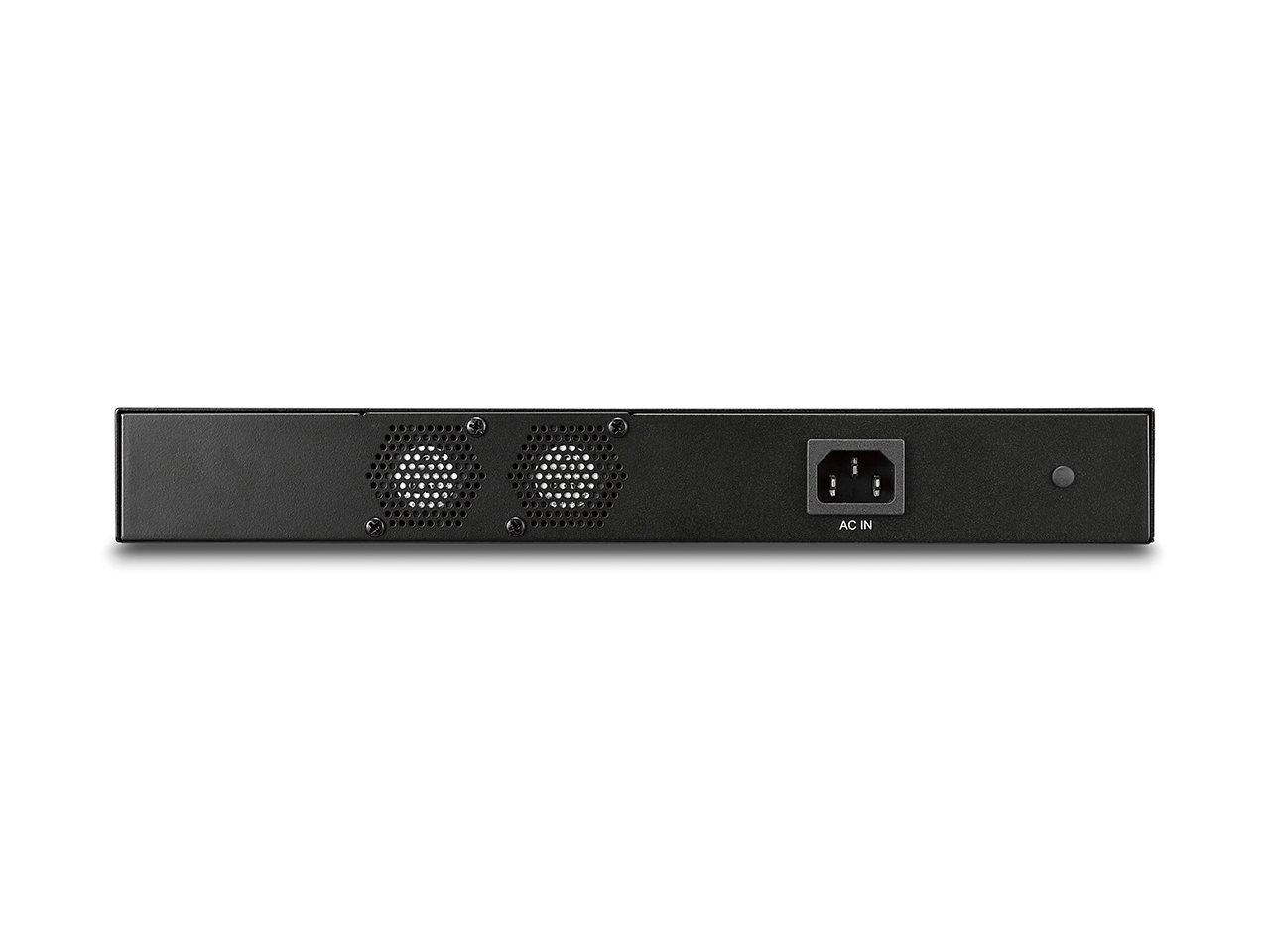

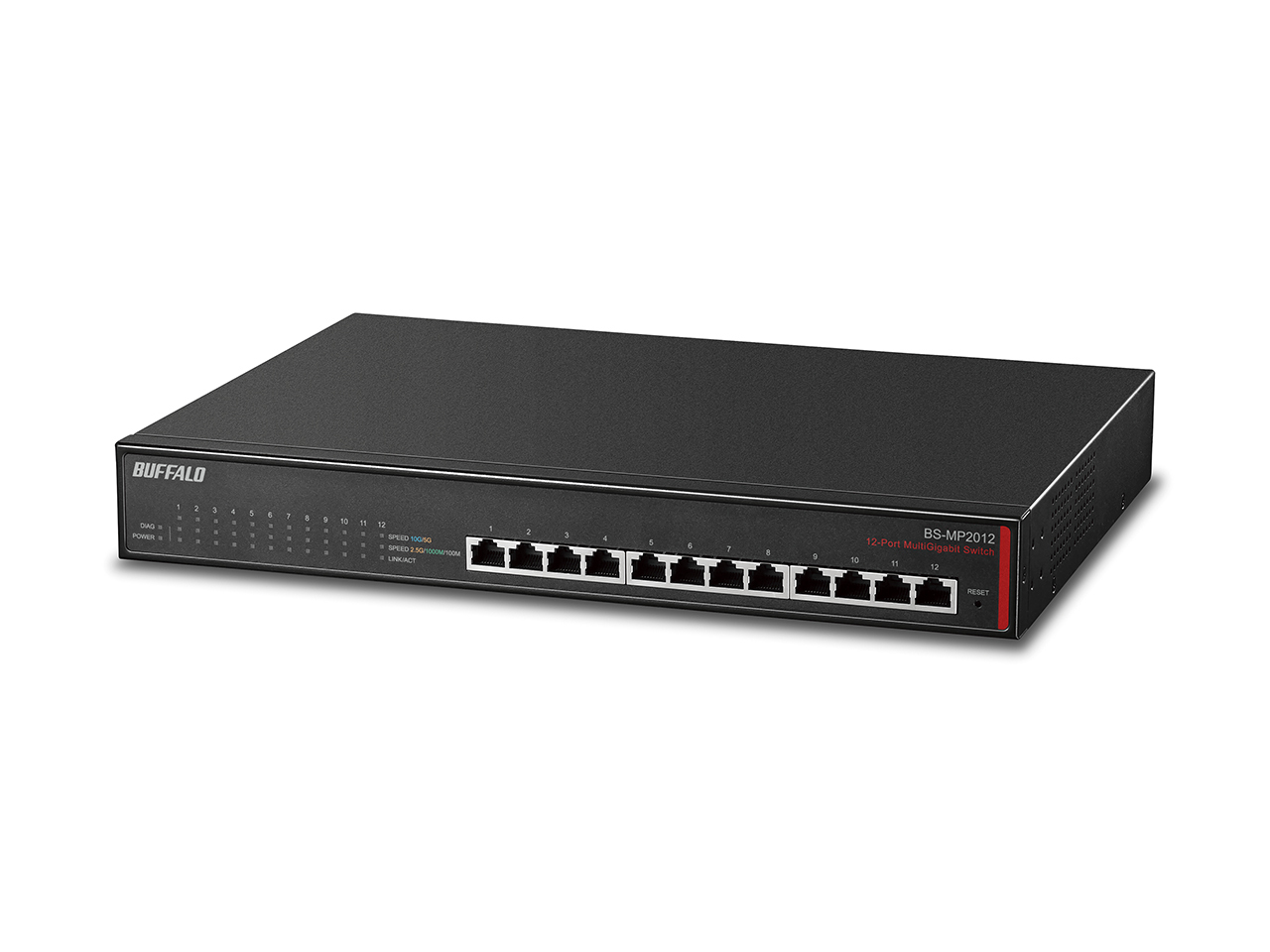

Buffalo BS-MP2012 network switch Managed L2
10G Ethernet (100/1000/10000) 19U Black
Model BS-MP2012Part no. BS-MP2012-EUEAN 4058154222324
40 specifications
- Speed120000 Mbit/s
- Type19U
- Weight2.57 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
Overview
- Speed
- 120000 Mbit/s
- Type
- 19U
- Weight
- 2.57 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- Brand
- Buffalo
- Category
- Network Switch
- Model
- BS-MP2012
- Part numbers
- BS-MP2012-EU, BS-MP2012
- EAN / UPC
- 4058154222324, 747464132686, 4981254041123, 4981254041161
- Also known as
- Buffalo BS-MP2012 network switch Managed L2 10G Ethernet (100/1000/10000) 19U Black
Specifications
40 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e, Cat6a |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1600 entries |
| Latency (10 Gbps) | 10 µs |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 19U |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Activity, Link, Power, Speed |
Performance
| Specification | Value |
|---|---|
| Buffer size | 2000 KB |
| Maximum data transfer rate | 120000 Mbit/s |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 42 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 230 mm |
| Height | 44 mm |
| Weight | 2.57 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Rack mount kit | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | VCCI A, FCC / IC A, UL, CE, CB |
