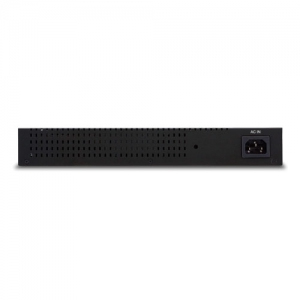

Buffalo BS-GU2024 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Model BS-GU2024EAN 747464129853
43 specifications
- Speed1000 Mbit/s
- Weight1.6 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Speed
- 1000 Mbit/s
- Weight
- 1.6 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- Buffalo
- Category
- Network Switch
- Model
- BS-GU2024
- Part number
- BS-GU2024
- EAN / UPC
- 747464129853, 4981254022849, 4981254047705, 7474641298530
- Also known as
- Buffalo BS-GU2024 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Specifications
43 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat5, Cat5e |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8190 entries |
| Switching capacity | 48 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1488095 pps |
| Packet forwarding rate (10 Mbps) | 14881 pps |
| Packet forwarding rate (100 Mbps) | 148810 pps |
Security
| Specification | Value |
|---|---|
| Loop protection | Yes |
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 512 KB |
| Maximum data transfer rate | 1000 Mbit/s |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 13.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 300 mm |
| Height | 43 mm |
| Weight | 1.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Rubber feet | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | VCCI A, UL60950-1, FCC A, IC A, VCCI A |
