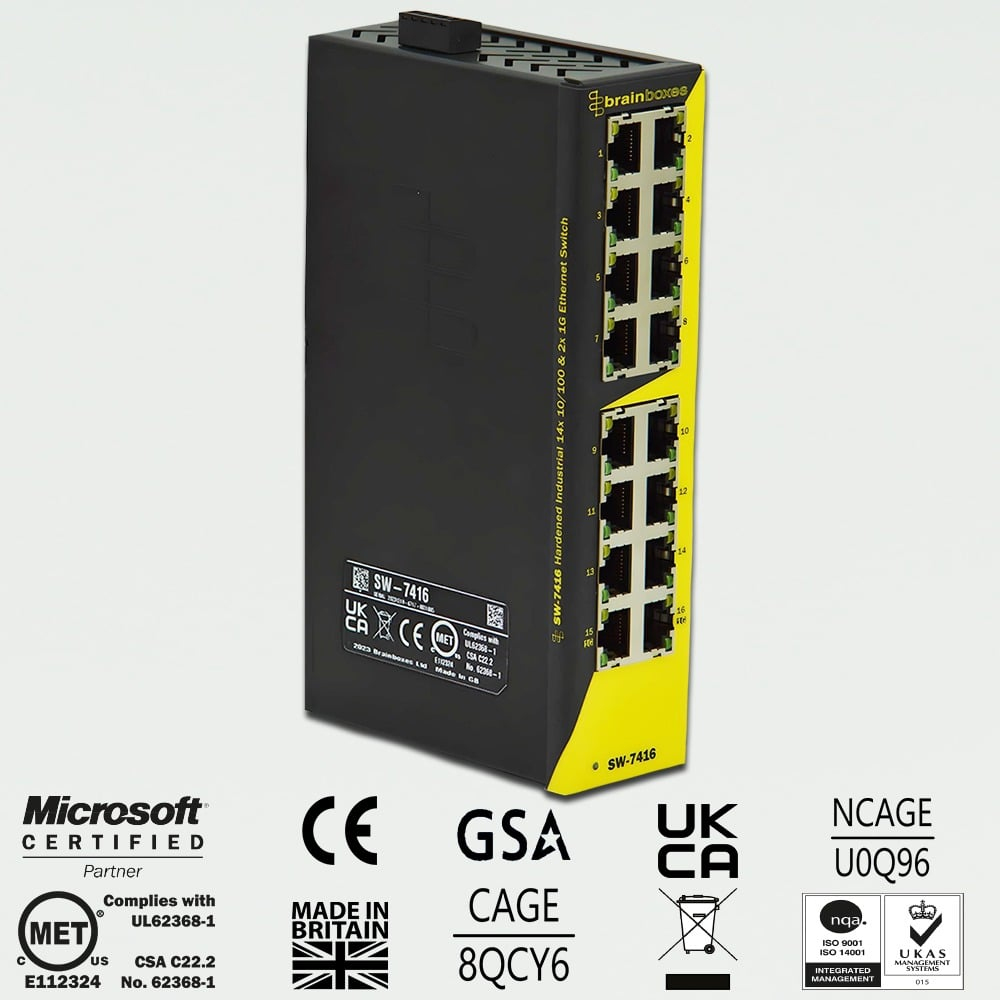

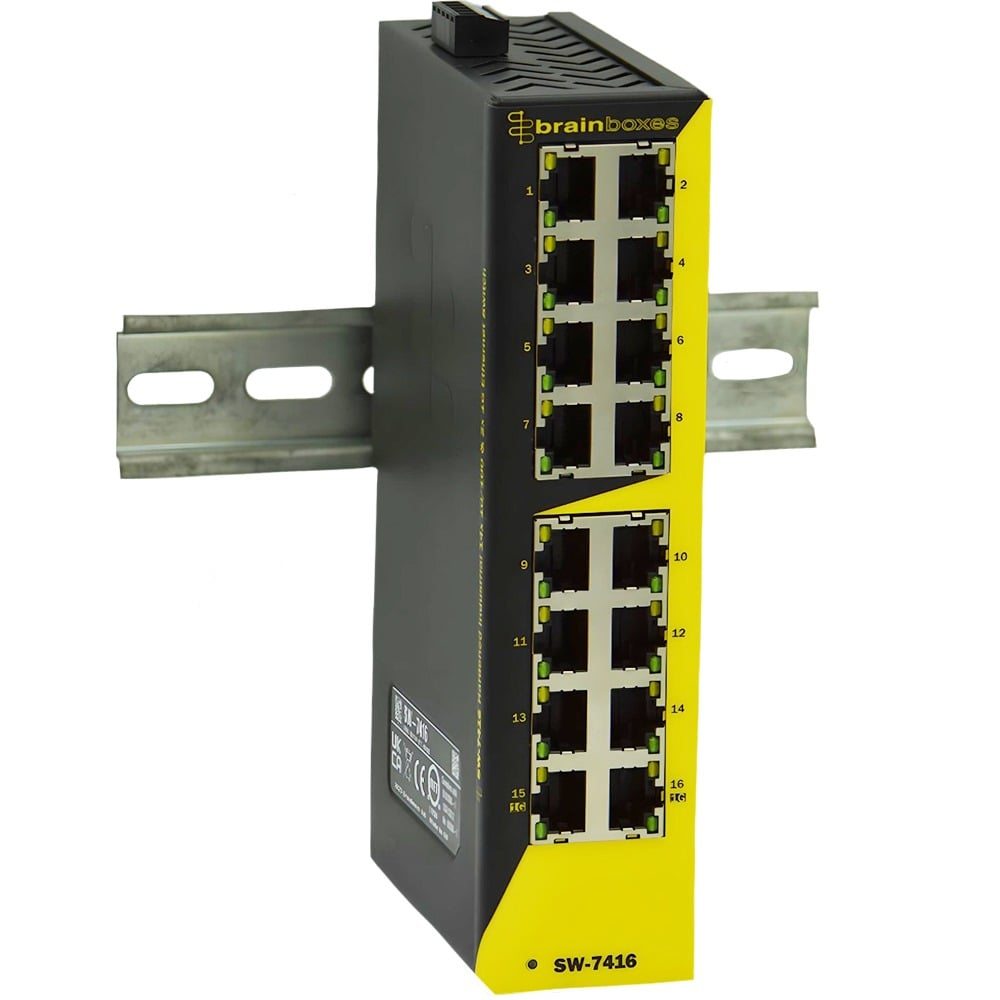

Hard Industrial
14x10/100 & 2x1Gb Trunk Ethernet Switch
Model SW-7416EAN 837324005202
30 specifications
- TypeDIN rail
- Weight640 g
- ColourBlack, Yellow
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- Export Control Classification Number (ECCN)5A991.b
Overview
- Type
- DIN rail
- Weight
- 640 g
- Colour
- Black, Yellow
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Export Control Classification Number (ECCN)
- 5A991.b
- Brand
- Brainboxes
- Category
- Network Switch
- Model
- SW-7416
- Part number
- SW-7416
- EAN / UPC
- 837324005202
- Also known as
- Brainboxes Hard Industrial 14x10/100 & 2x1Gb Trunk Ethernet Switch
Specifications
30 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |

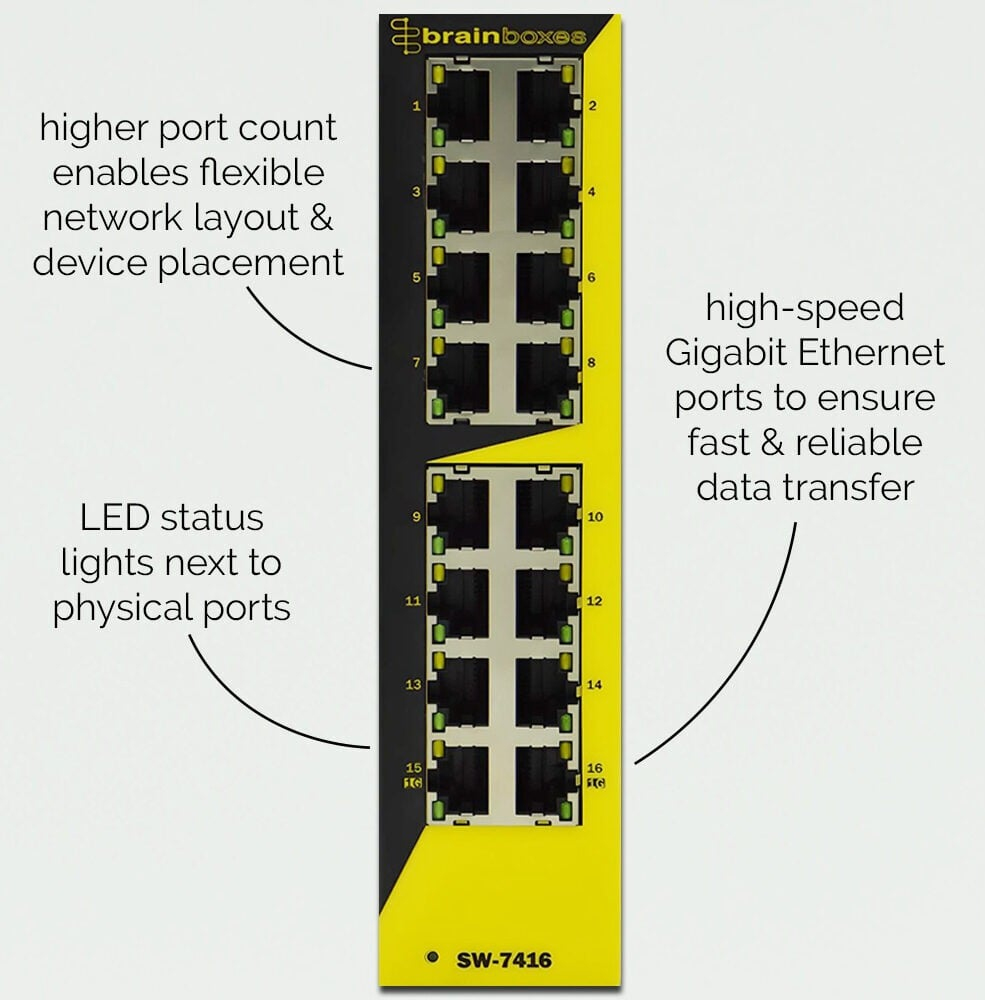

Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 14 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Design
| Specification | Value |
|---|---|
| Form factor | DIN rail |
| Product colour | Black, Yellow |

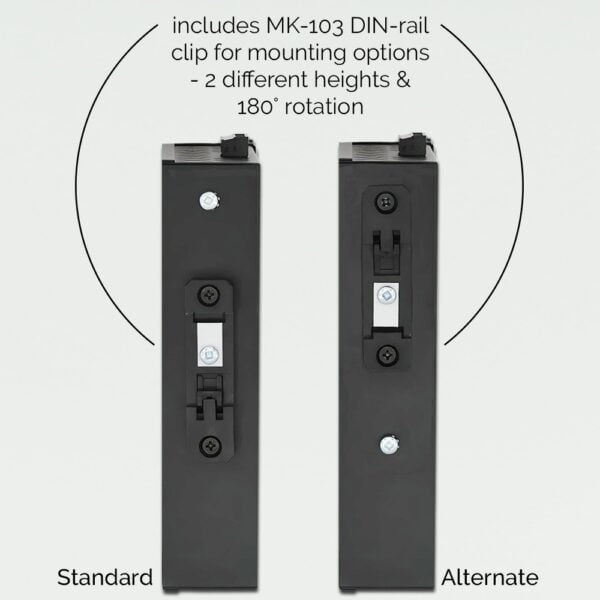

| DIN rail mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 6 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |

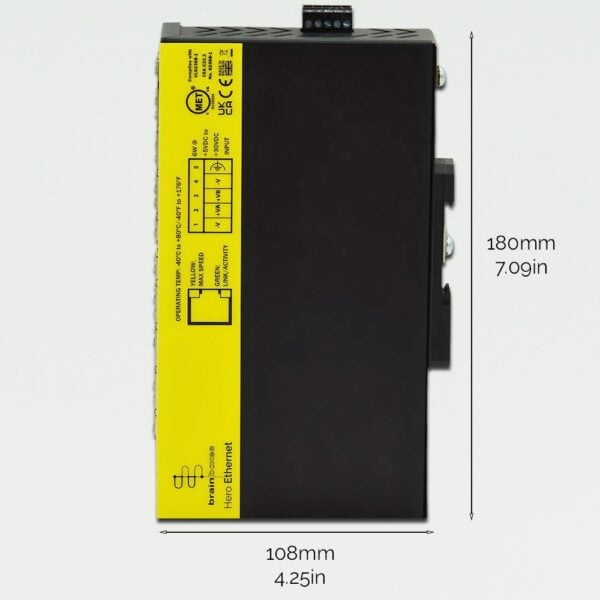

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 108 mm |
| Height | 43 mm |
| Weight | 640 g |
Packaging data
| Specification | Value |
|---|---|
| DIN rail included | Yes |
| Package width | 140 mm |
| Package depth | 200 mm |
| Package height | 80 mm |
| Package weight | 750 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, UKCA, Federal Communications Commission (FCC) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 851762 |
