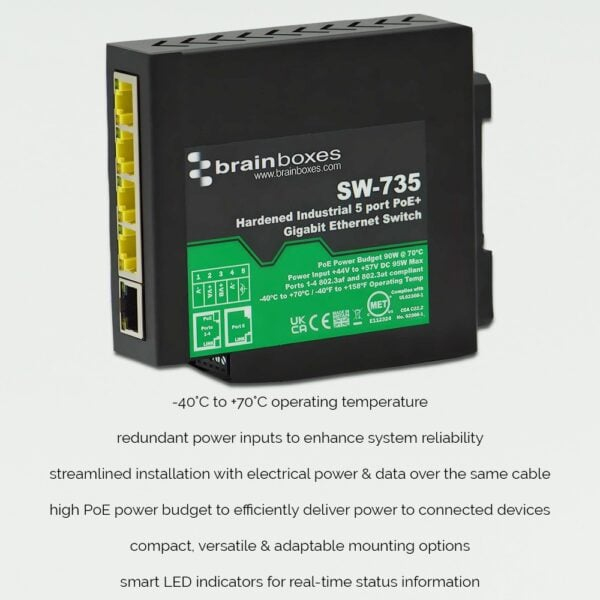

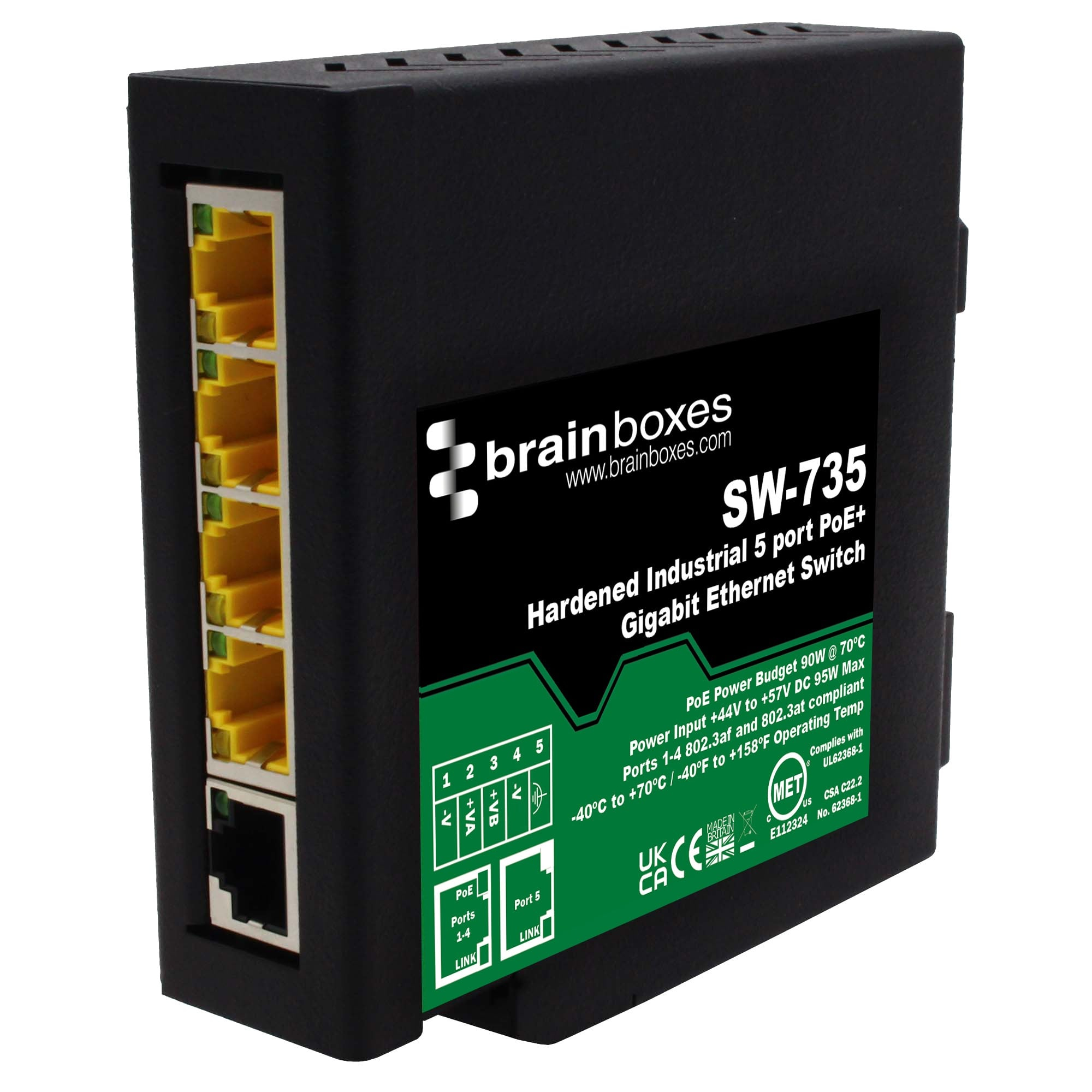

Hardened Industrial 5 Port PoE+ Gigabit Ethernet Switch
Model SW-735EAN 837324005172
35 specifications
- TypeDIN rail
- Weight357 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- MAC address table1000 entries
Overview
- Type
- DIN rail
- Weight
- 357 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- MAC address table
- 1000 entries
- Brand
- Brainboxes
- Category
- Network Switch
- Model
- SW-735
- Part number
- SW-735
- EAN / UPC
- 837324005172
- Also known as
- Brainboxes Hardened Industrial 5 Port PoE+ Gigabit Ethernet Switch
Specifications
35 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|

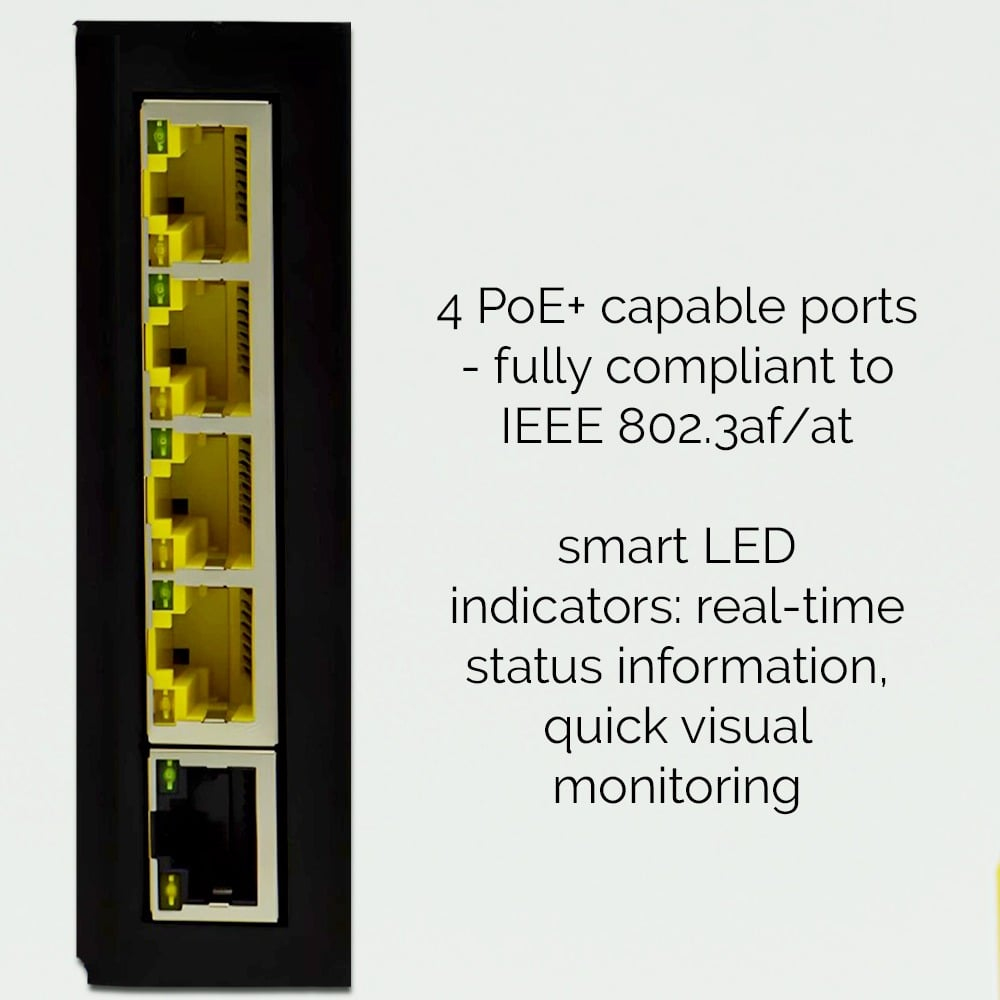

| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.448 MB |
Design
| Specification | Value |
|---|---|
| Form factor | DIN rail |
| Product colour | Black |

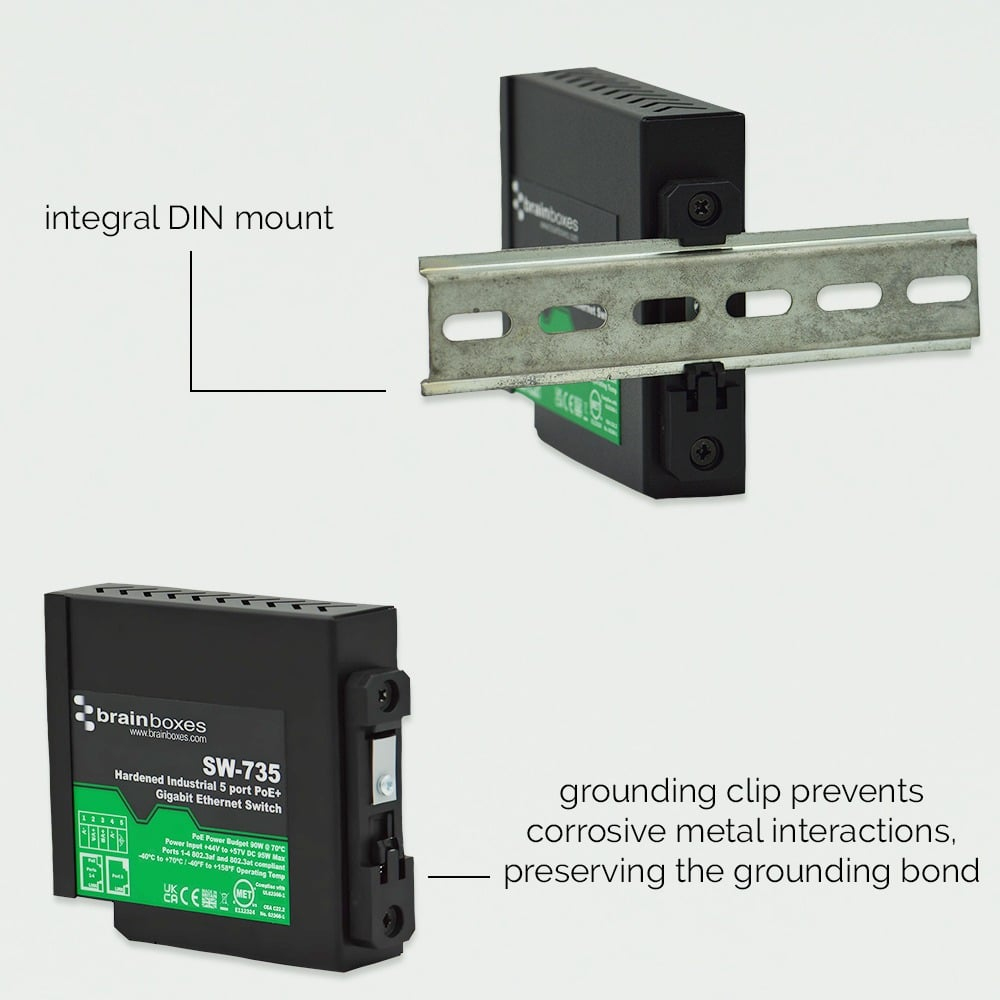

| DIN rail mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | 8517.62.00.00 |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 44 - 57 V |
| Power consumption (max) | 5.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 5 |
| Total Power over Ethernet (PoE) budget | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 99 mm |
| Height | 28 mm |
| Weight | 357 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 135 mm |
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 422 g |
Certificates
| Specification | Value |
|---|---|

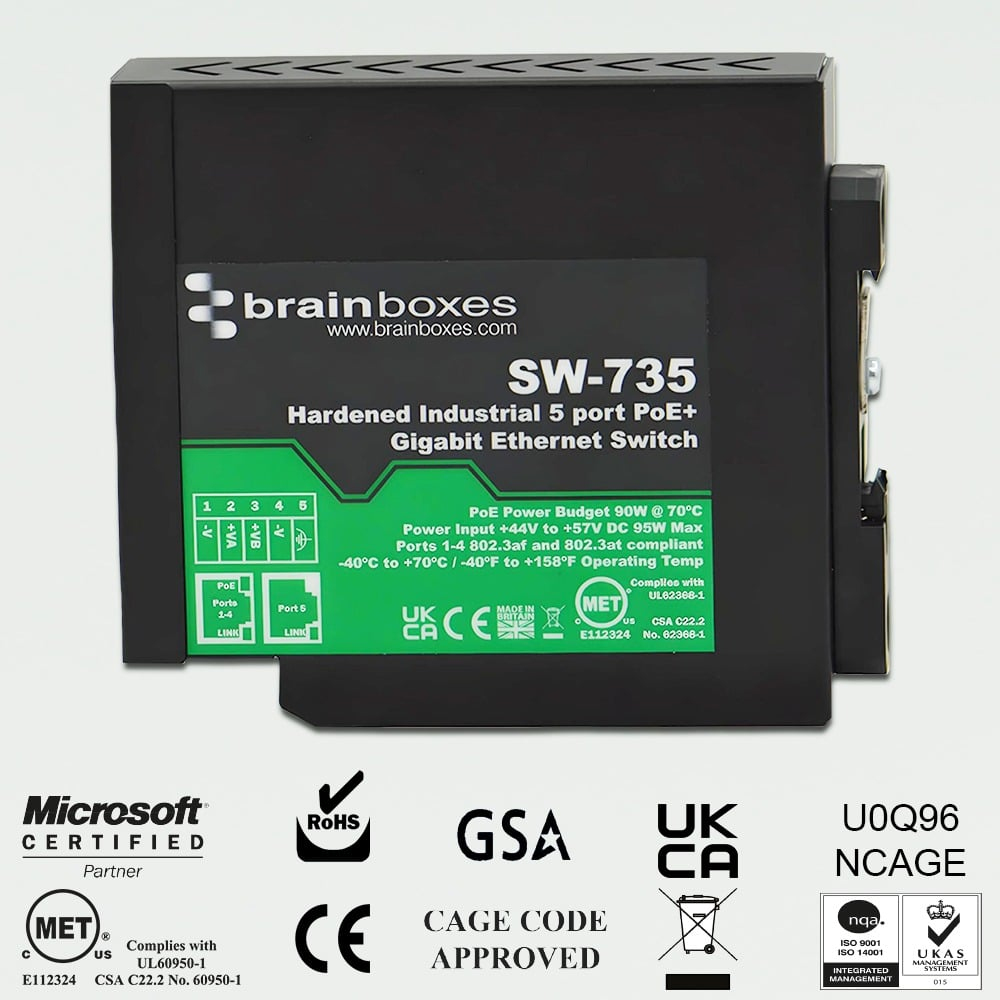

| Compliance certificates | CE, UKCA, RoHS, REACH, WEEE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| Harmonized System (HS) code | 851762 |
