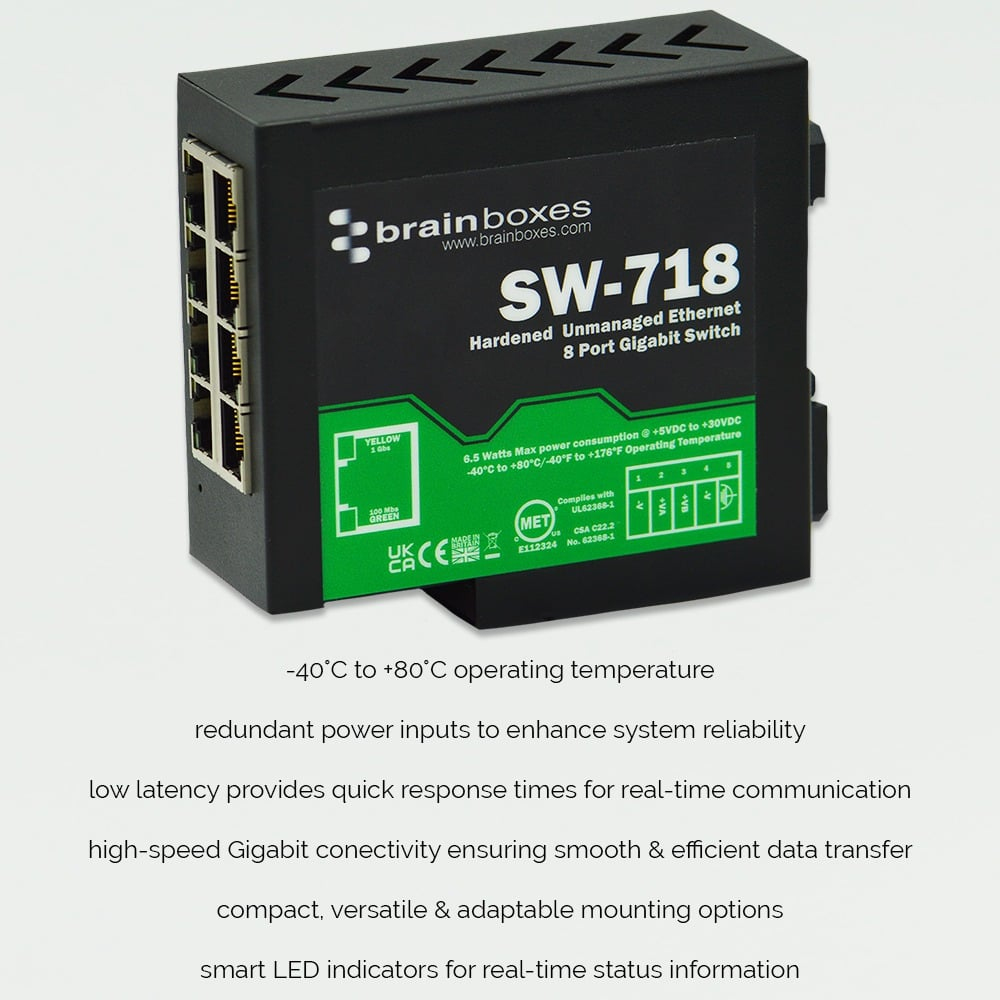

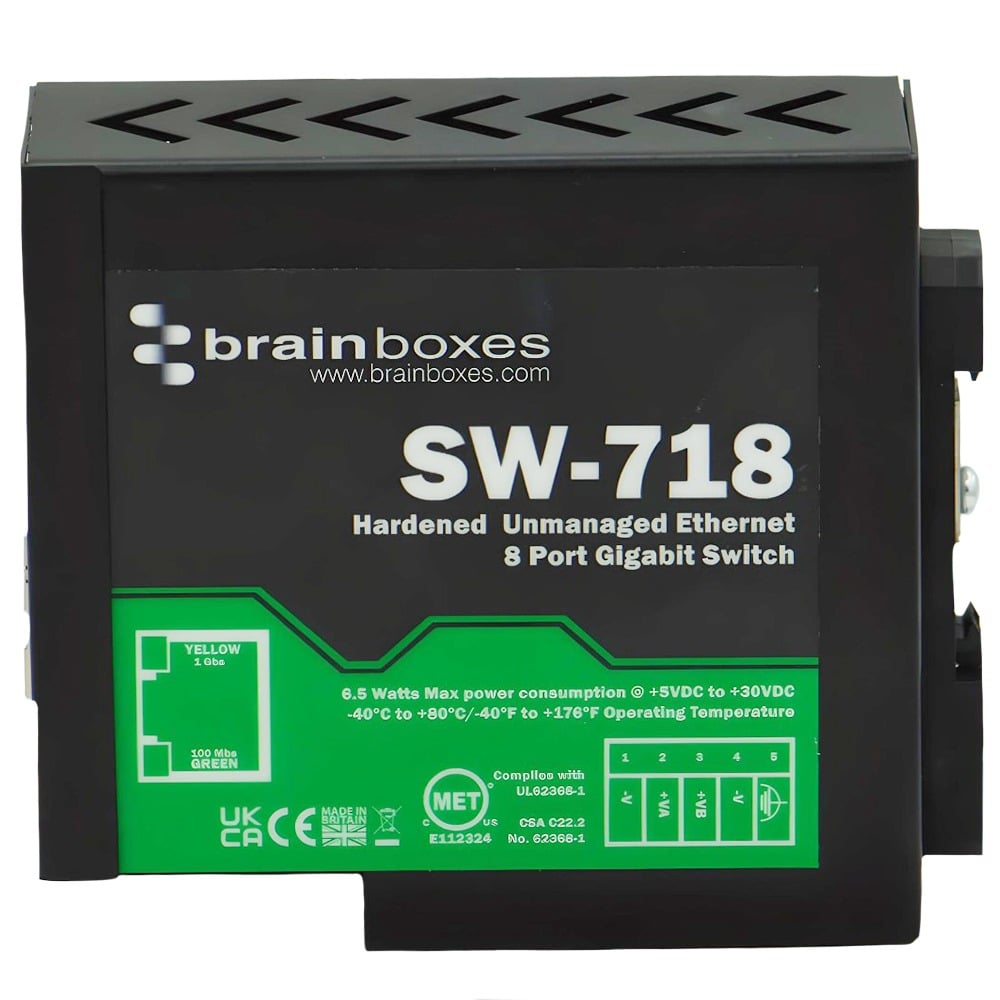

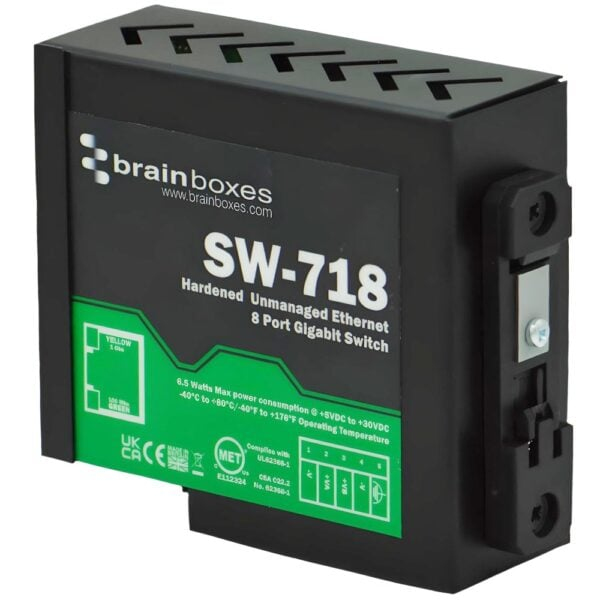

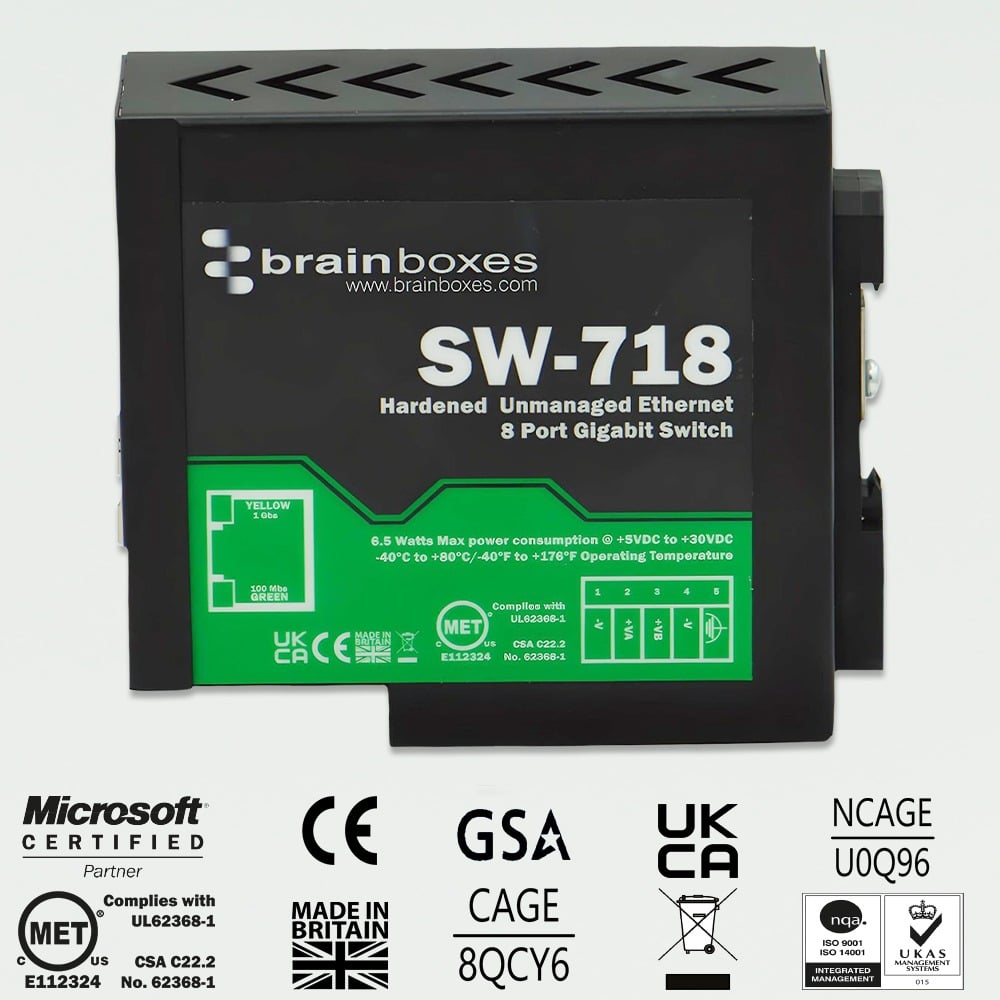

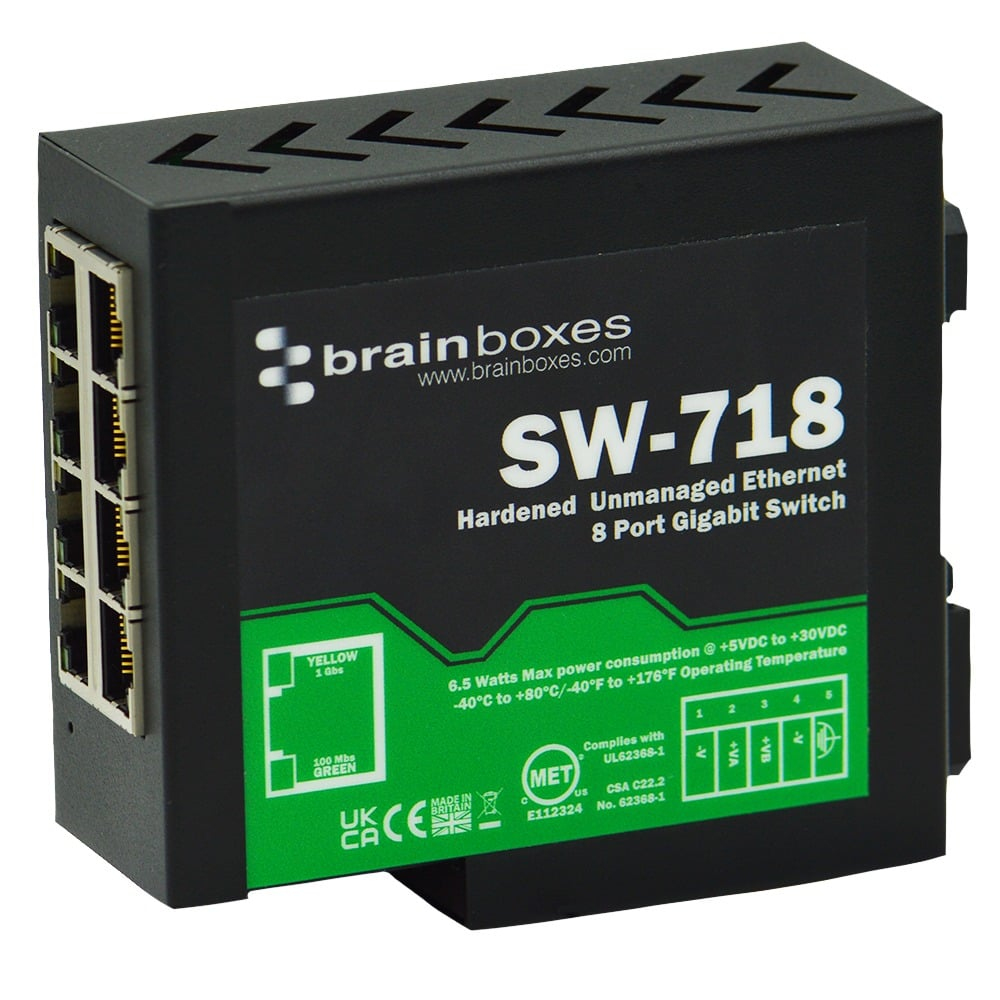

Hardened Industrial 8 Port Gigabit Ethernet Switch
Model SW-718EAN 837324005110
25 specifications
- TypeDIN rail
- Weight380 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Export Control Classification Number (ECCN)5A991.b
Overview
- Type
- DIN rail
- Weight
- 380 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Export Control Classification Number (ECCN)
- 5A991.b
- Brand
- Brainboxes
- Category
- Network Switch
- Model
- SW-718
- Part number
- SW-718
- EAN / UPC
- 837324005110
- Also known as
- Brainboxes Hardened Industrial 8 Port Gigabit Ethernet Switch
Specifications
25 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|

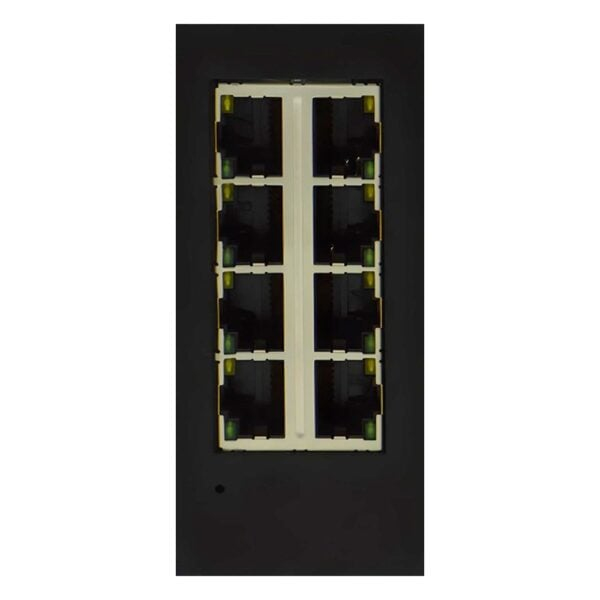

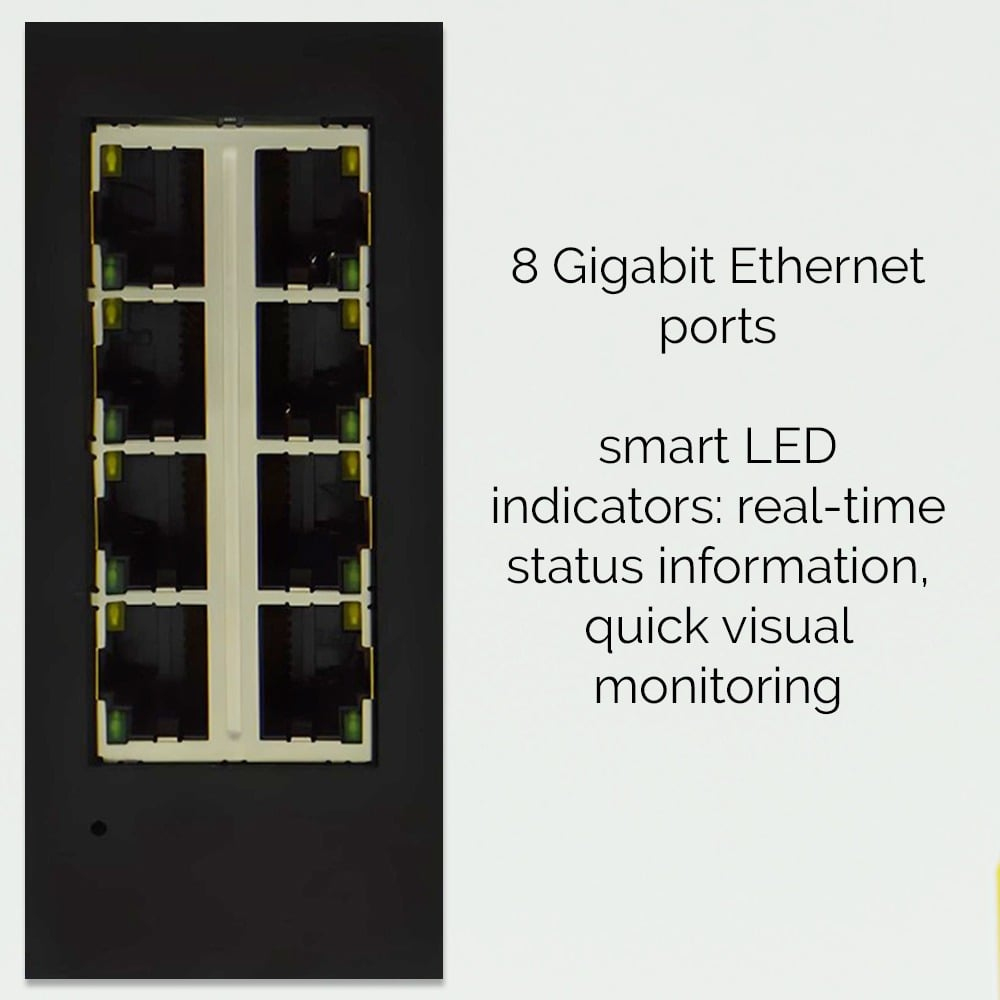

| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP+ modules quantity | 0 |
Design
| Specification | Value |
|---|---|
| Form factor | DIN rail |
| Product colour | Black |

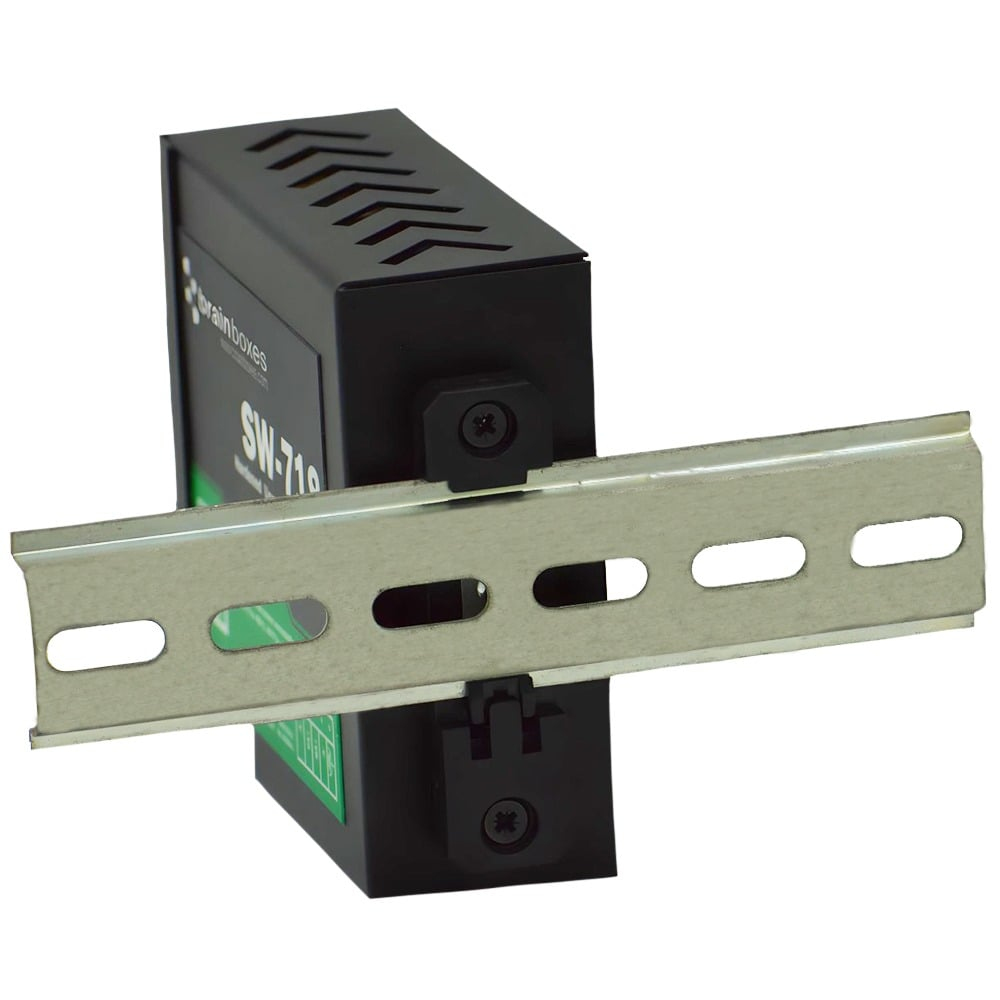

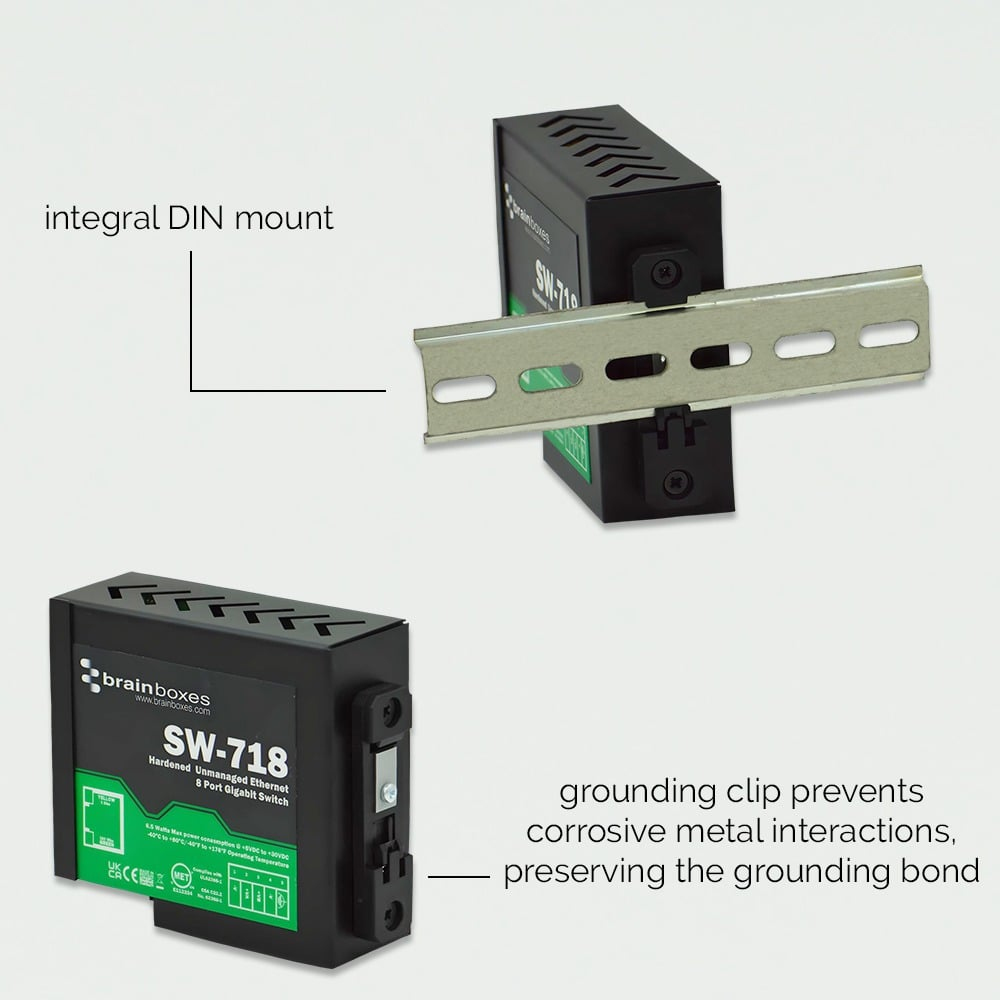

| DIN rail mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 6.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 114.9 mm |
| Depth | 99.3 mm |
| Height | 41.3 mm |
| Weight | 380 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 135 mm |
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 460 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 851762 |
