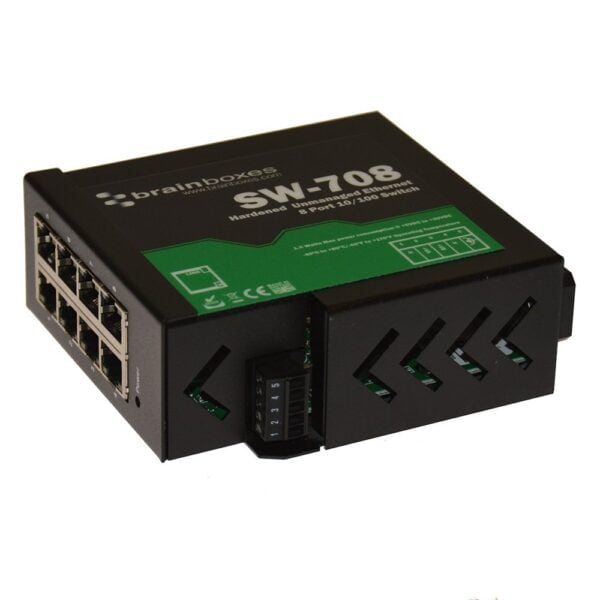

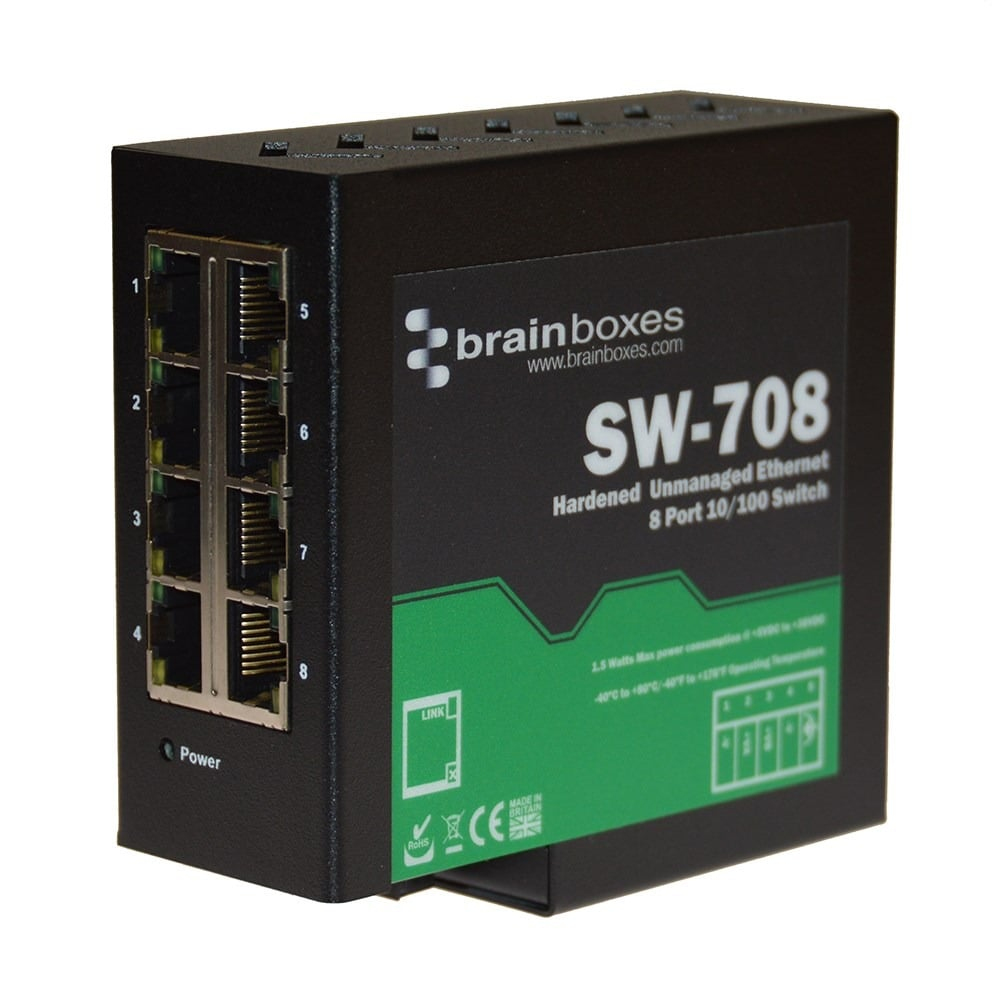

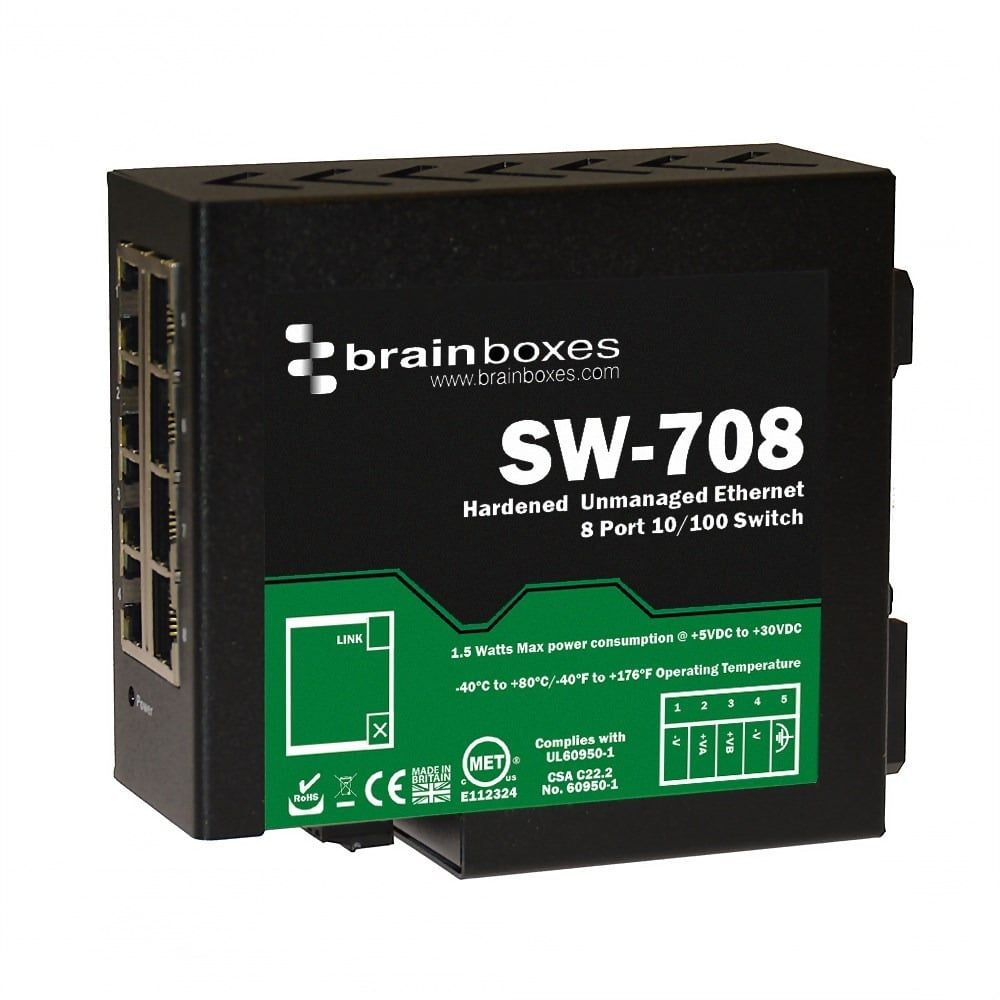

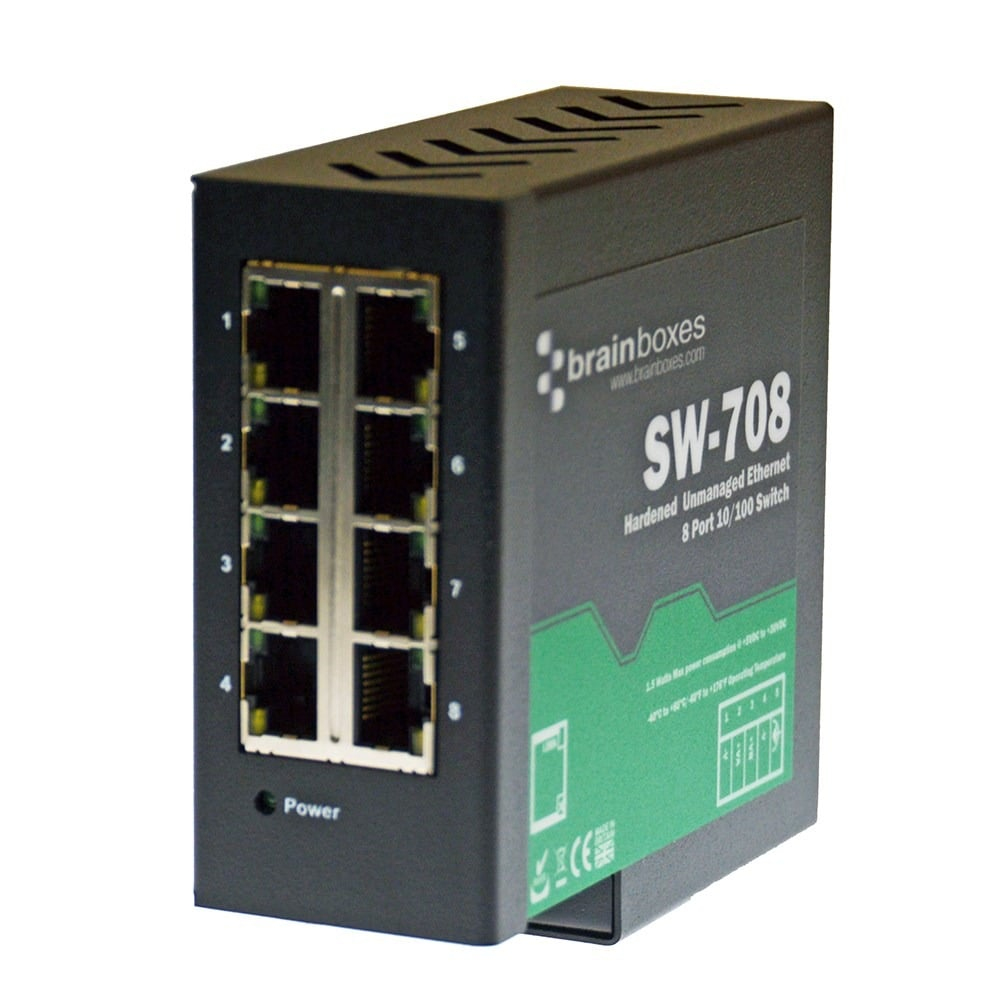

Brainboxes Hardened Industrial 8 Port 10/100 Ethernet Switch
Model SW-708EAN 837324004199
41 specifications
- TypeDIN rail
- Weight393 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Type
- DIN rail
- Weight
- 393 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- Brainboxes
- Category
- Network Switch
- Model
- SW-708
- Part number
- SW-708
- EAN / UPC
- 837324004199
- Also known as
- Brainboxes Hardened Industrial 8 Port 10/100 Ethernet Switch
Specifications
41 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Jumbo frames support | No |
| Packet buffer memory | 0.448 MB |
Design
| Specification | Value |
|---|---|
| Form factor | DIN rail |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link |

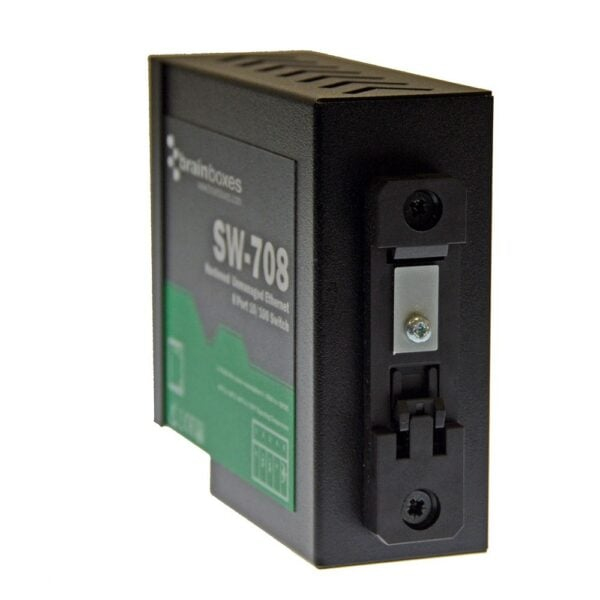

| DIN rail mounting | Yes |
| International Protection (IP) code | IP20 |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 1.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 100 mm |
| Height | 40 mm |
| Weight | 393 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 443 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, UKCA, RoHS, REACH, WEEE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| Harmonized System (HS) code | 851762 |
