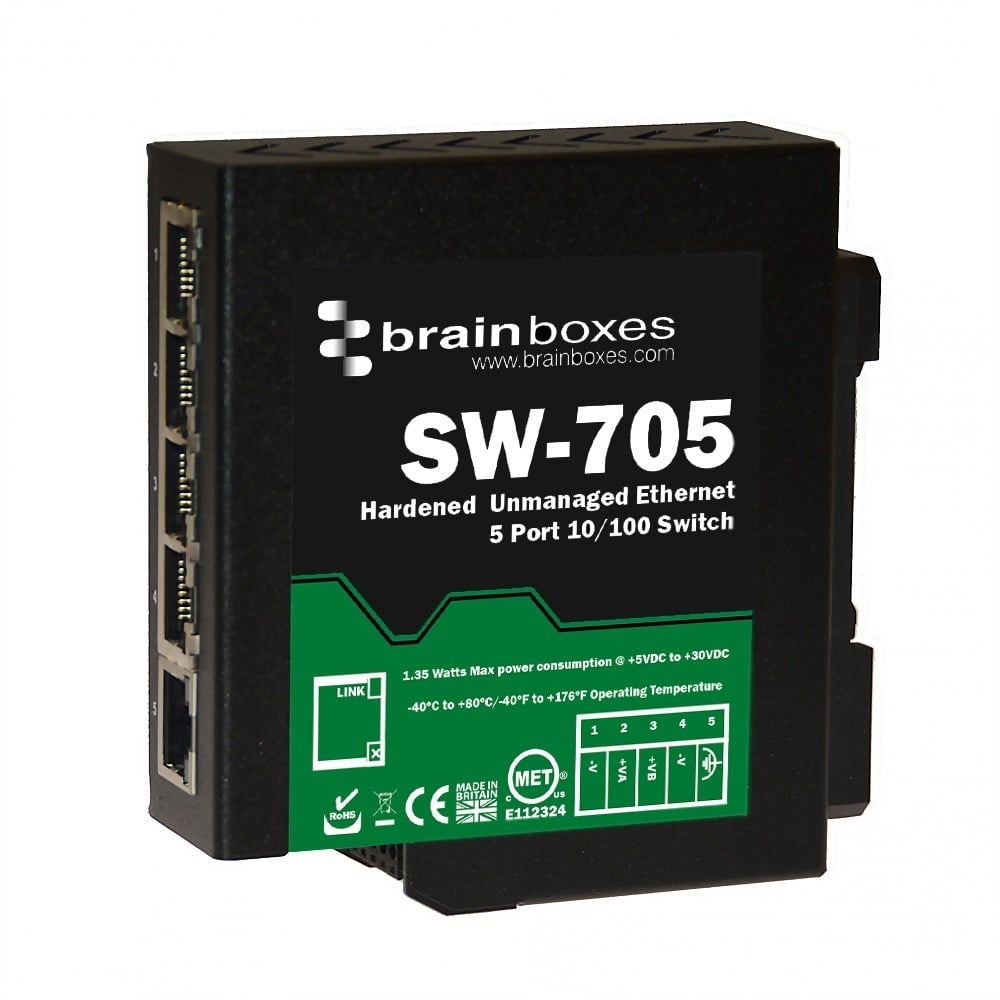

Brainboxes Hardened Industrial 5 Port 10/100 Ethernet Switch
Model SW-705EAN 837324004182
41 specifications
- TypeDIN rail
- Weight270 g
- ColourBlack, Green
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
Overview
- Type
- DIN rail
- Weight
- 270 g
- Colour
- Black, Green
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Brand
- Brainboxes
- Category
- Network Switch
- Model
- SW-705
- Part number
- SW-705
- EAN / UPC
- 837324004182
- Also known as
- Brainboxes Hardened Industrial 5 Port 10/100 Ethernet Switch
Specifications
41 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Jumbo frames support | No |
| Packet buffer memory | 0.448 MB |
Design
| Specification | Value |
|---|---|
| Form factor | DIN rail |
| Product colour | Black, Green |
| Housing material | Metal |
| LED indicators | Activity, Link |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP20 |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 1.35 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 99 mm |
| Depth | 95 mm |
| Height | 29 mm |
| Weight | 270 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 338 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, UKCA, RoHS, REACH, WEEE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 851762 |
