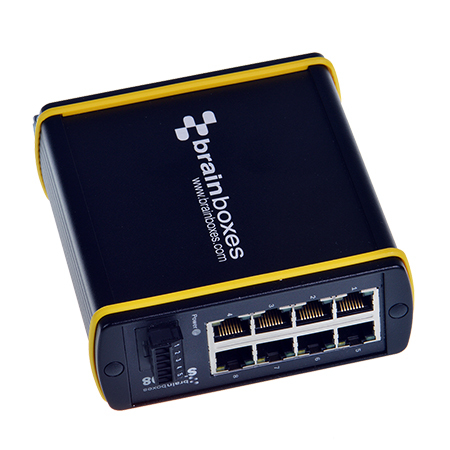

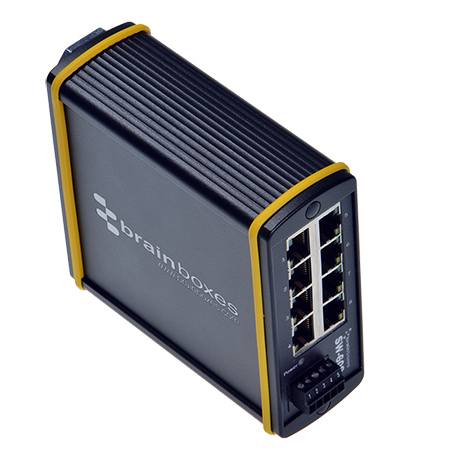

Brainboxes SW-608 network switch Unmanaged Fast Ethernet (10/100) Black, Yellow
Model SW-608EAN 837324003918
22 specifications
- Weight501 g
- ColourBlack, Yellow
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Auto MDI/MDI-XYes
- Power over Ethernet (PoE)No
Overview
- Weight
- 501 g
- Colour
- Black, Yellow
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Auto MDI/MDI-X
- Yes
- Power over Ethernet (PoE)
- No
- Brand
- Brainboxes
- Category
- Network Switch
- Model
- SW-608
- Part number
- SW-608
- EAN / UPC
- 837324003918
- Also known as
- Brainboxes SW-608 network switch Unmanaged Fast Ethernet (10/100) Black, Yellow
Specifications
22 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network
| Specification | Value |
|---|---|
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Yellow |
| Housing material | Aluminium |
| LED indicators | Activity, Link, Speed |

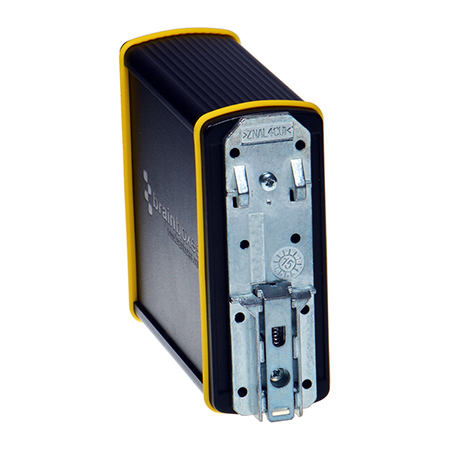

| DIN rail mounting | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Input voltage | +5VDC to +30VDC |
| Power consumption (typical) | 1.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Terminal block port | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 110 mm |
| Height | 45 mm |
| Weight | 501 g |
Certificates
| Specification | Value |
|---|---|
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
What people say
Reviews & ratings
Brainboxes SW-608 network switch Unmanaged Fast Ethernet (10/100) Black, Yellow
No reviews yet
Be the first to tell others how Brainboxes SW-608 network switch Unmanaged Fast Ethernet (10/100) Black, Yellow works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Brainboxes SW-608 network switch Unmanaged Fast Ethernet (10/100) Black, Yellow
All network switch comparisons- Brainboxes SW-608 network switch Unmanaged Fast Ethernet (10/100) Black, Yellow vsBrainboxes Embedded Industrial 4 Port 10/100 Ethernet SwitchCompare specs
- Brainboxes SW-608 network switch Unmanaged Fast Ethernet (10/100) Black, Yellow vsBrainboxes Embedded Industrial 5 Port 10/100 Ethernet SwitchCompare specs
- Brainboxes SW-608 network switch Unmanaged Fast Ethernet (10/100) Black, Yellow vsBrainboxes Industrial 5 Port 10/100 Ethernet SwitchCompare specs
- Brainboxes SW-608 network switch Unmanaged Fast Ethernet (10/100) Black, Yellow vsBrainboxes Industrial 8 Port 10/100 Ethernet SwitchCompare specs
- Brainboxes SW-608 network switch Unmanaged Fast Ethernet (10/100) Black, Yellow vsAllied Telesis GS910/24 UnmanagedCompare specs
- Brainboxes SW-608 network switch Unmanaged Fast Ethernet (10/100) Black, Yellow vsD-Link DXS-3400-24SC network switch Managed L3 BlackCompare specs

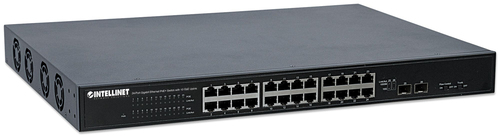

- Brainboxes SW-608 network switch Unmanaged Fast Ethernet (10/100) Black, Yellow vsIntellinet 24-Port Gigabit Ethernet PoE+ Switch with 10 GbE Uplink, 24 x PoE ports, IEEE 802.3at Power over Ethernet (PoE+)Compare specs
