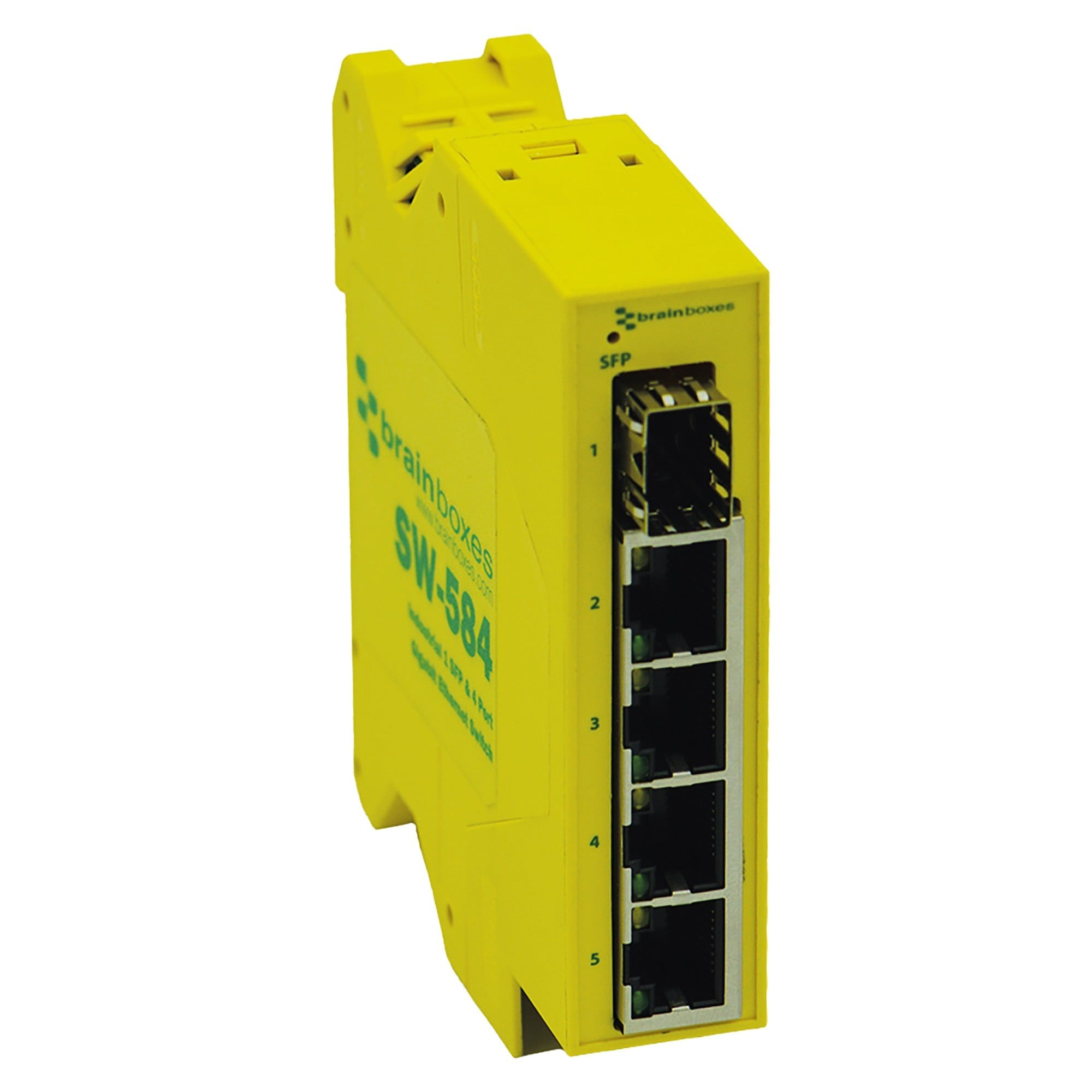

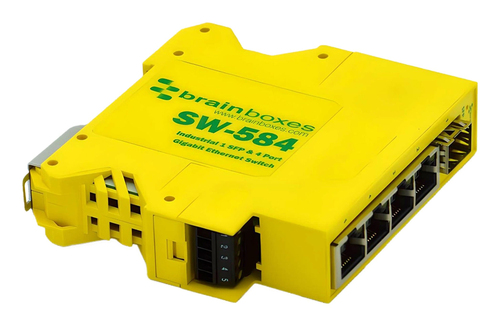

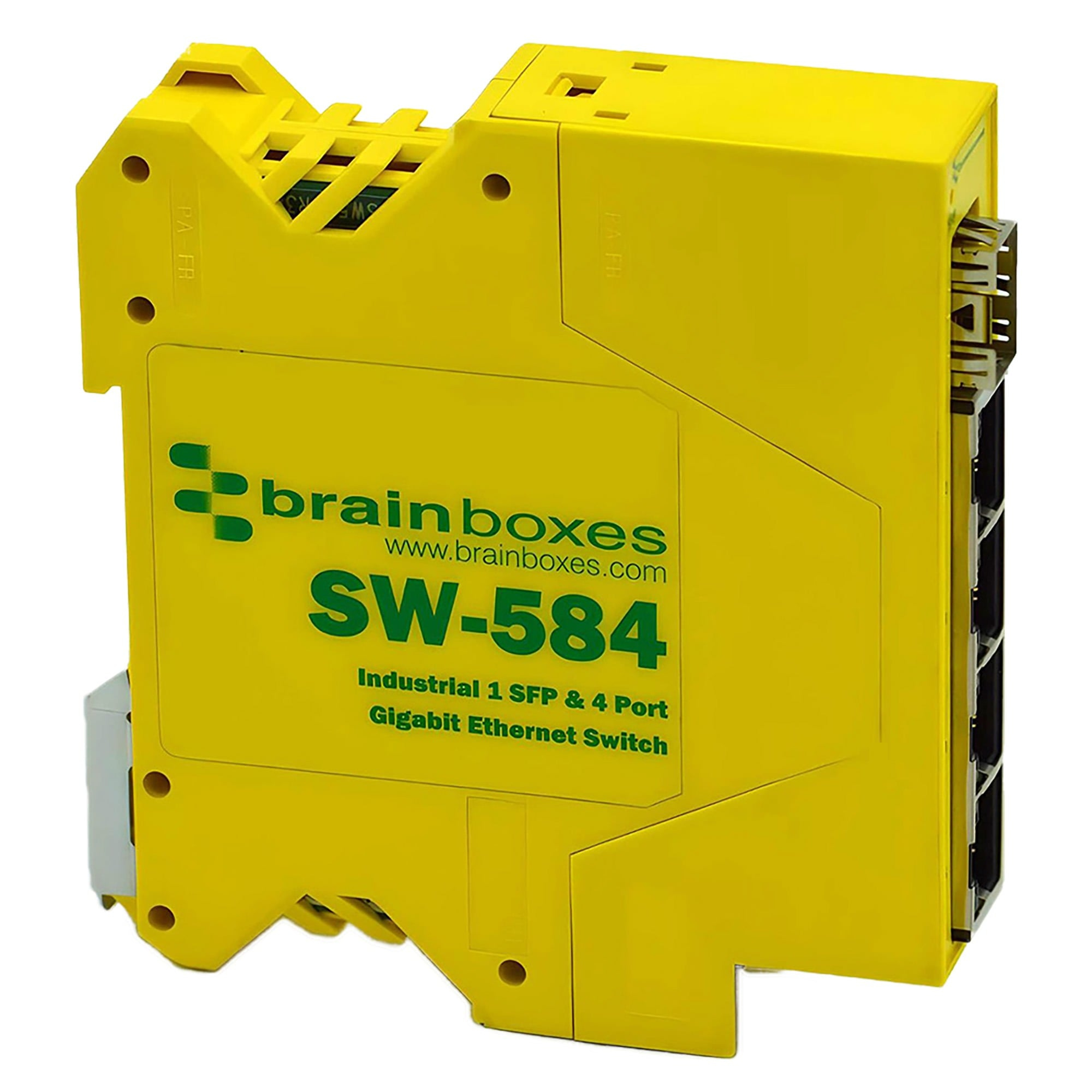

Industrial 1 SFP & 4 Port Gigabit Ethernet Switch
Model SW-584EAN 837324005004
38 specifications
- TypeDIN rail
- Weight109 g
- ColourYellow
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
- Auto MDI/MDI-XYes
Overview
- Type
- DIN rail
- Weight
- 109 g
- Colour
- Yellow
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Auto MDI/MDI-X
- Yes
- Brand
- Brainboxes
- Category
- Network Switch
- Model
- SW-584
- Part number
- SW-584
- EAN / UPC
- 837324005004
- Also known as
- Brainboxes Industrial 1 SFP & 4 Port Gigabit Ethernet Switch
Specifications
38 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Design
| Specification | Value |
|---|---|
| Form factor | DIN rail |
| Product colour | Yellow |
| Housing material | Polyamide |

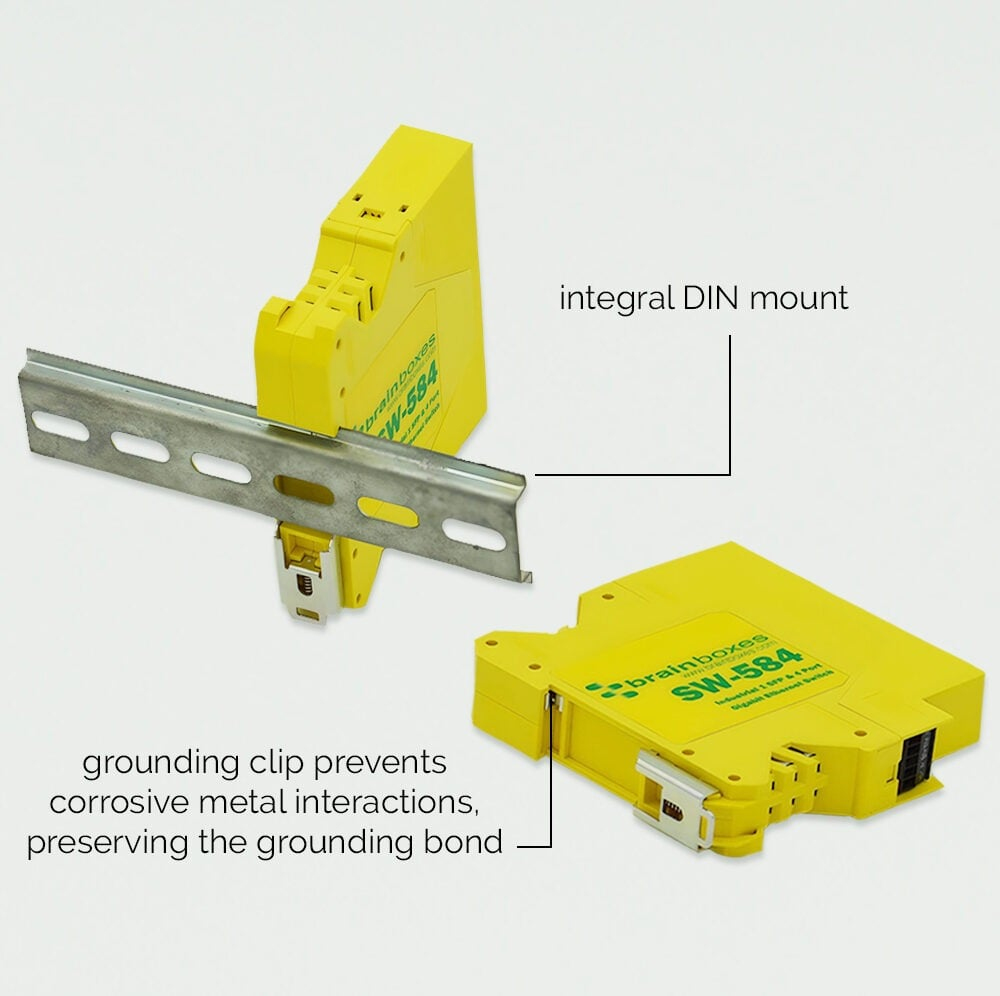

| DIN rail mounting | Yes |
| International Protection (IP) code | IP20 |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Power
| Specification | Value |
|---|---|
| Power source | DC |

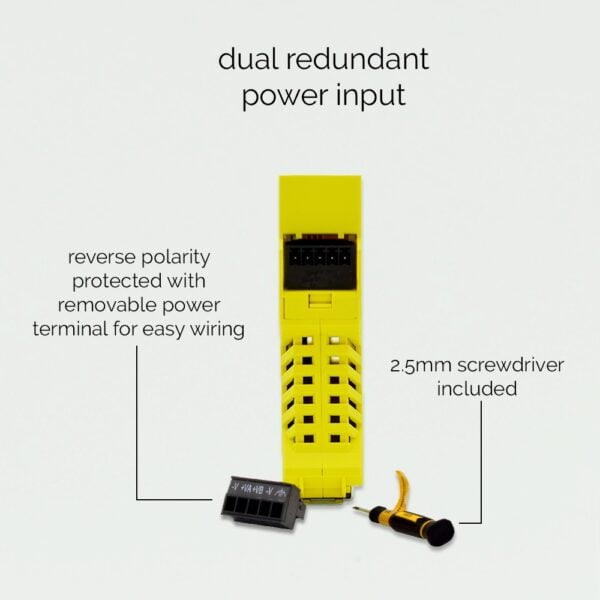

| Redundant power supply (RPS) support | Yes |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 3.6 W |
| Power protection features | Over current |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |

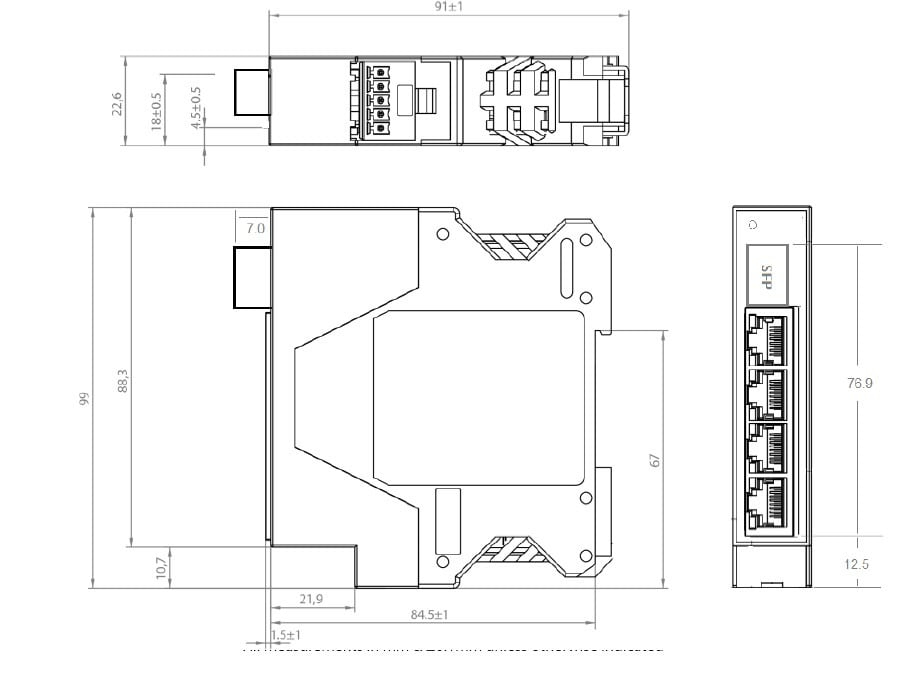

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 99 mm |
| Depth | 95 mm |
| Height | 22 mm |
| Weight | 109 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 135 mm |
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 204 g |

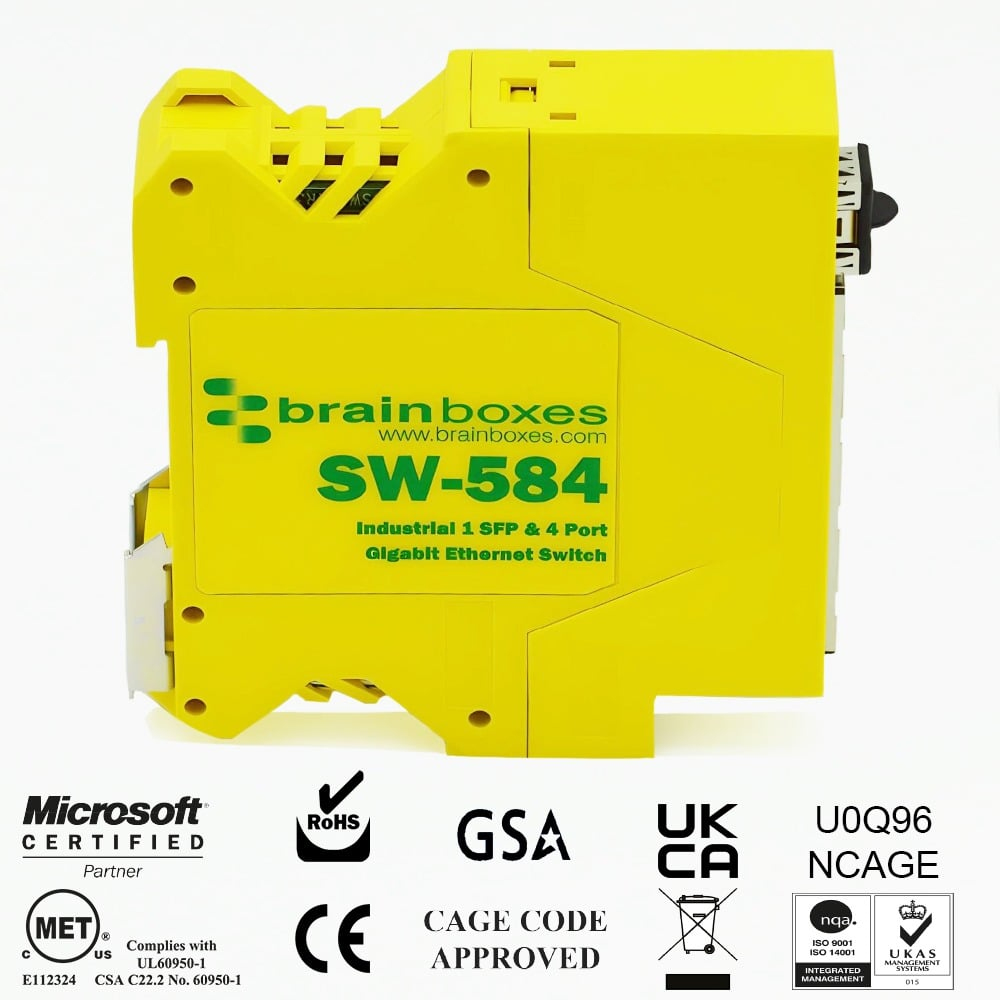

Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 851762 |
