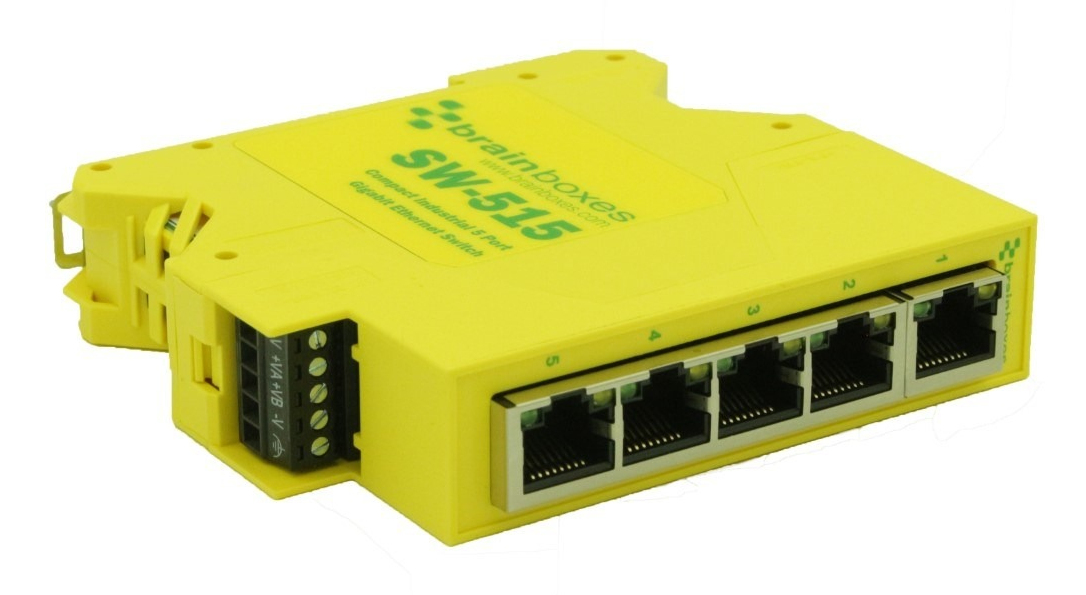

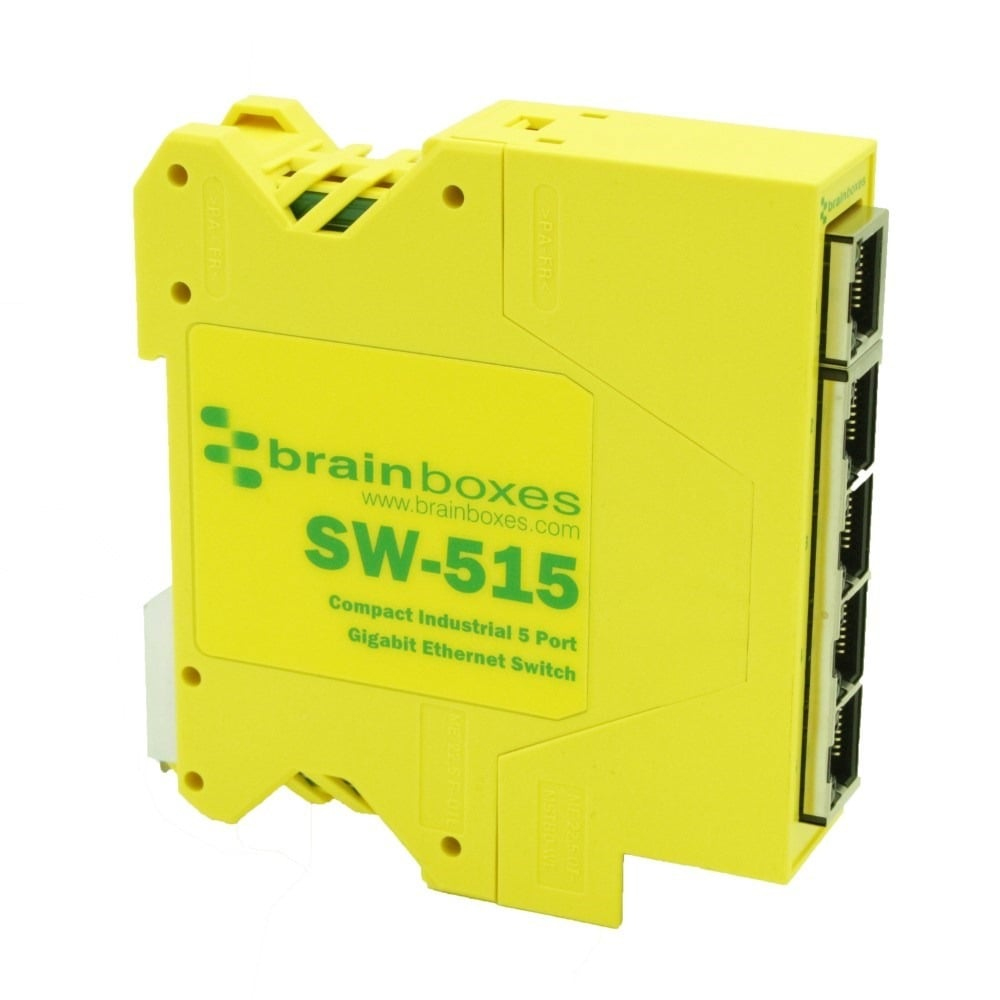

Industrial 5 Port Gigabit Ethernet Switch
Model SW-515EAN 837324004281
41 specifications
- TypeDIN rail
- Weight112 g
- ColourYellow
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
Overview
- Type
- DIN rail
- Weight
- 112 g
- Colour
- Yellow
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Brand
- Brainboxes
- Category
- Network Switch
- Model
- SW-515
- Part number
- SW-515
- EAN / UPC
- 837324004281
- Also known as
- Brainboxes Industrial 5 Port Gigabit Ethernet Switch
Specifications
41 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Form factor | DIN rail |
| Product colour | Yellow |
| Housing material | Polyamide |
| LED indicators | Activity, Link, Speed |
| Redundant fans support | Yes |

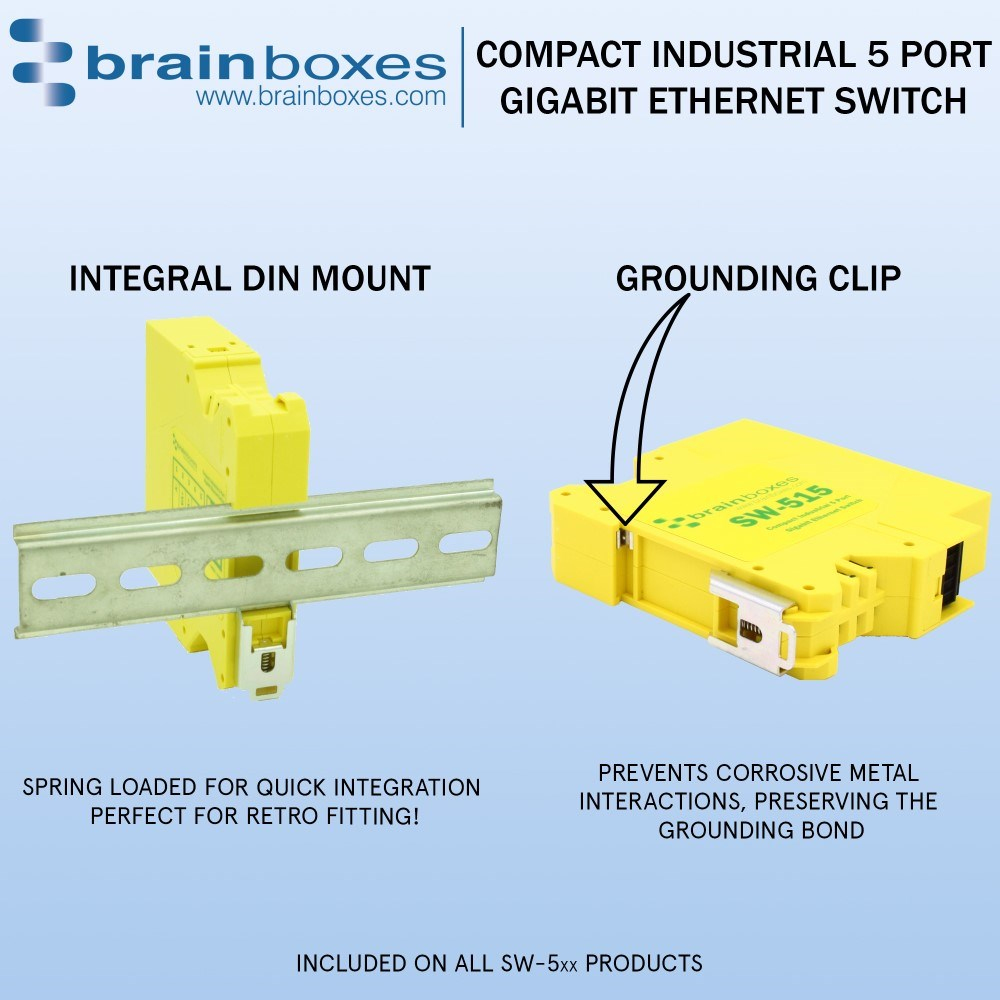

| DIN rail mounting | Yes |
| International Protection (IP) code | IP20 |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |

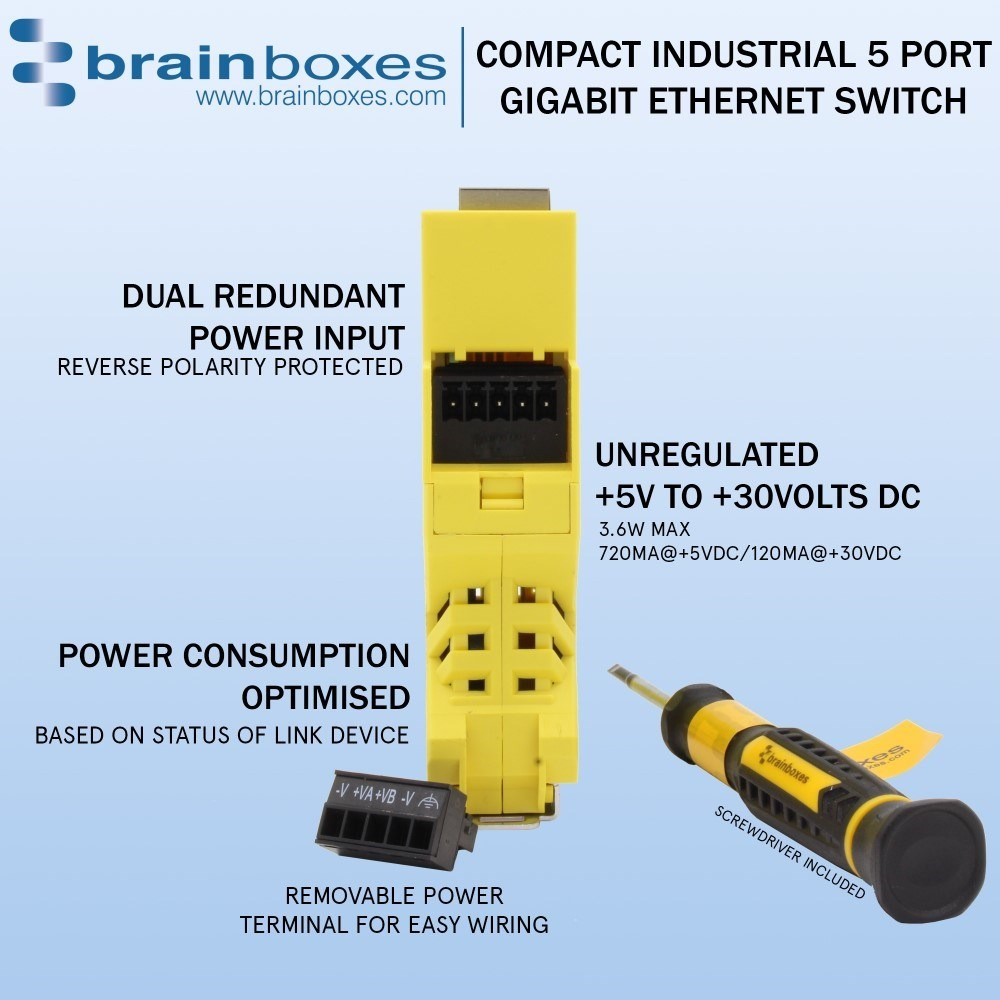

Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 3.6 W |
| Power protection features | Reverse polarity |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |

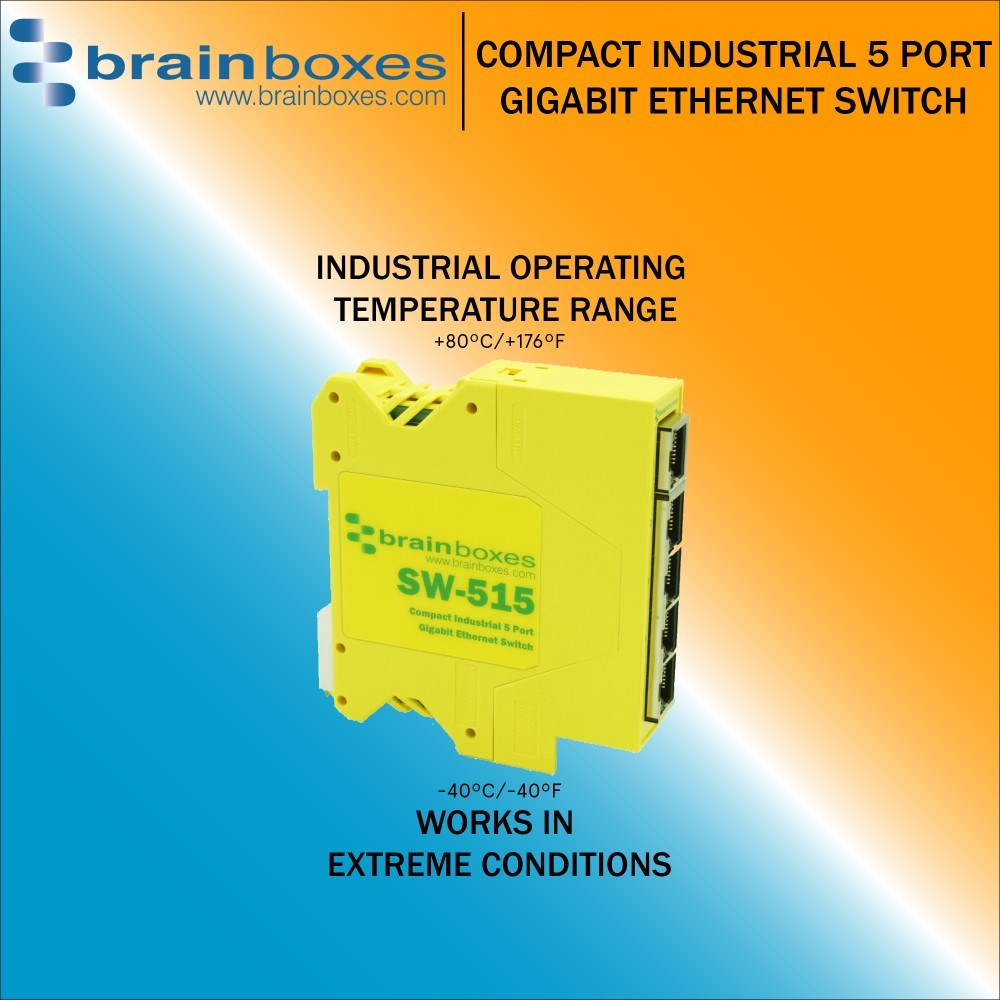

Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |

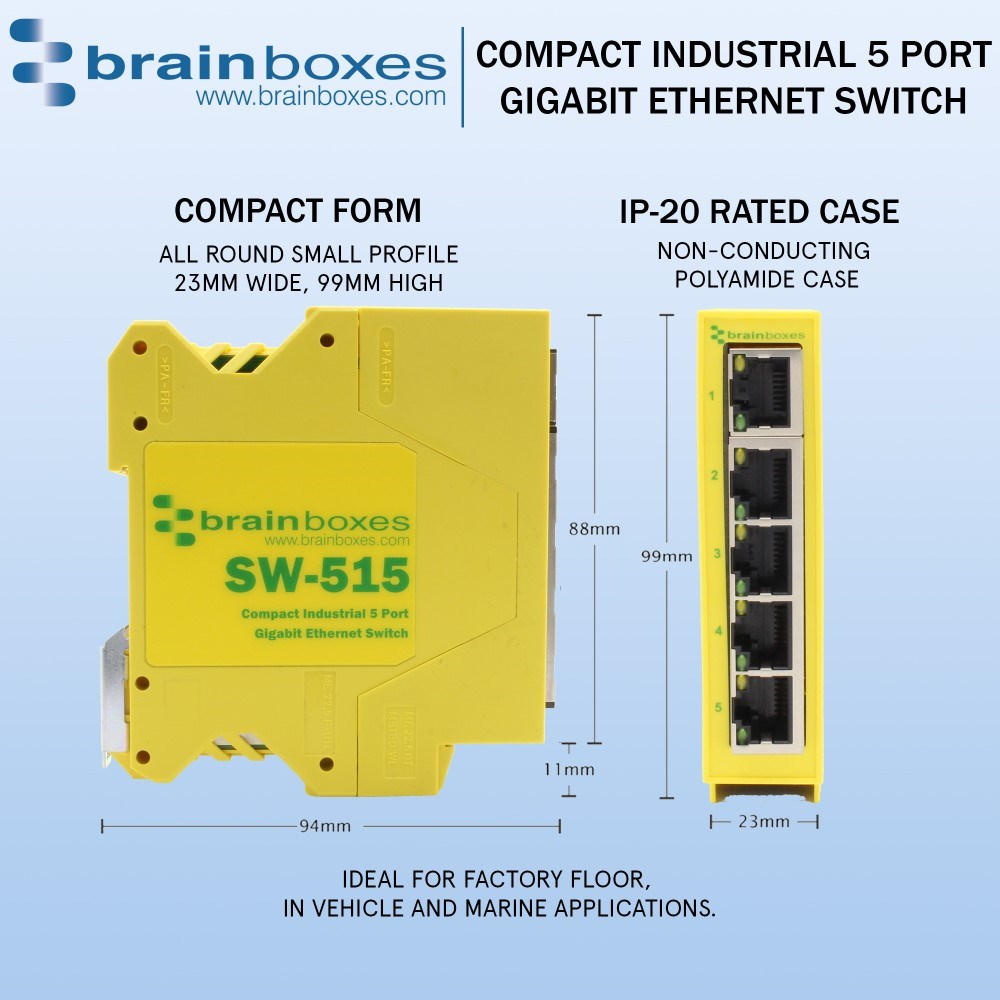

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 99 mm |
| Depth | 94 mm |
| Height | 23 mm |
| Weight | 112 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 191 g |

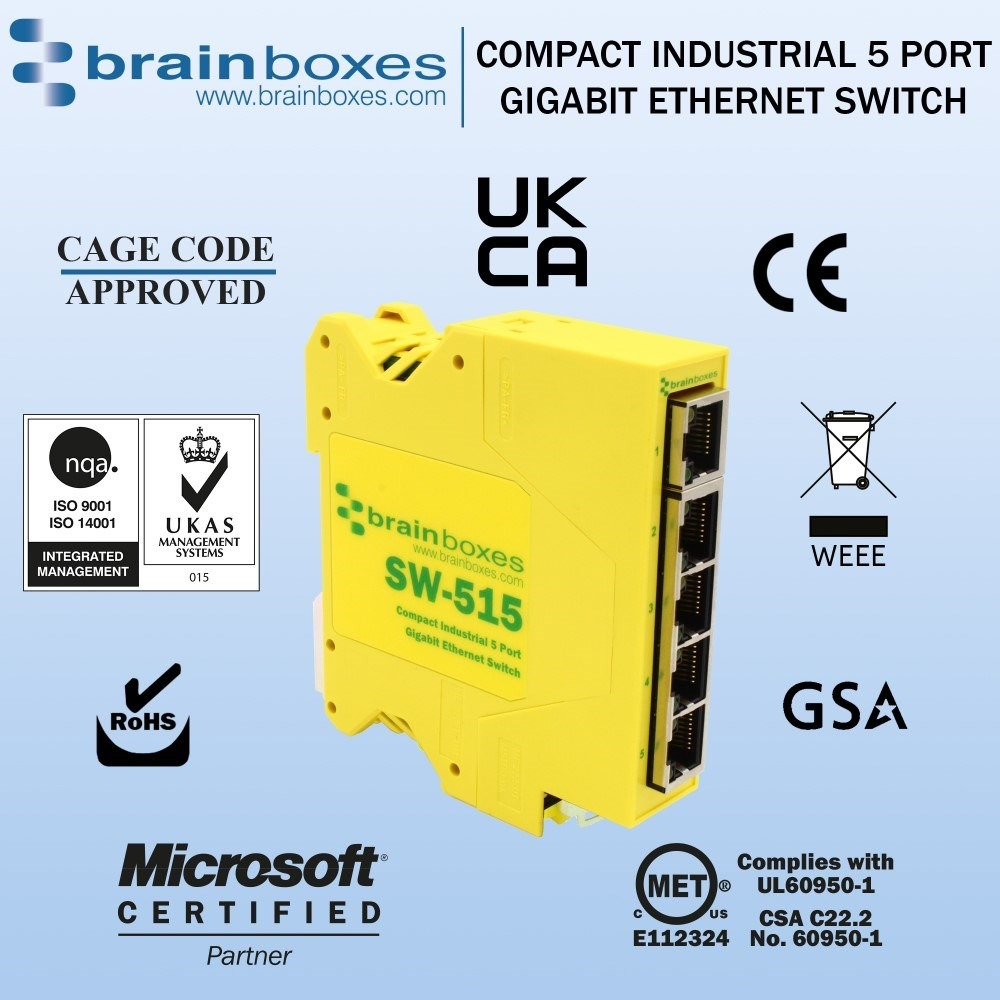

Certificates
| Specification | Value |
|---|---|
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE, METL Complies with UL 60950-1 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 851762 |
