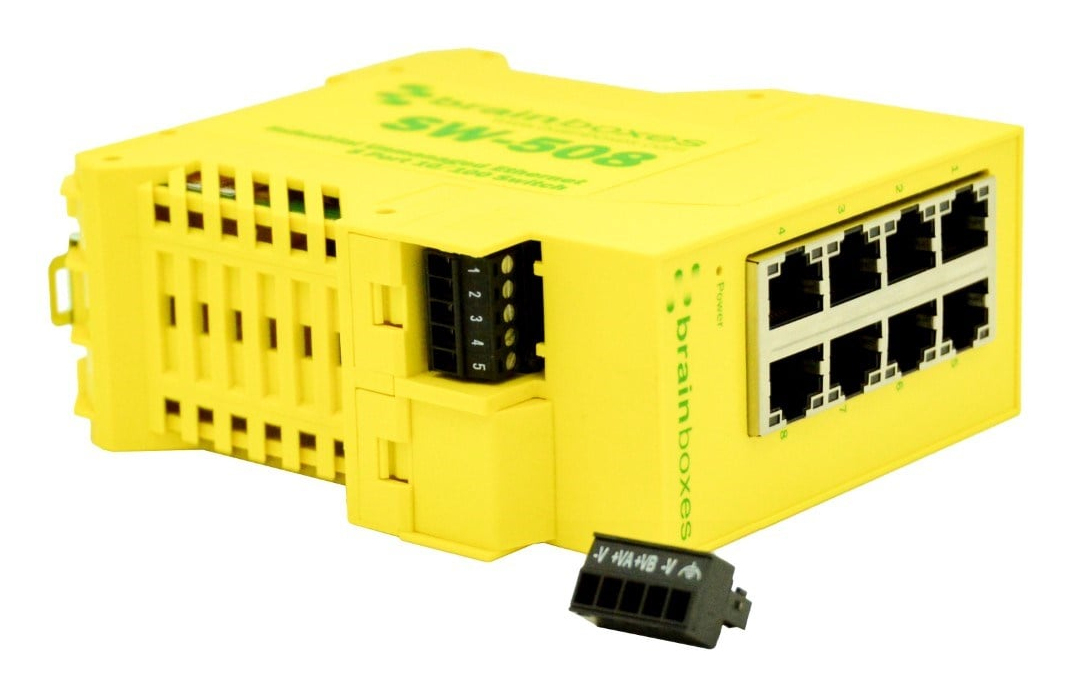

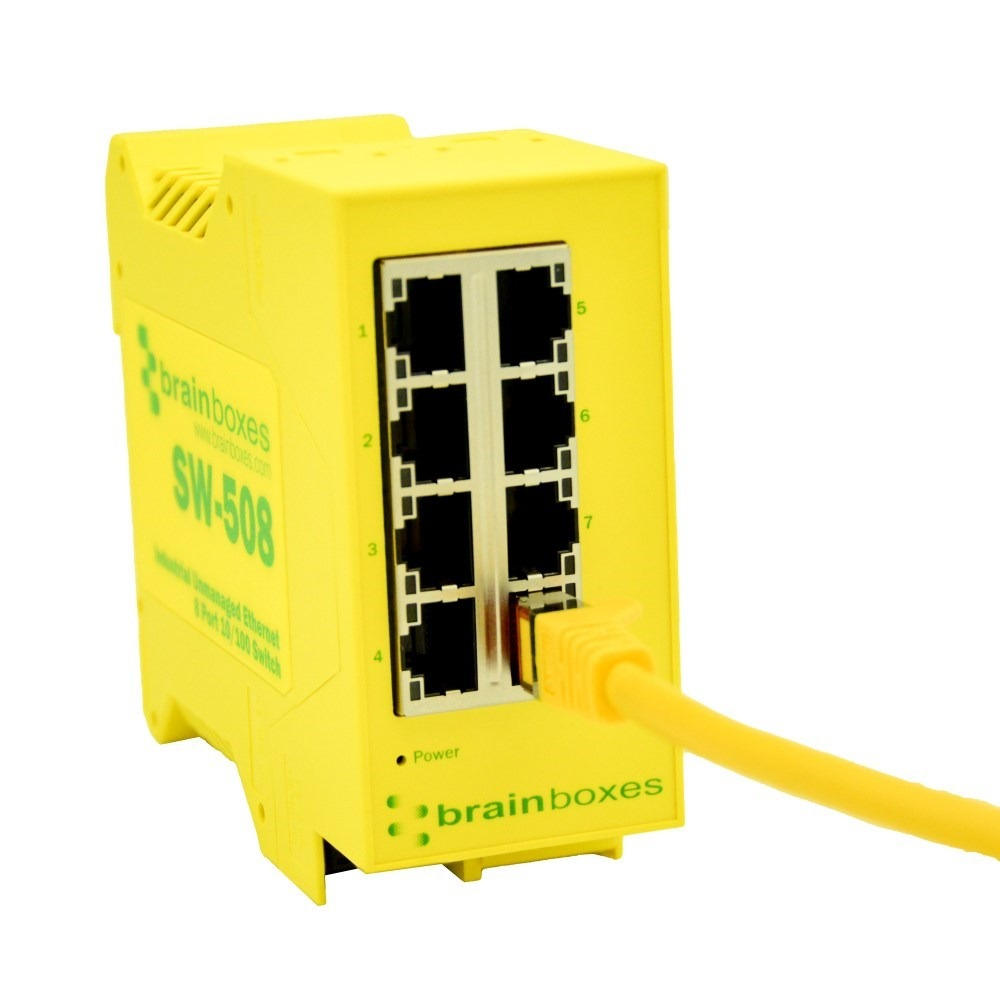

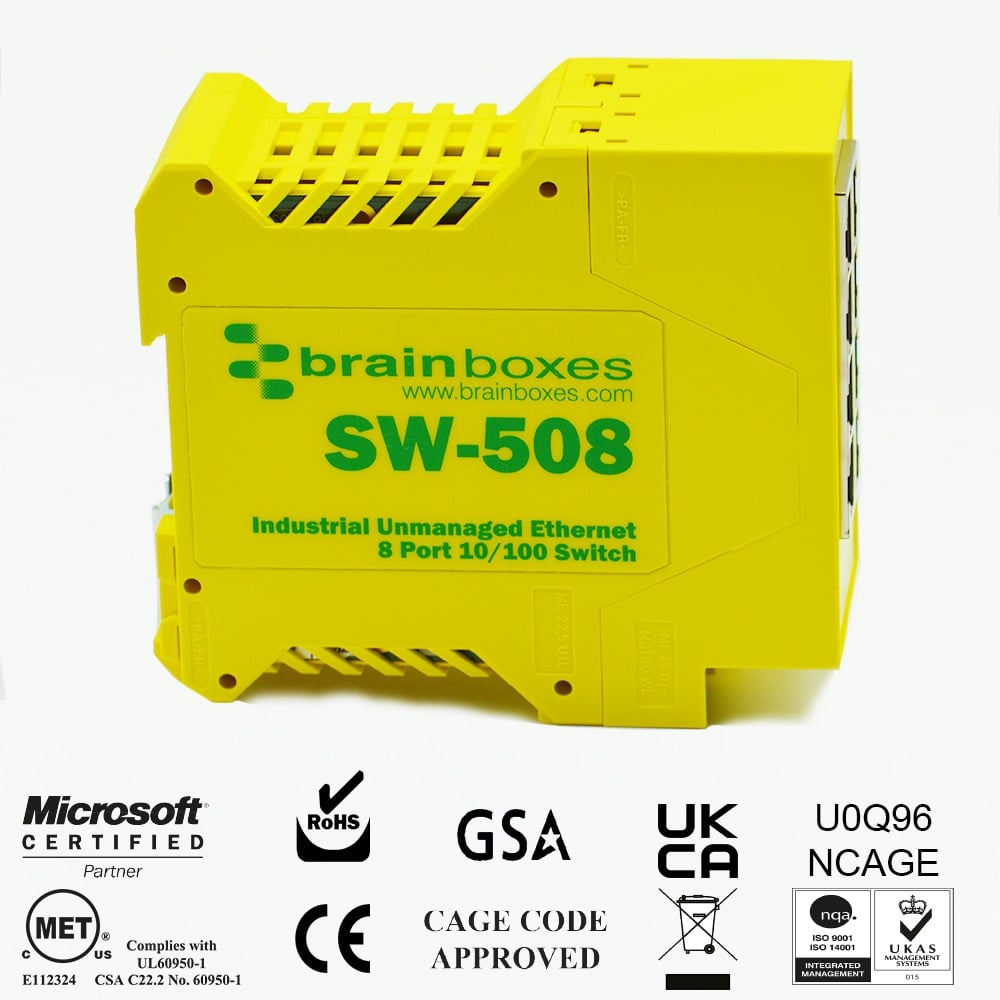

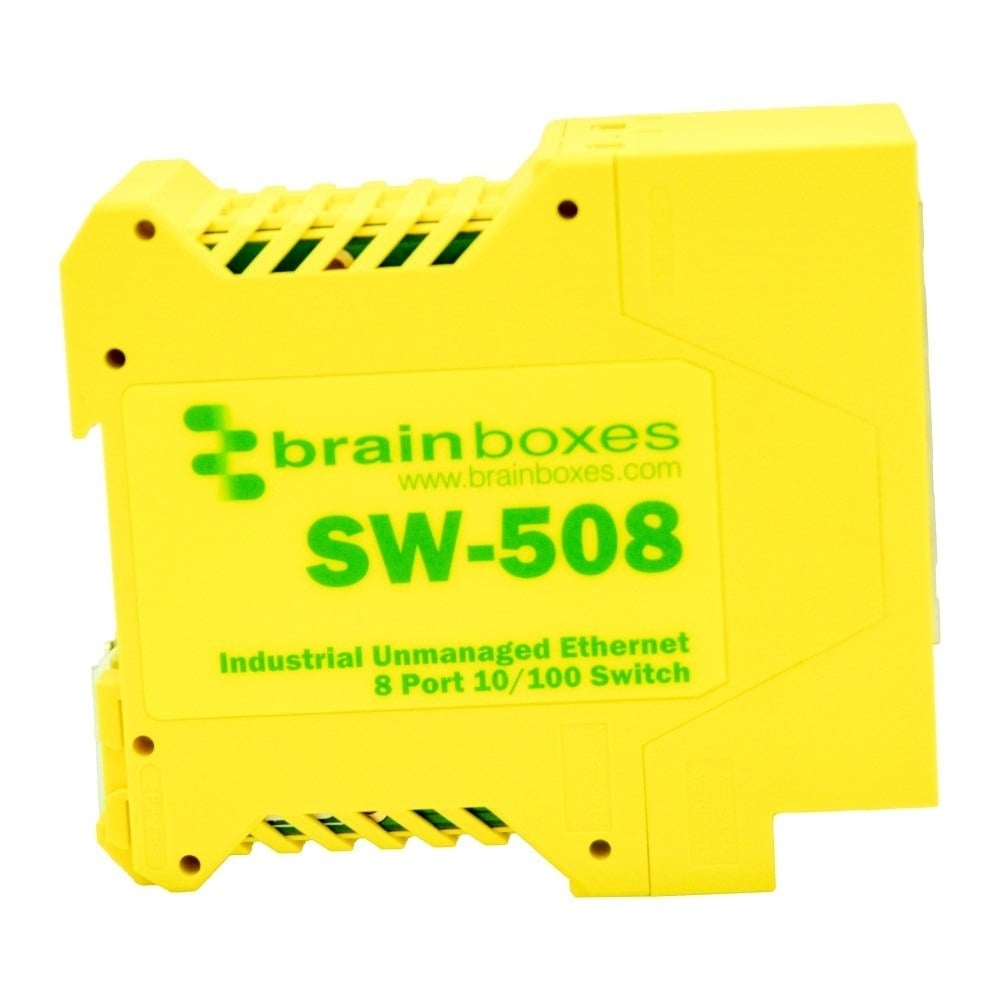

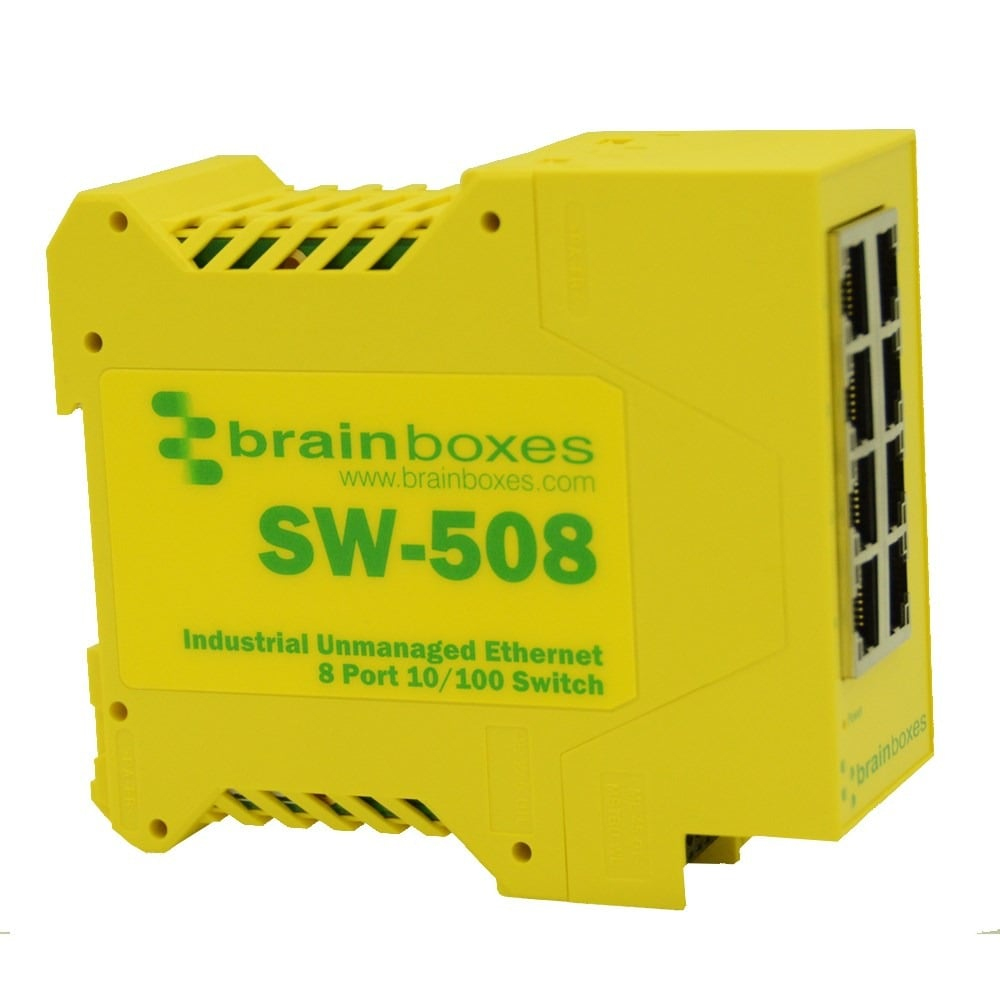

Brainboxes Industrial 8 Port 10/100 Ethernet Switch
Model SW-508EAN 837324003833
38 specifications
- TypeDIN rail
- Weight160 g
- ColourYellow
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Type
- DIN rail
- Weight
- 160 g
- Colour
- Yellow
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- Brainboxes
- Category
- Network Switch
- Model
- SW-508
- Part number
- SW-508
- EAN / UPC
- 837324003833, 4054842018774
- Also known as
- Brainboxes Industrial 8 Port 10/100 Ethernet Switch
Specifications
38 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Jumbo frames support | No |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |

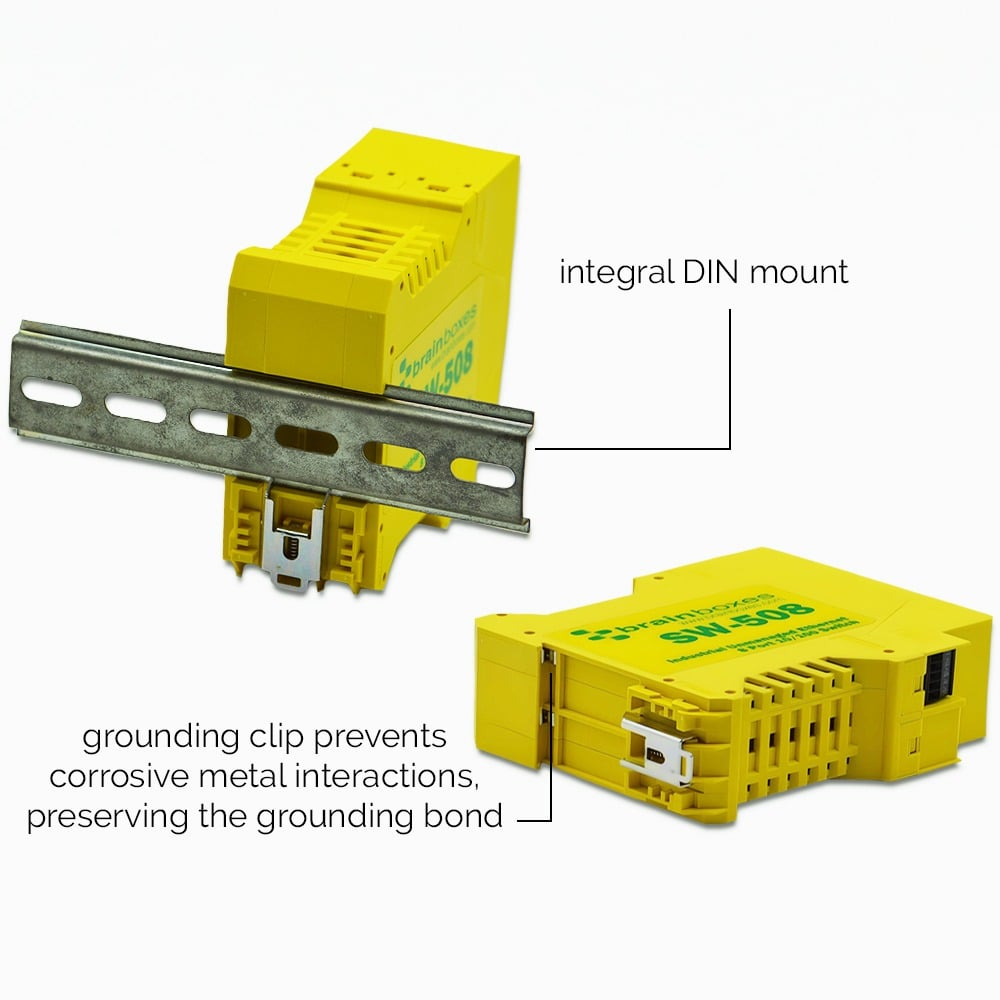

| Form factor | DIN rail |
| Product colour | Yellow |
| Housing material | Polyamide |
| LED indicators | Yes |

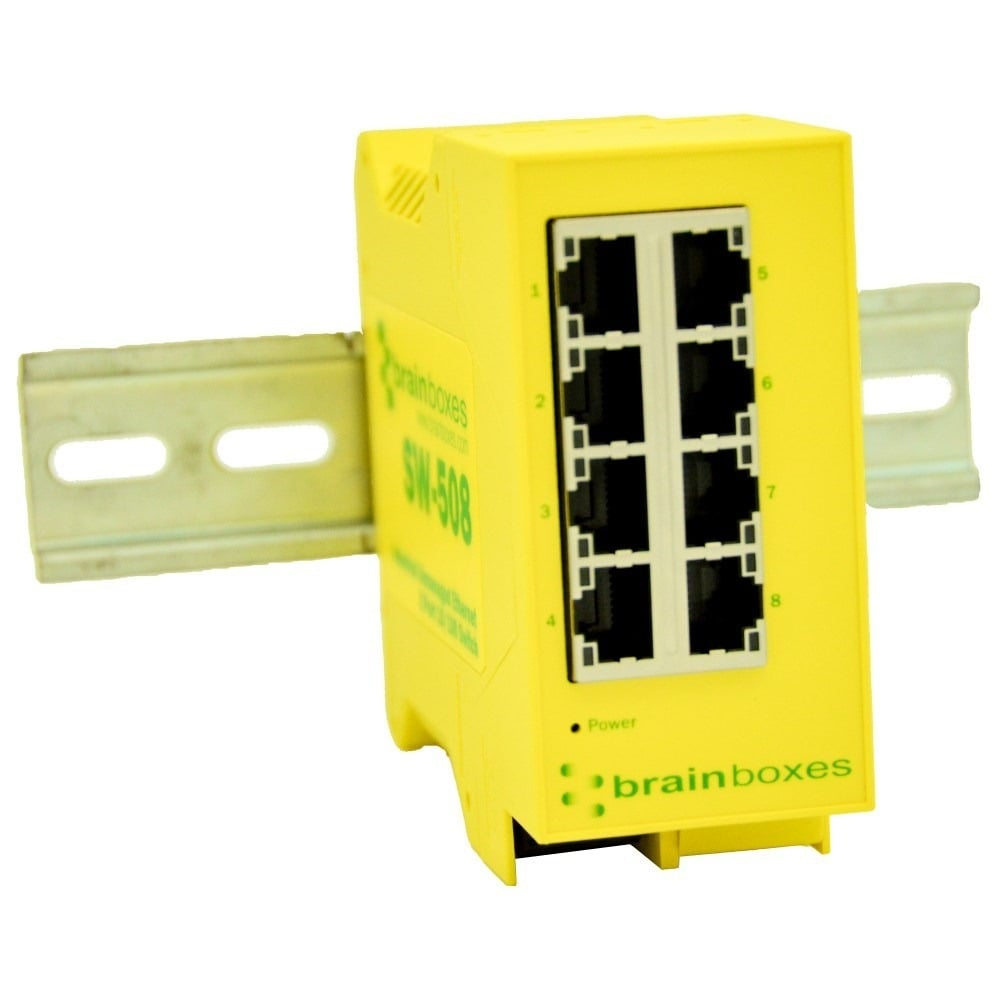

| DIN rail mounting | Yes |
| International Protection (IP) code | IP20 |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Power
| Specification | Value |
|---|---|
| Power source | DC |

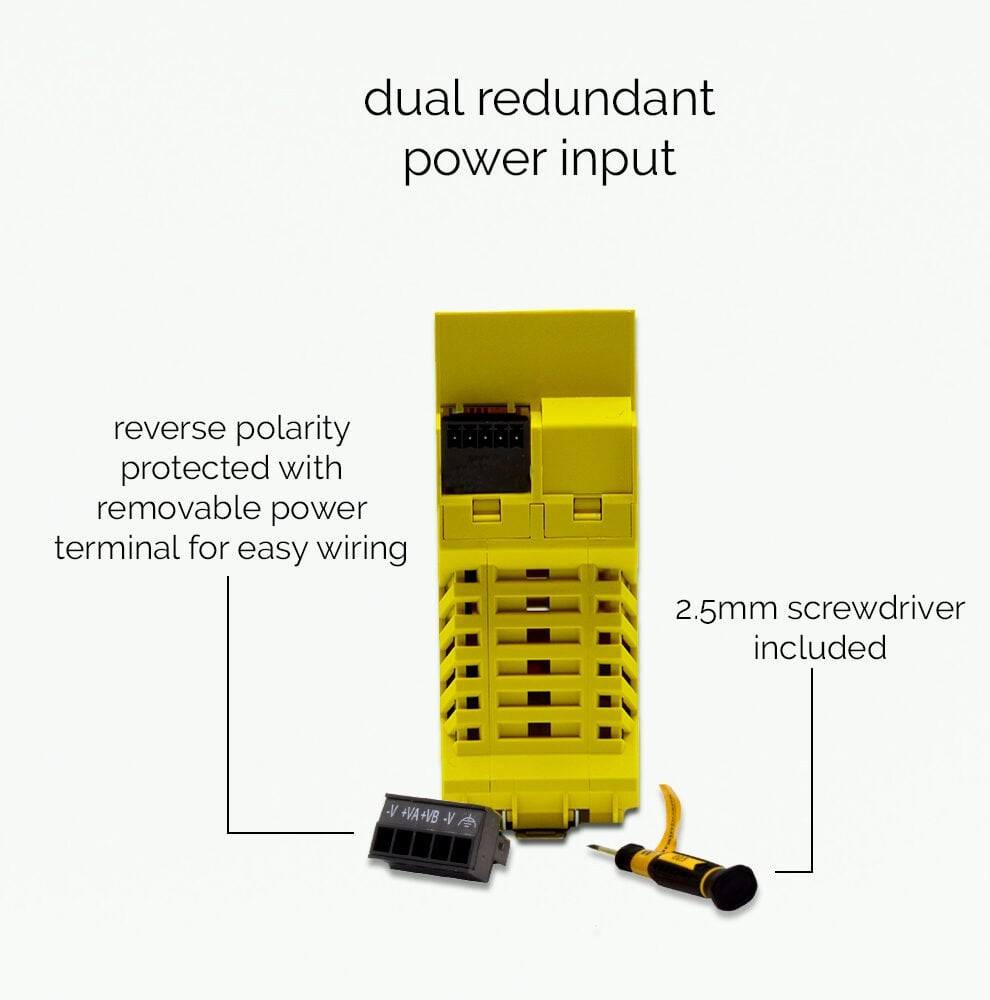

| Redundant power supply (RPS) support | Yes |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 1.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |

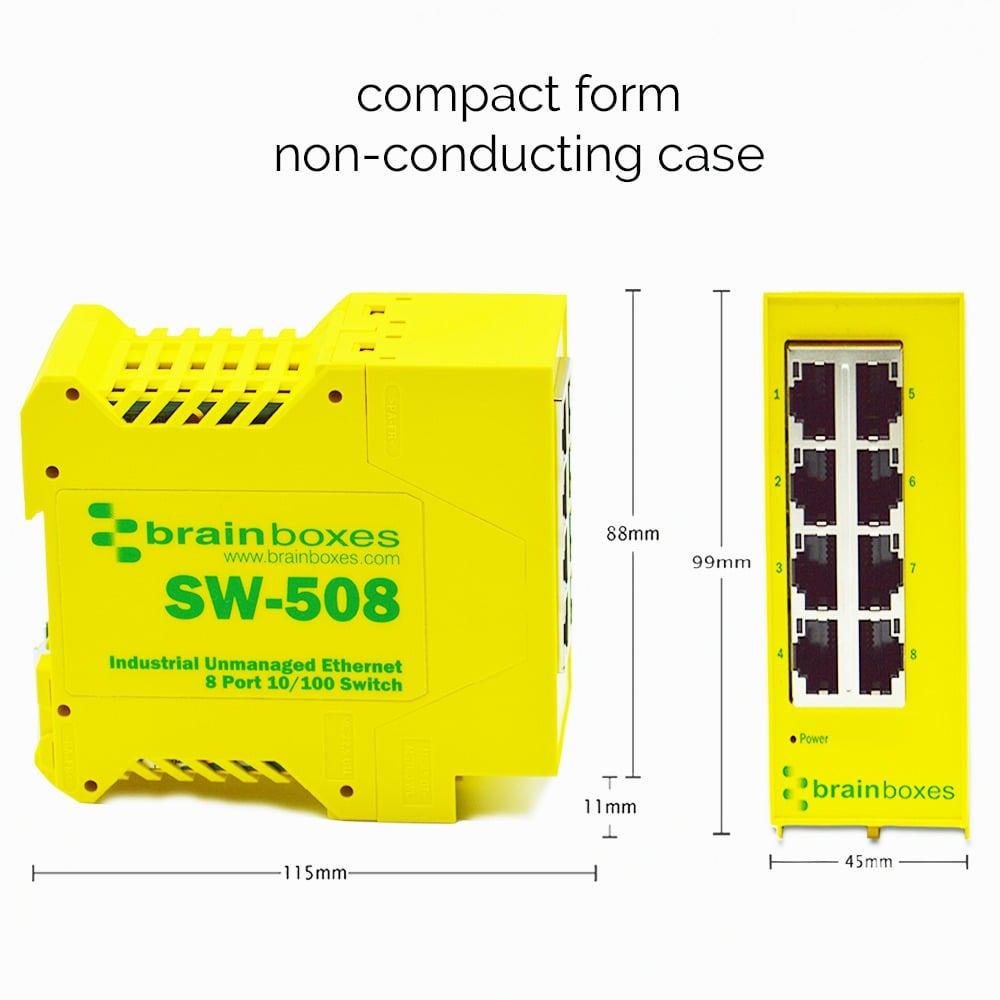

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 99 mm |
| Depth | 94 mm |
| Height | 23 mm |
| Weight | 160 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 49 mm |
| Package depth | 160 mm |
| Package height | 135 mm |
| Package weight | 199 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 851762 |
What people say
Reviews & ratings
Brainboxes Industrial 8 Port 10/100 Ethernet Switch
No reviews yet
Be the first to tell others how Brainboxes Industrial 8 Port 10/100 Ethernet Switch works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Brainboxes Industrial 8 Port 10/100 Ethernet Switch

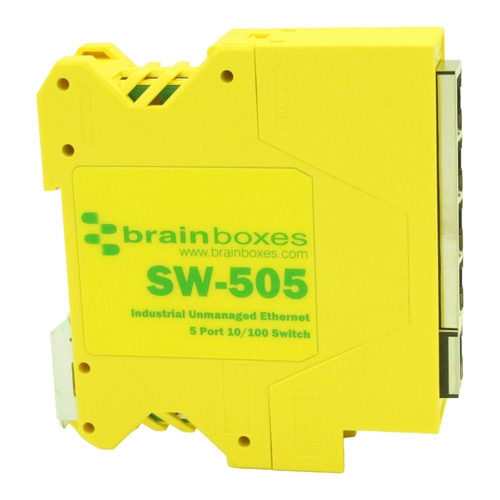

All network switch comparisons- Brainboxes Industrial 8 Port 10/100 Ethernet Switch vsBrainboxes Industrial 5 Port 10/100 Ethernet SwitchCompare specs

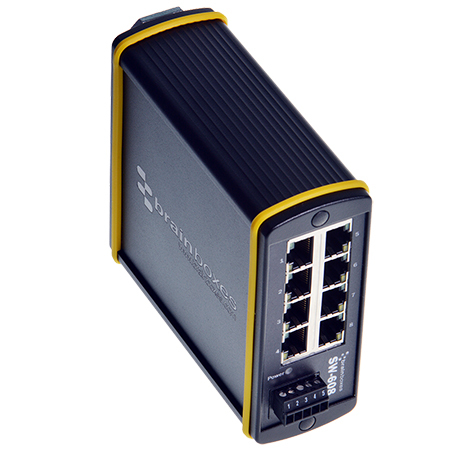

- Brainboxes Industrial 8 Port 10/100 Ethernet Switch vsBrainboxes SW-608 network switch Unmanaged Fast Ethernet (10/100) Black, YellowCompare specs
- Brainboxes Industrial 8 Port 10/100 Ethernet Switch vsBrainboxes Light Industrial 5 Port 10/100 Ethernet SwitchCompare specs

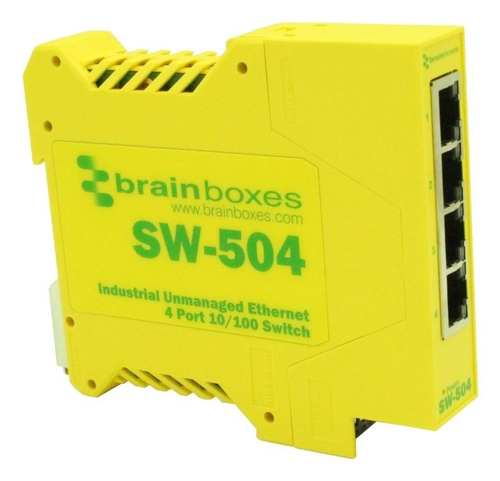

- Brainboxes Industrial 8 Port 10/100 Ethernet Switch vsBrainboxes Industrial 4 Port 10/100 Ethernet SwitchCompare specs
- Brainboxes Industrial 8 Port 10/100 Ethernet Switch vsTP-Link T1600G-52TS (TL-SG2452)Compare specs
- Brainboxes Industrial 8 Port 10/100 Ethernet Switch vsLenovo B300 ManagedCompare specs
- Brainboxes Industrial 8 Port 10/100 Ethernet Switch vsTP-Link JetStream 24-Port Gigabit Stackable Smart Network Switch with 4 10GE SFP+ SlotsCompare specs

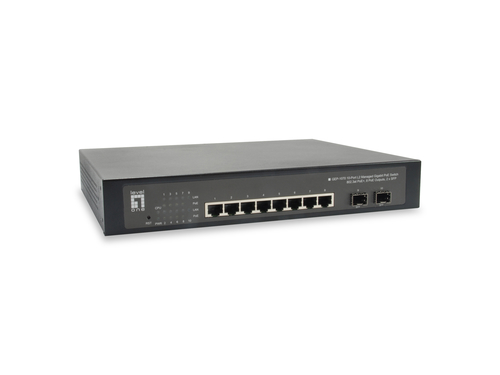

- Brainboxes Industrial 8 Port 10/100 Ethernet Switch vsLevelOne 10-Port L2 Managed Gigabit PoE Switch, 802.3at/af PoE, 2 x SFPCompare specs
