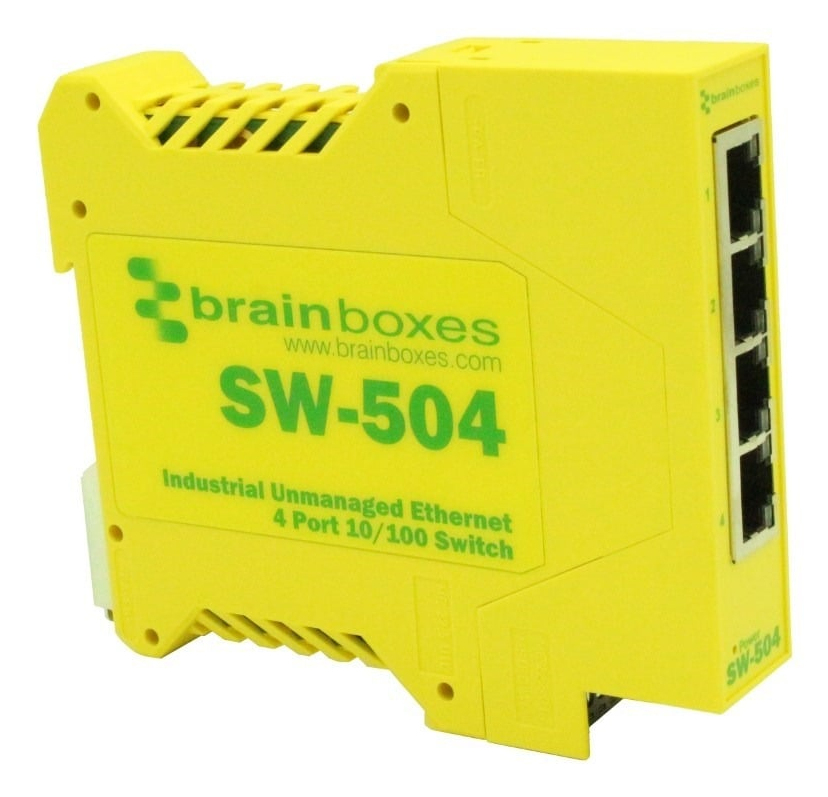

Brainboxes Industrial 4 Port 10/100 Ethernet Switch
Model SW-504EAN 8716065308150
31 specifications
- TypeDIN rail
- Weight125 g
- ColourYellow
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
Overview
- Type
- DIN rail
- Weight
- 125 g
- Colour
- Yellow
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- Brand
- Brainboxes
- Category
- Network Switch
- Model
- SW-504
- Part number
- SW-504
- EAN / UPC
- 8716065308150, 723856592146, 808113096695, 809395430801 +4 more
- Also known as
- Brainboxes Industrial 4 Port 10/100 Ethernet Switch
Specifications
31 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| 10G support | No |
| Ethernet LAN data rates | 10,100 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Jumbo frames support | No |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |

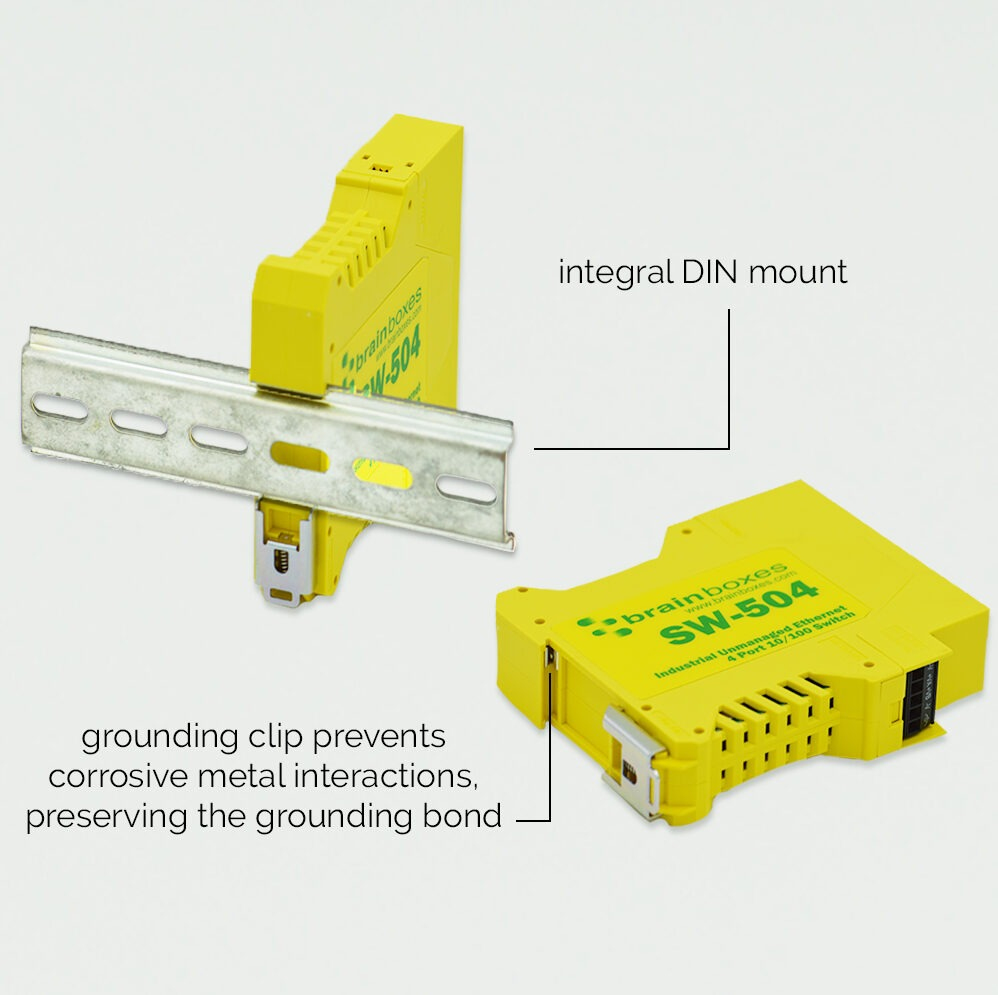

| Form factor | DIN rail |
| Product colour | Yellow |
| International Protection (IP) code | IP20 |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |

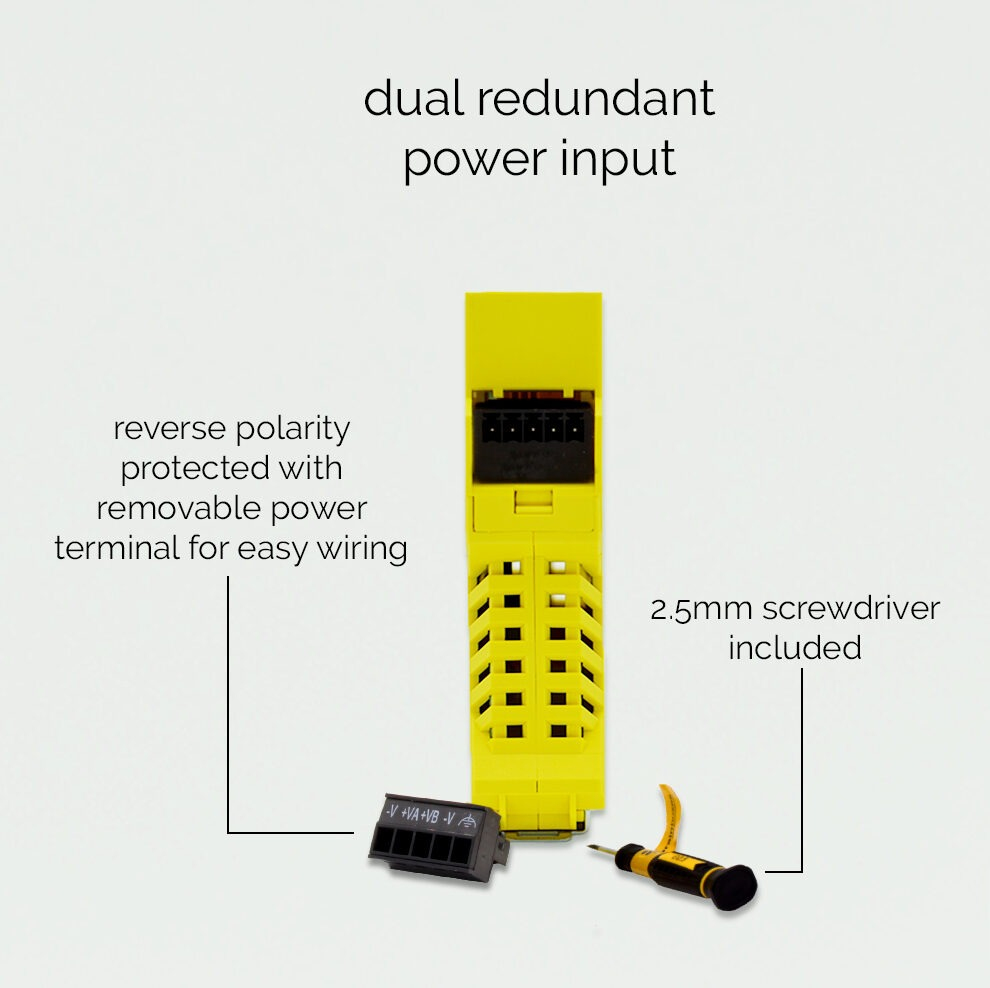

Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 5 - 30 V |
| Power consumption (typical) | 1.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |

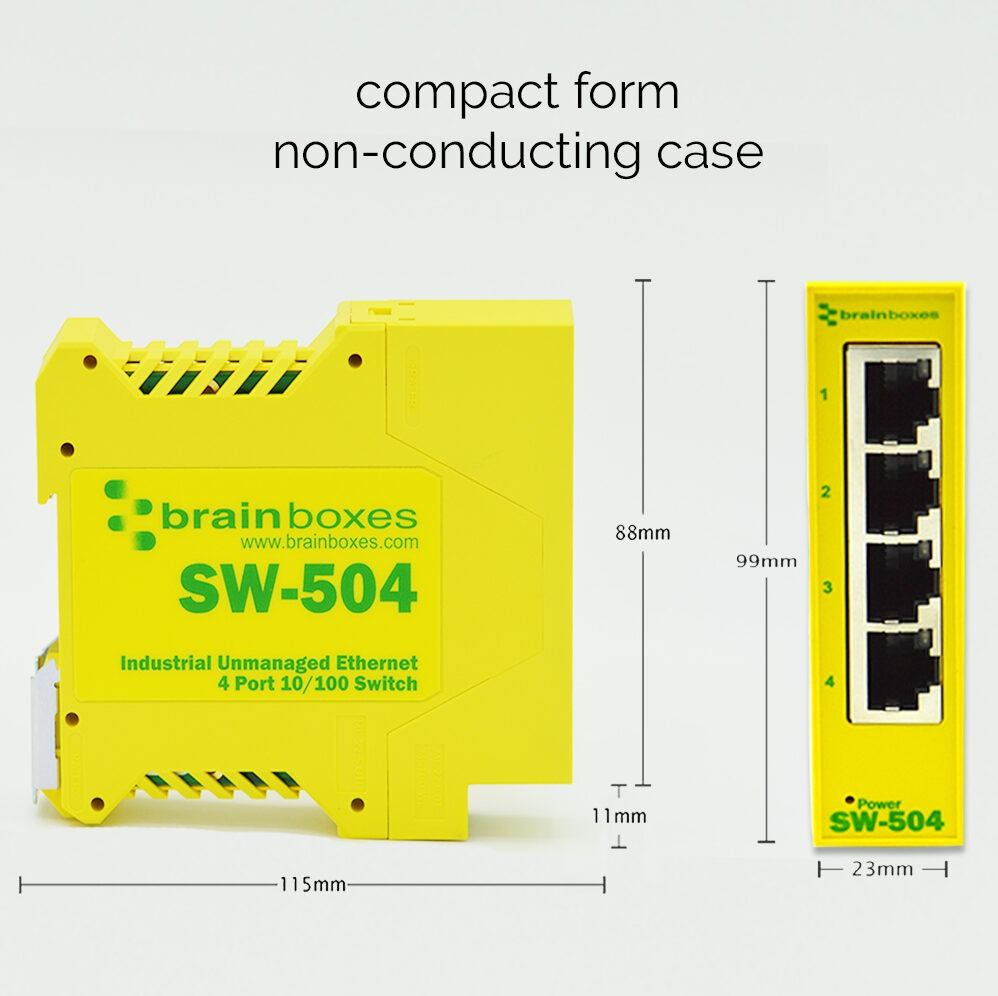

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 118 mm |
| Depth | 100 mm |
| Height | 23 mm |
| Weight | 125 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 199 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 851762 |
