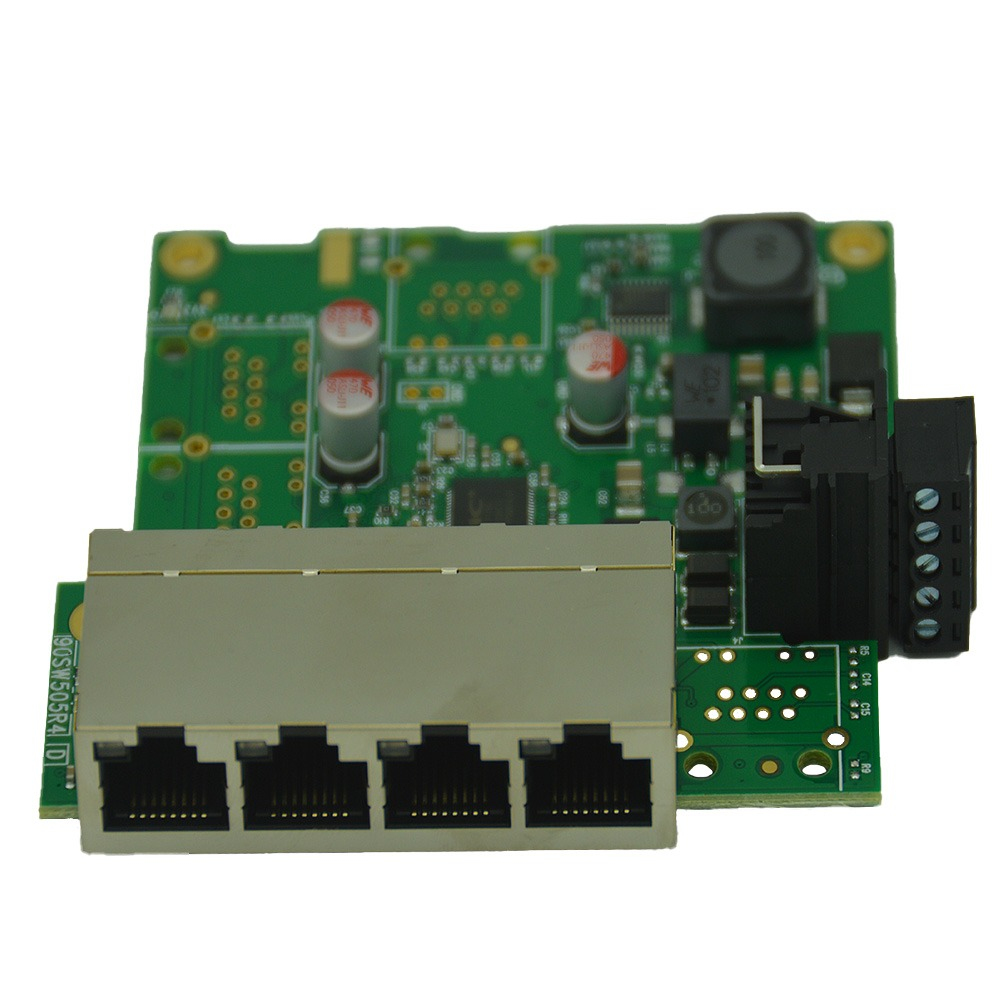

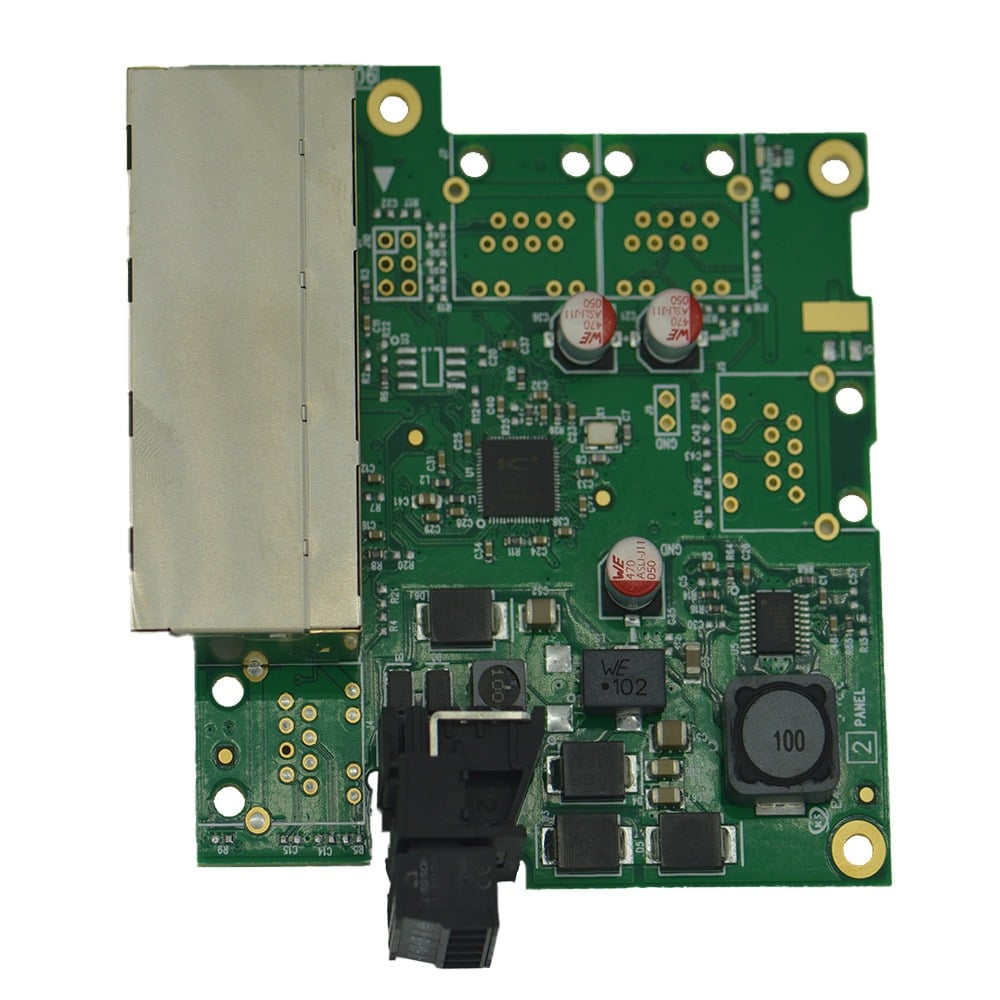

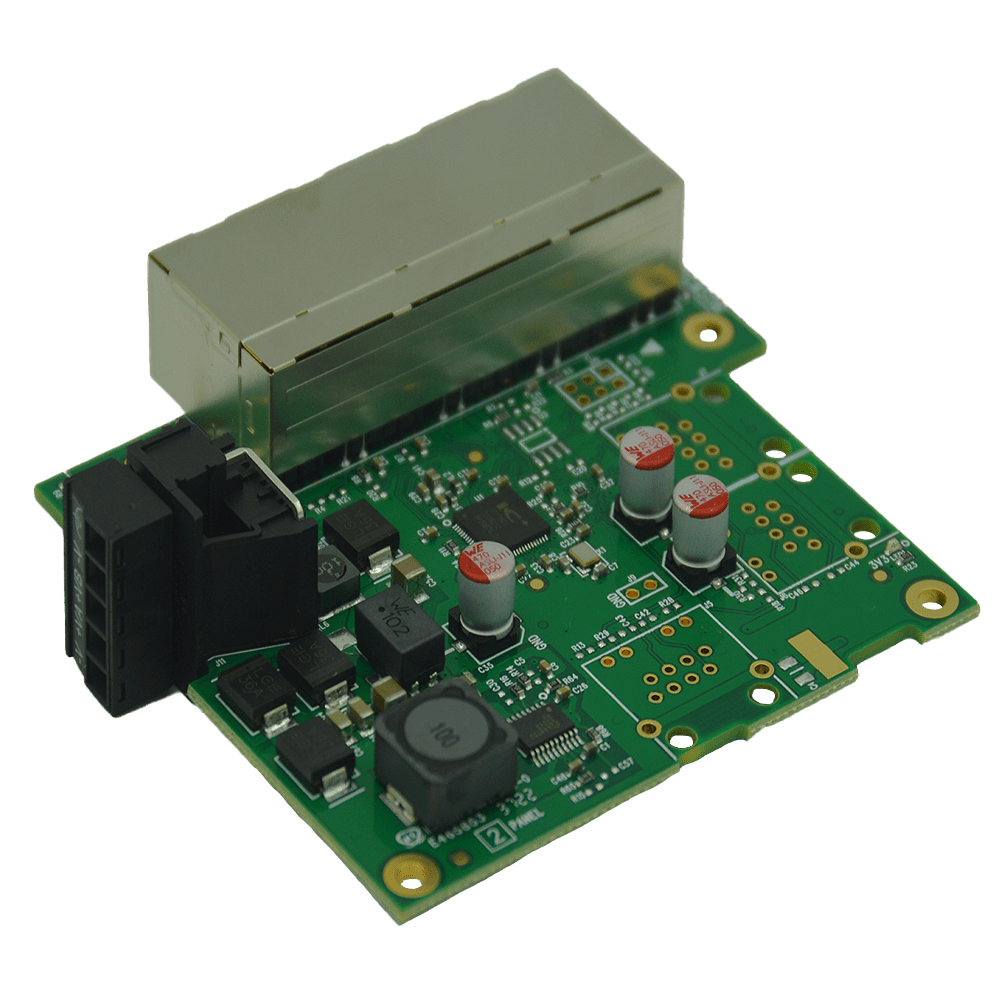

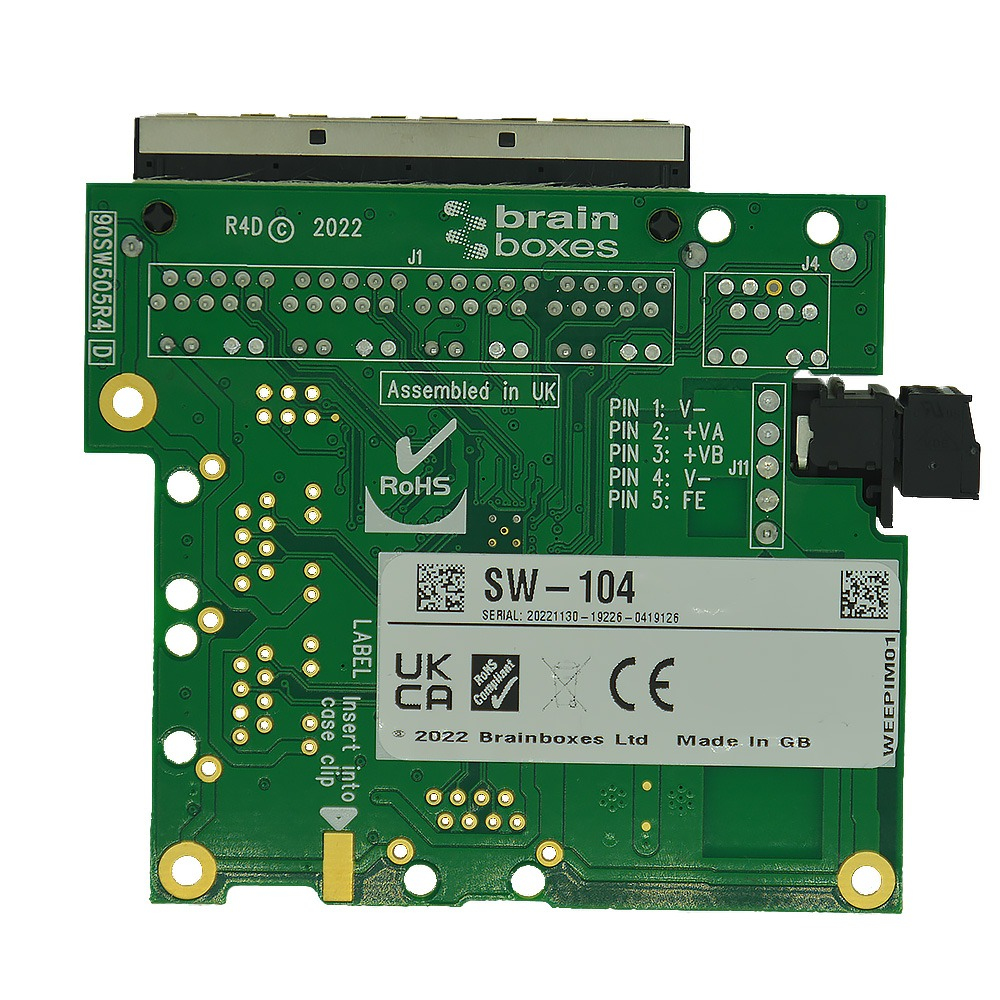

Brainboxes Embedded Industrial 4 Port 10/100 Ethernet Switch
Model SW-104EAN 837324004175
26 specifications
- TypeEmbedded
- Weight270 g
- ColourGreen
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
Overview
- Type
- Embedded
- Weight
- 270 g
- Colour
- Green
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- Brand
- Brainboxes
- Category
- Network Switch
- Model
- SW-104
- Part number
- SW-104
- EAN / UPC
- 837324004175
- Also known as
- Brainboxes Embedded Industrial 4 Port 10/100 Ethernet Switch
Specifications
26 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network
| Specification | Value |
|---|---|
| 10G support | No |
| Ethernet LAN data rates | 10,100 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Form factor | Embedded |
| Product colour | Green |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 5 - 30 V |
| Power consumption (typical) | 1.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |

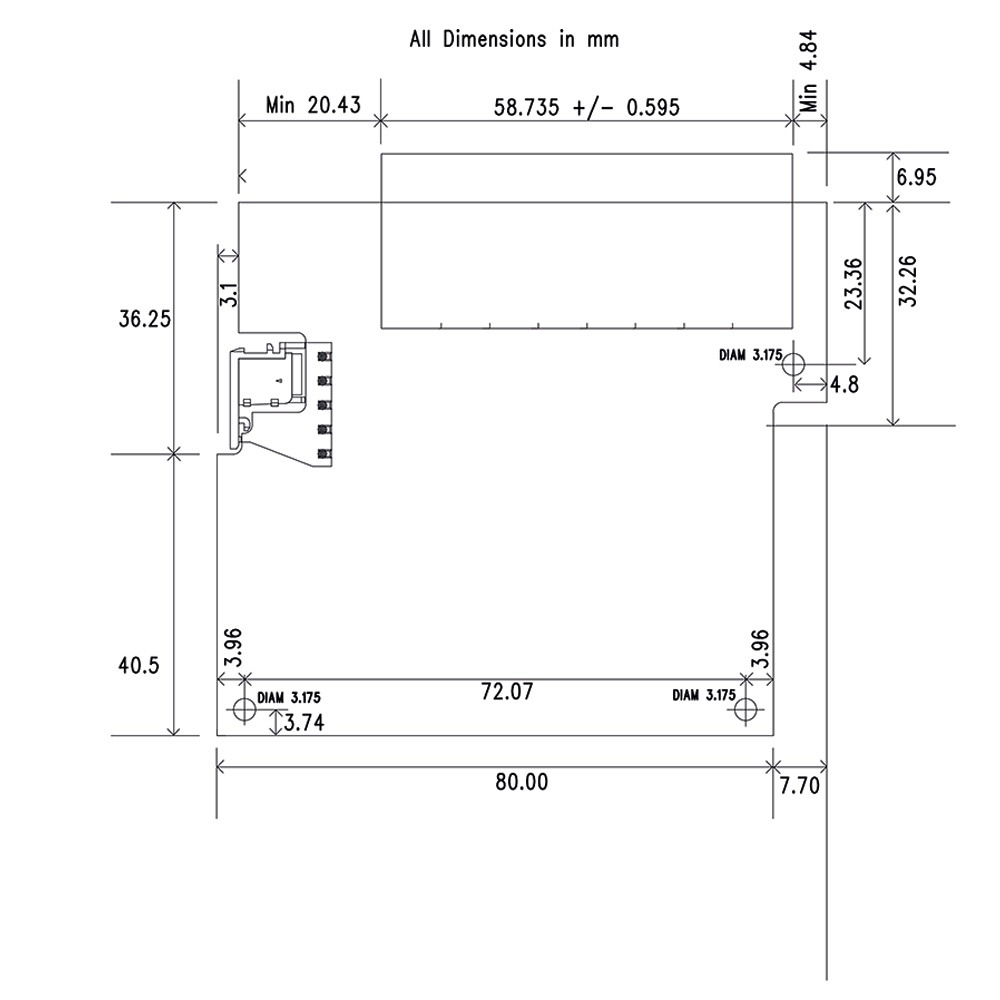

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 99 mm |
| Depth | 95 mm |
| Height | 29 mm |
| Weight | 270 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 338 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 851762 |
