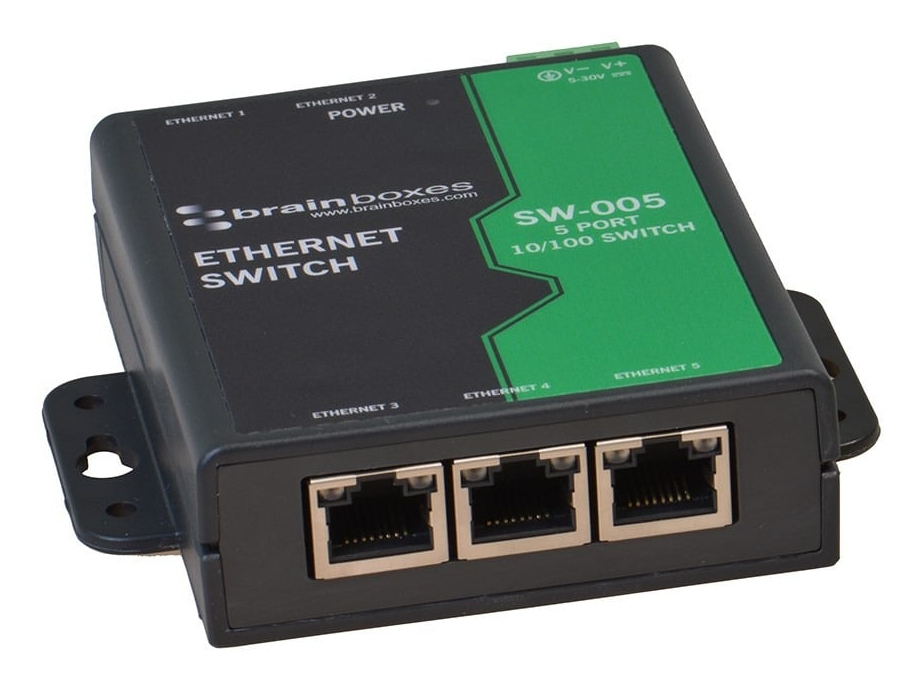

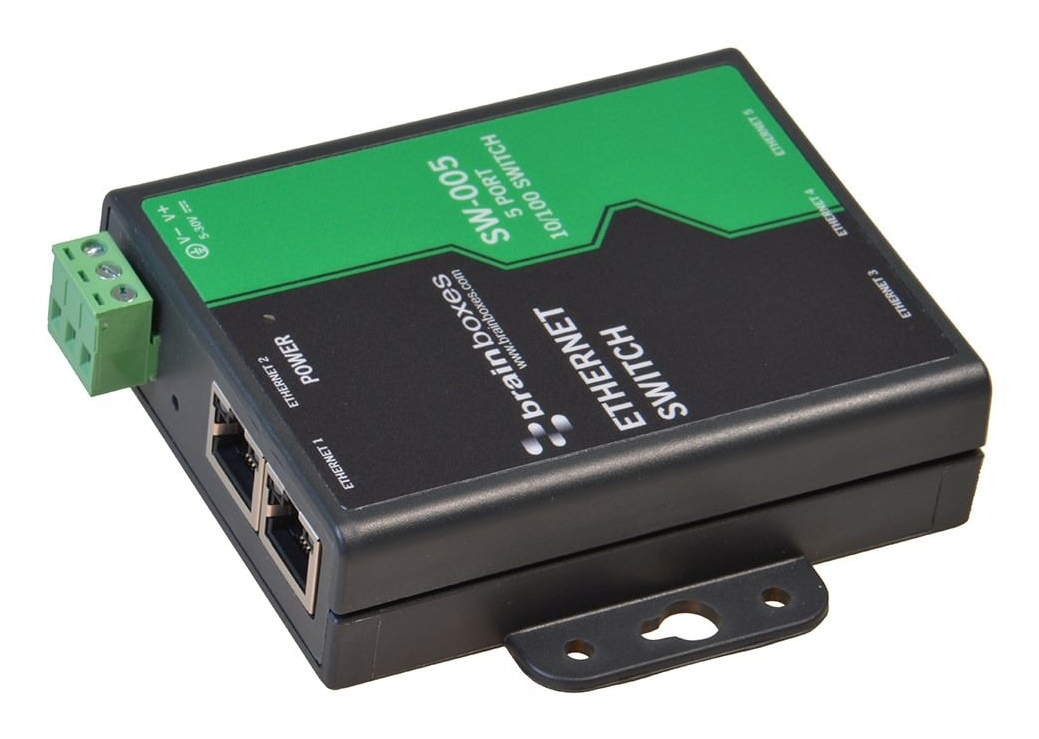

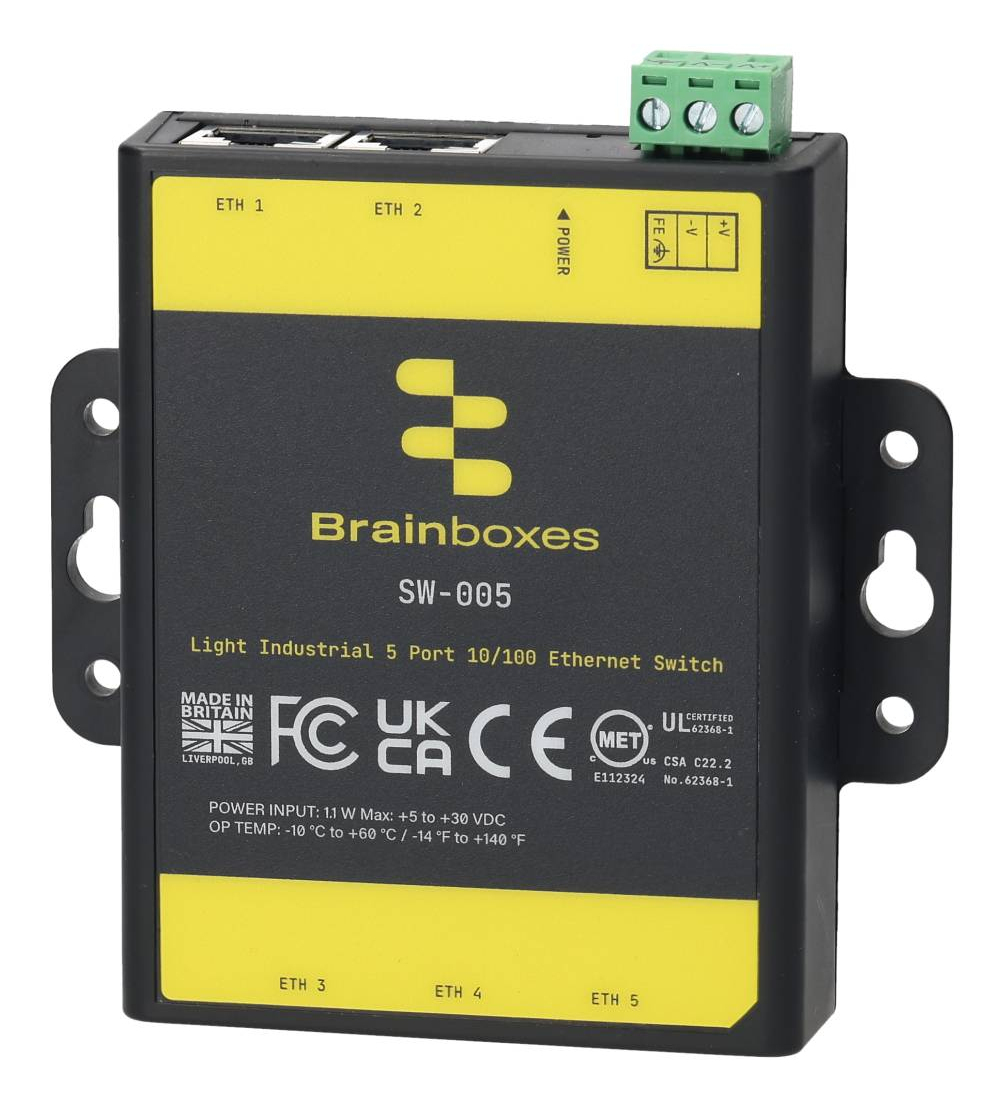

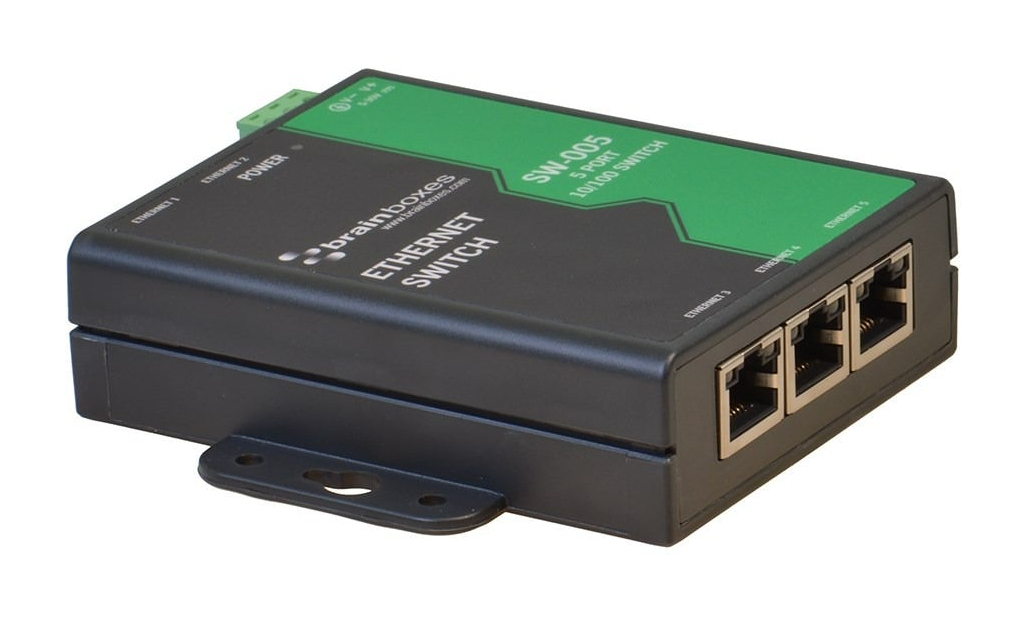

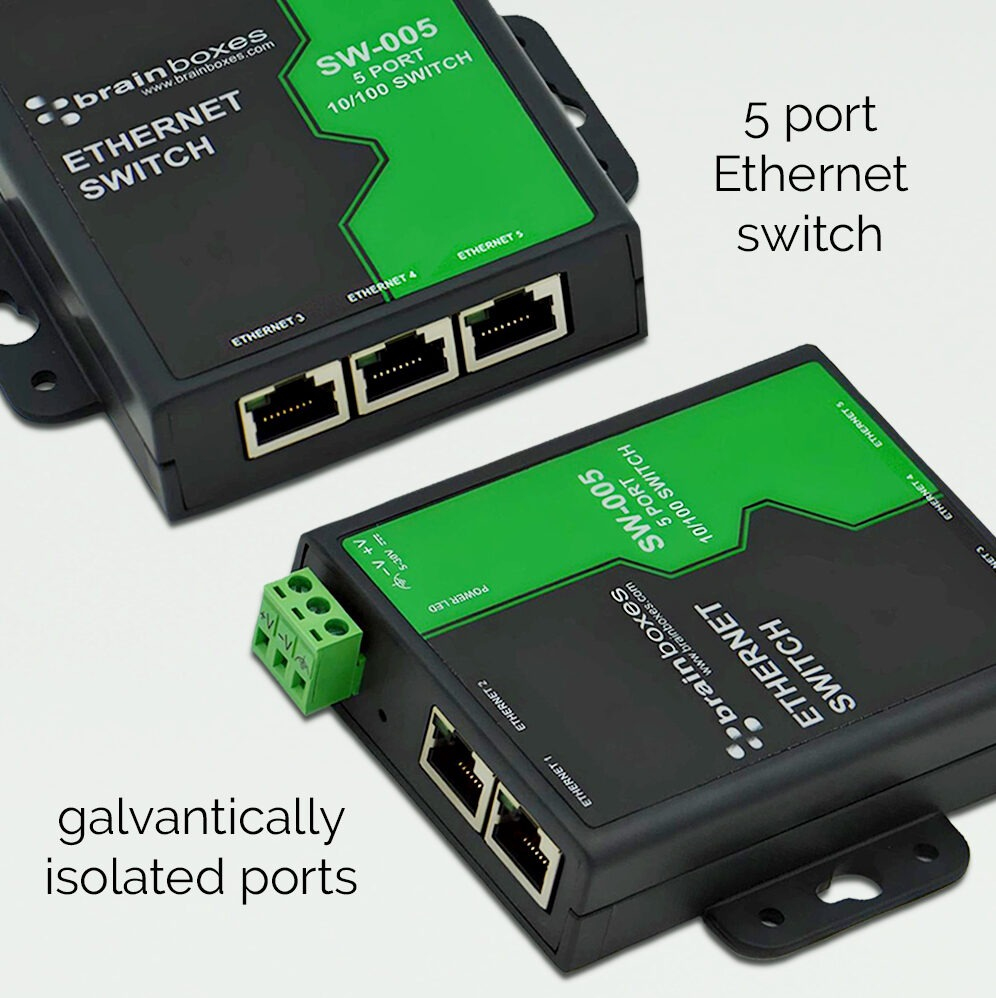

Brainboxes Light Industrial 5 Port 10/100 Ethernet Switch
Model SW-005EAN 8373240098666
40 specifications
- TypeDIN rail
- Weight132 g
- ColourBlack, Green
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
Overview
- Type
- DIN rail
- Weight
- 132 g
- Colour
- Black, Green
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Brand
- Brainboxes
- Category
- Network Switch
- Model
- SW-005
- Part number
- SW-005
- EAN / UPC
- 8373240098666, 153908811923, 515343995512, 801947315512 +8 more
- Also known as
- Brainboxes Light Industrial 5 Port 10/100 Ethernet Switch
Specifications
40 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |

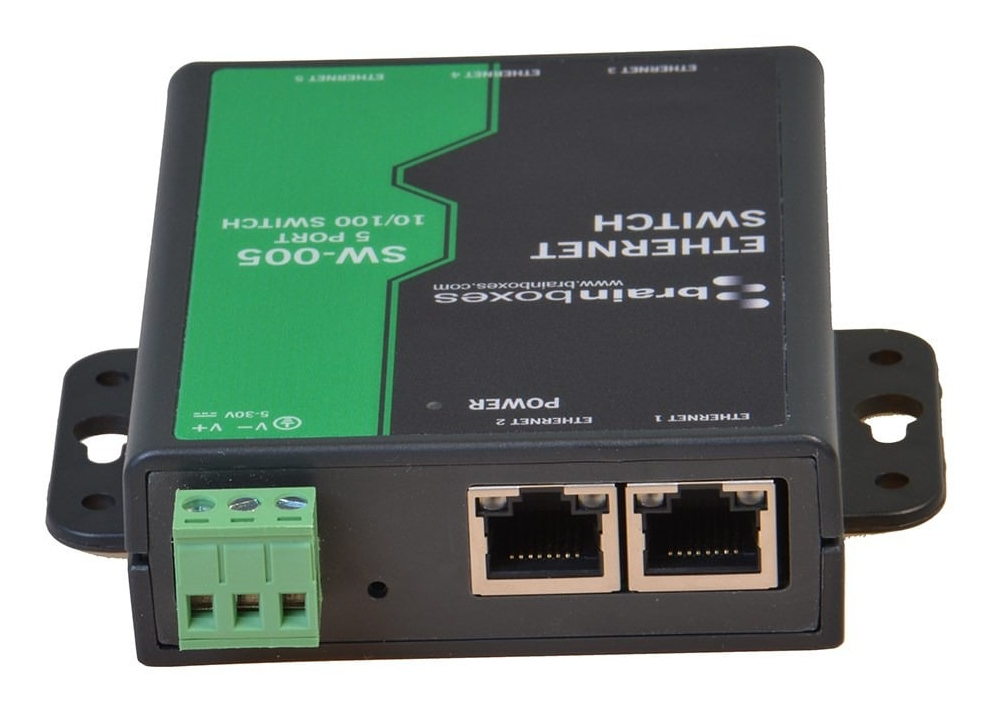

| Power connector | Terminal block (3-pin) |
Network
| Specification | Value |
|---|---|
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
Data transmission
| Specification | Value |
|---|---|
| Jumbo frames support | No |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Form factor | DIN rail |
| Product colour | Black, Green |
| Housing material | Polyamide |
| LED indicators | Activity, Link, Speed |

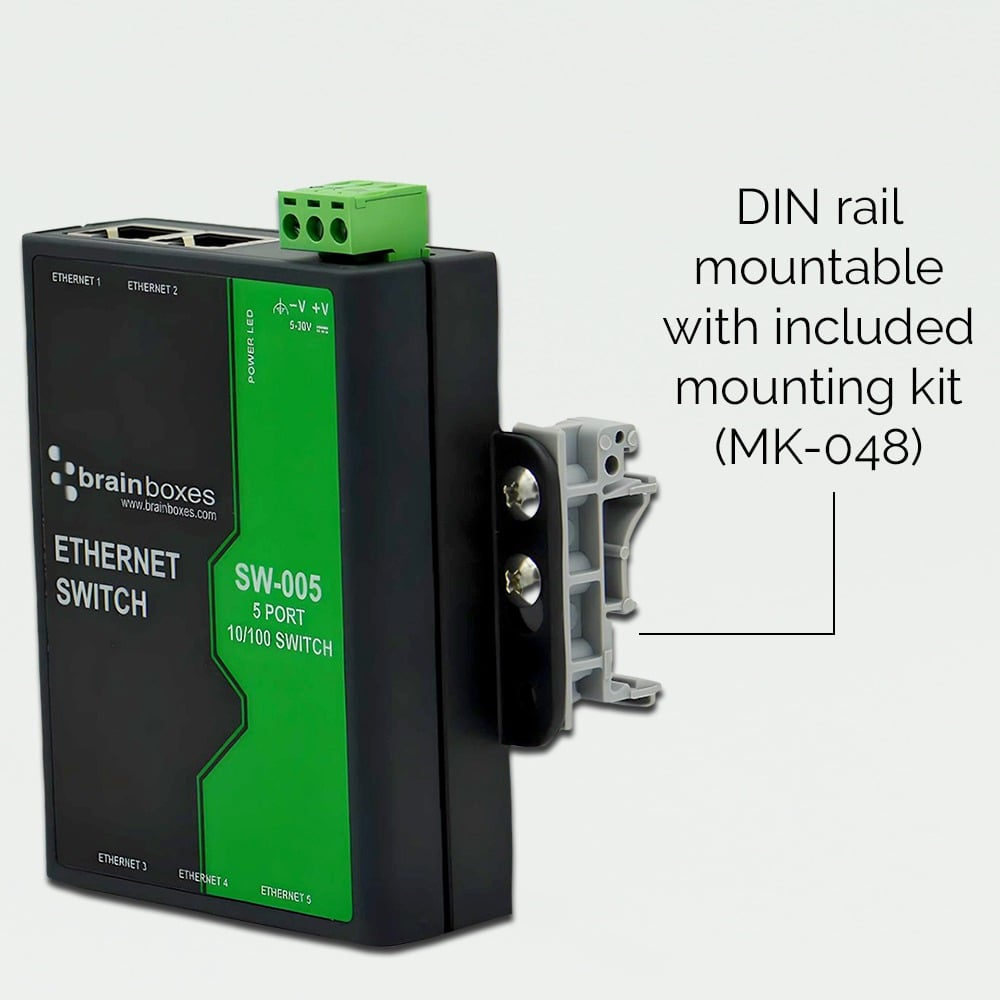

| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |

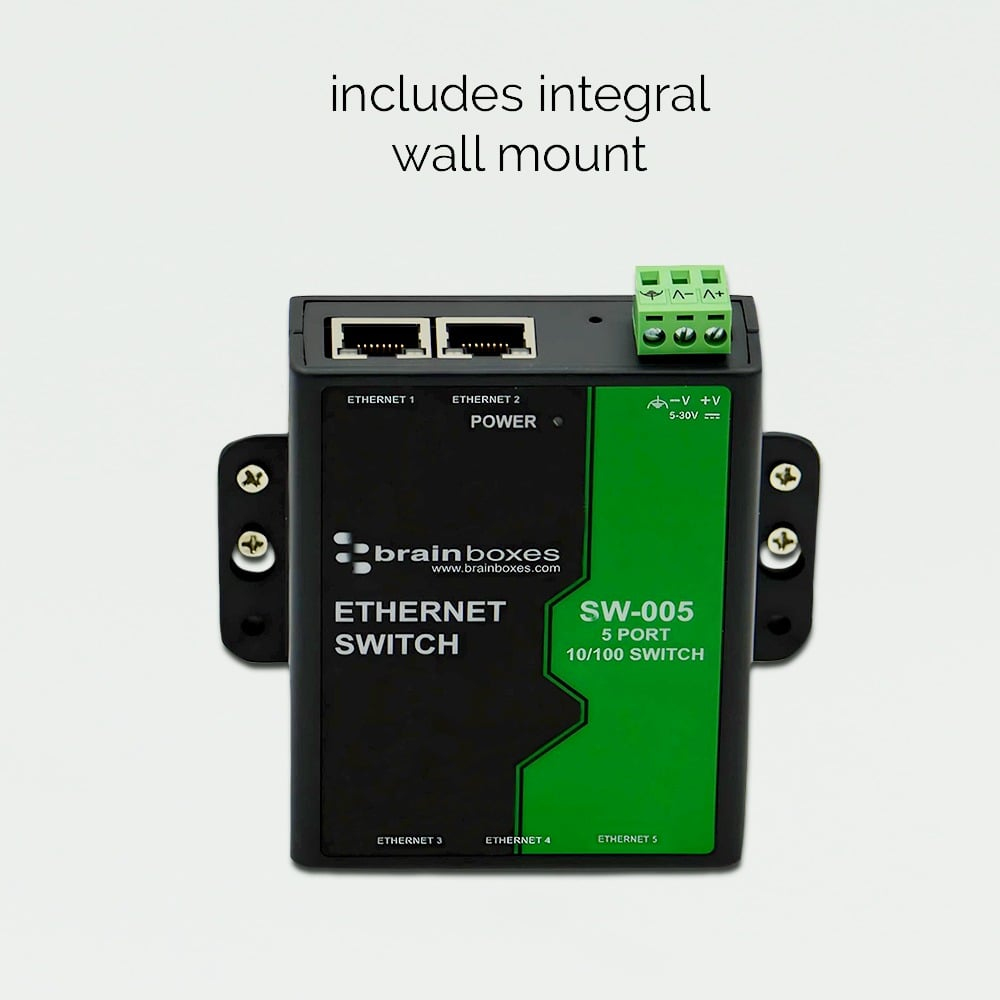

| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 1.1 W |
| Power consumption note | 1.1W Max: 220mA @+5VDC / 36mA @+30VDC |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100.8 mm |
| Depth | 106.6 mm |
| Height | 25.8 mm |
| Weight | 132 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 221 g |
Certificates
| Specification | Value |
|---|---|

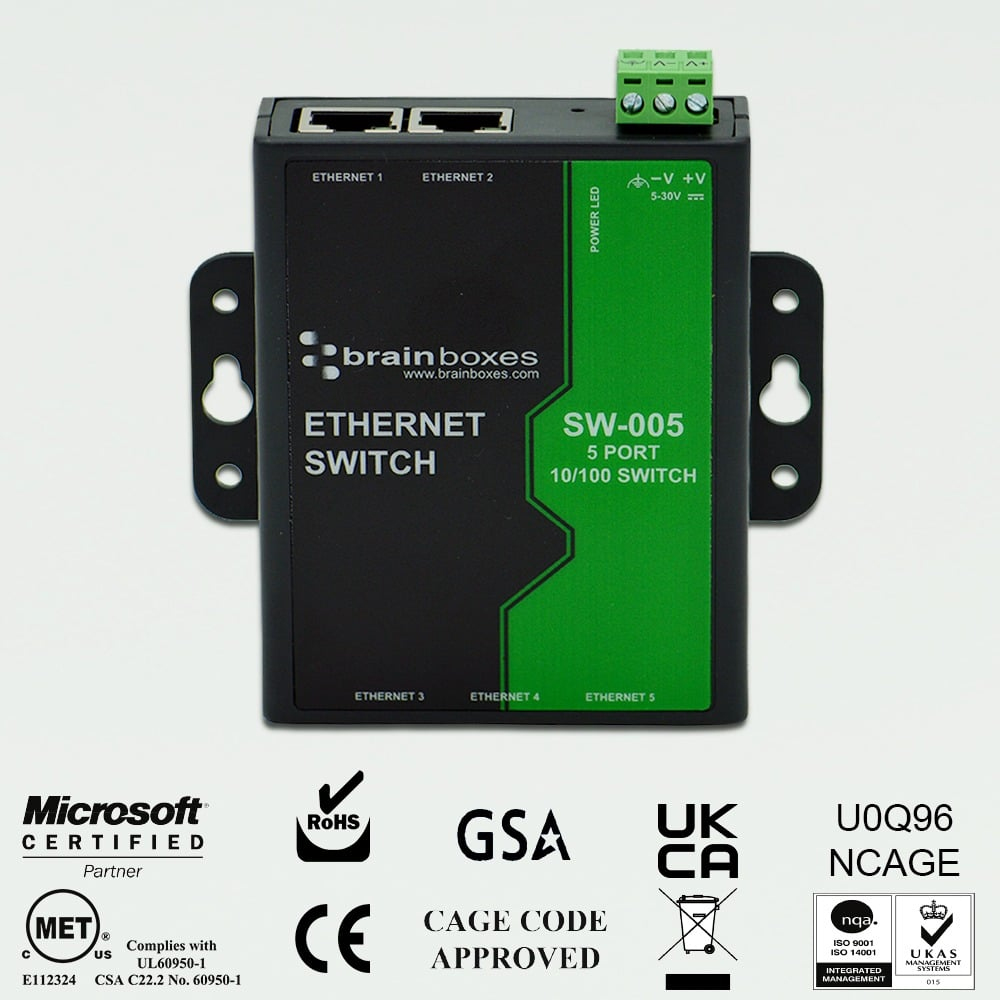

| Certification | CE, WEEE, RoHS, AEO |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 851762 |
