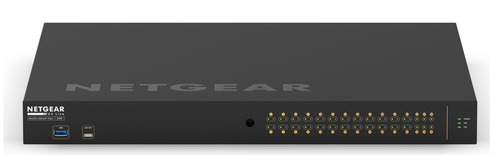

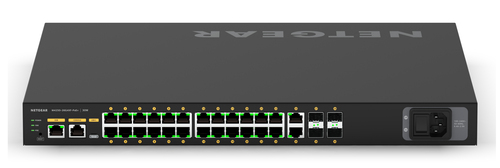

NMS-NG26GPX-AVB Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model NMS-NG26GPX-AVBPart no. 911.1976.900
40 specifications
- ProcessorARM Cortex-A57
- Noise42 dB
- Type1U
- Weight5.45 kg
- ColourBlack
- Switch typeManaged
Overview
- Processor
- ARM Cortex-A57
- Noise
- 42 dB
- Type
- 1U
- Weight
- 5.45 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- Biamp
- Category
- Network Switch
- Model
- NMS-NG26GPX-AVB
- Part number
- 911.1976.900
- Also known as
- Biamp NMS-NG26GPX-AVB Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
40 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| IPv4 routes | 512 |
| IPv6 routes | 128 |
| VLAN support | Yes |
| Number of VLANs | 4 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16 entries |
| Switching capacity | 132 Gbit/s |
| Throughput | 98.21 Mpps |
| Latency (1 Gbps) | 2.29 µs |
| Latency (10 Gbps) | 0.83 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
Protocols
| Specification | Value |
|---|---|
| IPv4 FIB entries | 256 |
| IPv6 FIB entries | 16 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Temperature sensor | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | ARM Cortex-A57 |
| Noise level | 42 dB |
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | PoE |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 45 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 43.2 mm |
| Height | 400 mm |
| Weight | 5.45 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45), USB Type-C |
| Rack mount kit | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
