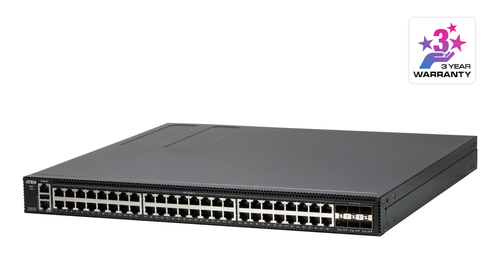

ES0154 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Black
Model ES0154EAN 672792015854
41 specifications
- Memory1000 MB
- Weight4.68 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportYes
Overview
- Memory
- 1000 MB
- Weight
- 4.68 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- Yes
- Brand
- ATEN
- Category
- Network Switch
- Model
- ES0154
- Part number
- ES0154
- EAN / UPC
- 672792015854
- Also known as
- ATEN ES0154 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Black
Specifications
41 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 6 |
| Fiber optic connector | SFP28 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 396 Gbit/s |
| Forwarding rate | 295 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | IGMP v1/v2/v3, IGMP v1/v2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1000 MB |
| Flash memory | 256 MB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 54 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 420 mm |
| Depth | 442 mm |
| Height | 43.6 mm |
| Weight | 4.68 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 550 mm |
| Package depth | 650 mm |
| Package height | 150 mm |
| Package weight | 7.18 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
