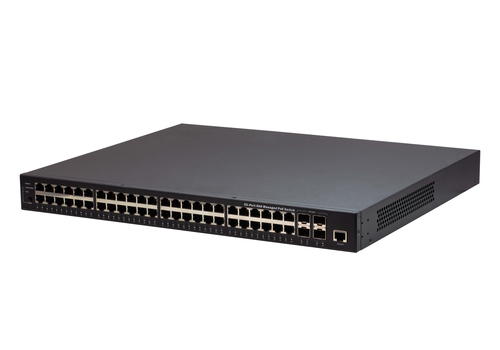

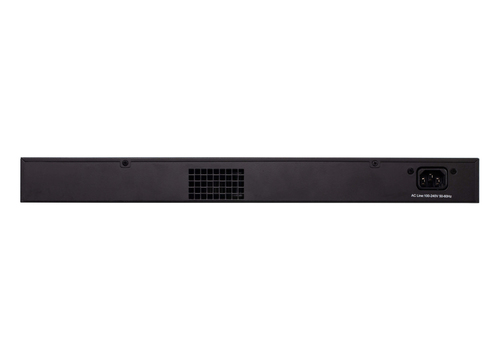

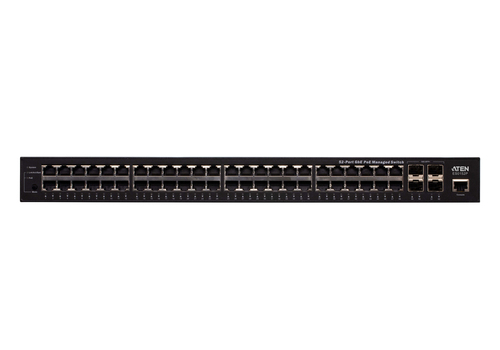

ES0152P-AX-E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model ES0152P-AX-E
40 specifications
- Weight5.93 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportYes
- Switching capacity176 Gbit/s
Overview
- Weight
- 5.93 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- Yes
- Switching capacity
- 176 Gbit/s
- Brand
- ATEN
- Category
- Network Switch
- Model
- ES0152P-AX-E
- Part number
- ES0152P-AX-E
- Also known as
- ATEN ES0152P-AX-E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
40 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1w, IEEE 802.3af, IEEE 802.3at |
| 10G support | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.95 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10240 |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 740 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 372 mm |
| Height | 44 mm |
| Weight | 5.93 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 470 mm |
| Package depth | 534 mm |
| Package height | 138 mm |
| Package weight | 6.82 kg |
