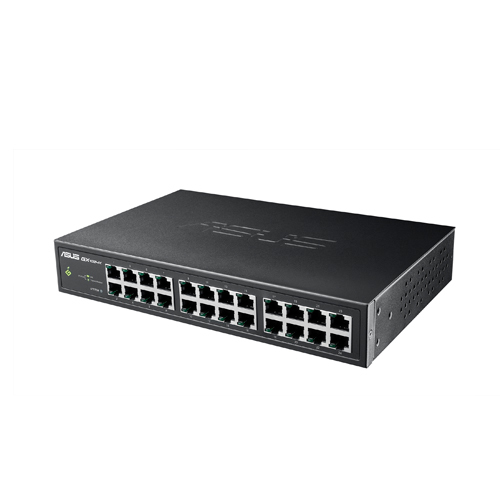

ASUS GX1024X V3
Model GX1024X V3
39 specifications
- Speed0.2 Gbit/s
- ConnectivityWired
- Weight1.18 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Speed
- 0.2 Gbit/s
- Connectivity
- Wired
- Weight
- 1.18 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- ASUS
- Category
- Network Switch
- Model
- GX1024X V3
- Part number
- GX1024X V3
- Also known as
- ASUS GX1024X V3 network switch Black
Specifications
39 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/20/100/200 Mb/s |
| Switching capacity | 4.8 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.2 Gbit/s |
| Packet buffer memory | 0.244 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| LED indicators | LAN, Power, Status |
| Safety | LVD |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 6 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking features | Fast Ethernet |
| Power LED | Yes |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 266.7 mm |
| Height | 44.4 mm |
| Weight | 1.18 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, C-Tick |
What people say
Reviews & ratings
ASUS GX1024X V3
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS GX1024X V3
All network switch comparisons- ASUS GX1024X V3 vsASUS GX-D1241 V2Compare specs
- ASUS GX1024X V3 vsASUS GX1008B V5Compare specs
- ASUS GX1024X V3 vsASUS FX-D1162 V2Compare specs
- ASUS GX1024X V3 vsASUS GX-D1081 V2Compare specs

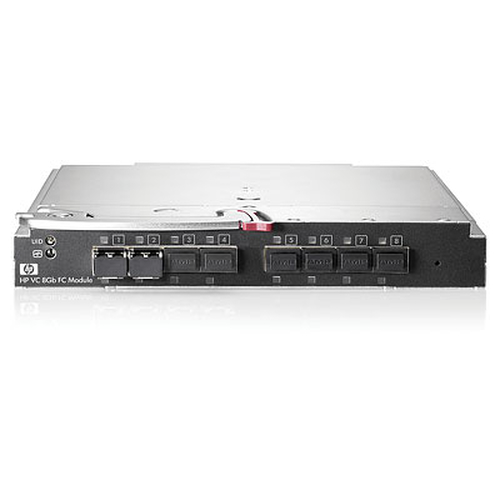

- ASUS GX1024X V3 vsHP Virtual Connect 8Gb 24-port FCCompare specs

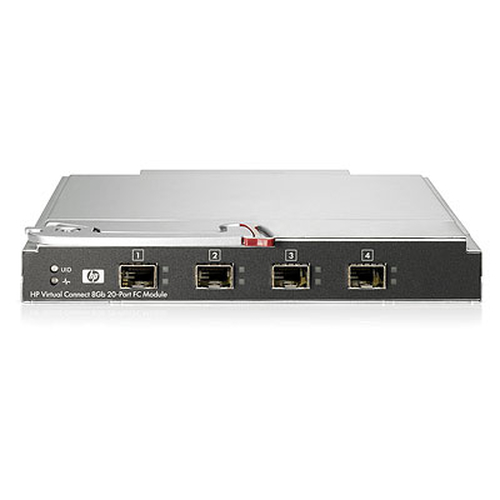

- ASUS GX1024X V3 vsHP Virtual Connect 8Gb 20-port FCCompare specs

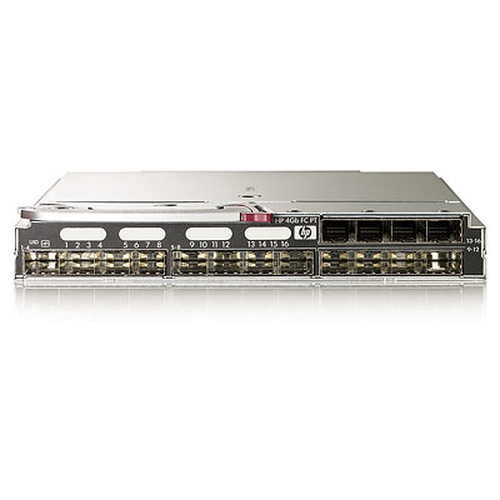

- ASUS GX1024X V3 vsHP 4GB FC Pass-thru ModCompare specs
