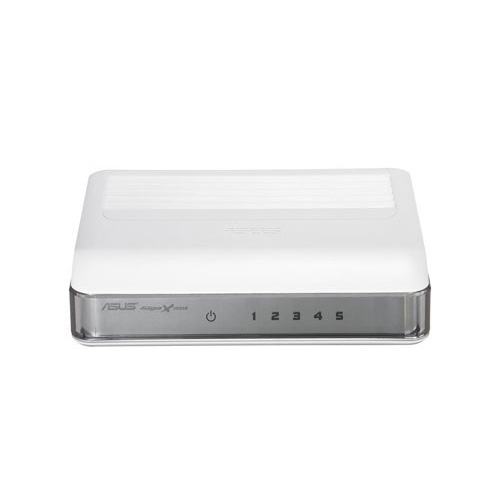

ASUS GX1005B Unmanaged White
Model GX1005BPart no. 90-Q863AN1N0N3MA0EAN 610839302871
25 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight164 g
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 164 g
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Brand
- ASUS
- Category
- Network Switch
- Model
- GX1005B
- Part numbers
- 90-Q863AN1N0N3MA0, GX 1005B
- EAN / UPC
- 610839302871, 4054318946488, 5711045076855
- Also known as
- ASUS GX1005B Unmanaged White
Specifications
25 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Supported data transfer rates | 10/100 Mbps |
| Maximum data transfer rate | 0.1 Gbit/s |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | White |
| Safety | UL1950, TUV |
Power
| Specification | Value |
|---|---|
| Power source | AC 120V, 60Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 35 x 91 x 36 mm |
| Connectivity technology | Wired |
| Networking features | Fast Ethernet |
| Connectivity LEDs | Yes |
| Switch fabric speed | 1.0 Gbps |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 164 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 Class B CE Mark VCCI C-Tick MIC CCC |
