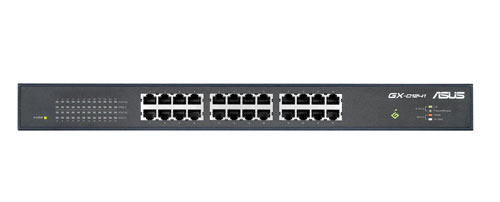

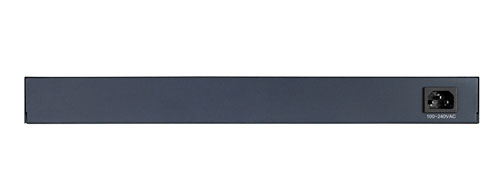

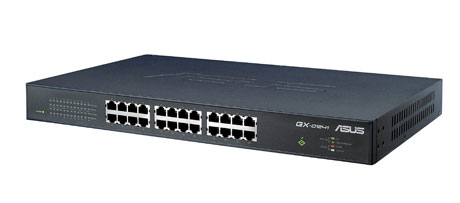

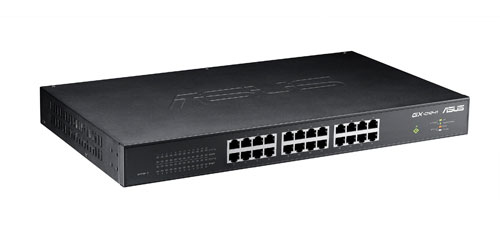

ASUS GX-D1241 V2
Model GX-D1241 V2
37 specifications
- Speed2 Gbit/s
- ConnectivityWired
- Weight2.6 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 2 Gbit/s
- Connectivity
- Wired
- Weight
- 2.6 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- ASUS
- Category
- Network Switch
- Model
- GX-D1241 V2
- Part number
- GX-D1241 V2
- Also known as
- ASUS GX-D1241 V2 network switch Unmanaged Black
Specifications
37 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/20/100/200/2000 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 2 Gbit/s |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| Safety | LVD |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 30 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Packet transfer speed | 14800 packets/sec |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 32 - 113 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250 mm |
| Depth | 430 mm |
| Height | 44.5 mm |
| Weight | 2.6 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
