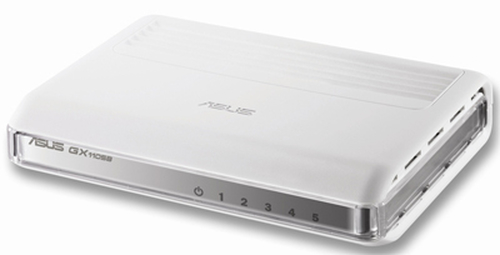

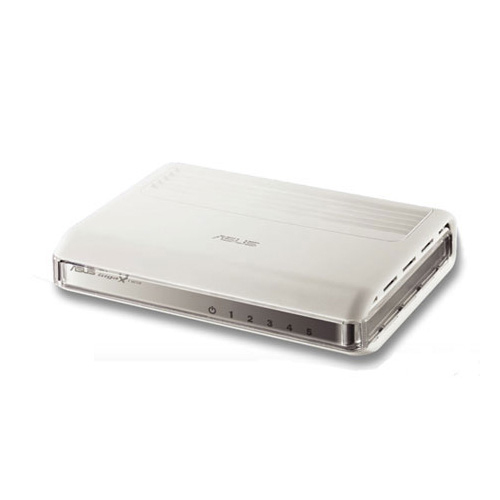

ASUS GigaX1105BV2 Unmanaged
Model GigaX1105BV2Part no. 90-Q8Q1AN1N0-3P1Z
21 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Networking standardsIEEE 802.3ab
- MAC address table8000 entries
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Networking standards
- IEEE 802.3ab
- MAC address table
- 8000 entries
- Brand
- ASUS
- Category
- Network Switch
- Model
- GigaX1105BV2
- Part numbers
- 90-Q8Q1AN1N0-3P1Z, GIGAX1105BV2
- Also known as
- ASUS GigaX1105BV2 Unmanaged
Specifications
21 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 165.6 x 117.3 x 32.5 mm |
| Connectivity technology | Wired |
| Bandwidth | 10 Gbit/s |
| Networking features | Gigabit Ethernet |
| Power requirements | 12V, 1A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | - UL1950; - TUV; - FCC Part 15, Class B; - CE Mark |
