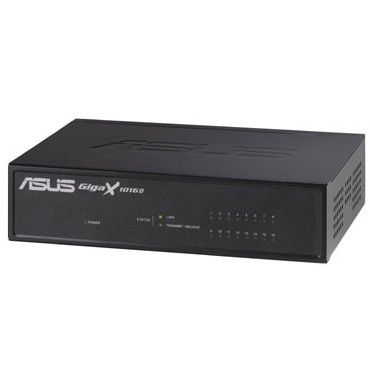

ASUS GigaX1016D
Model GigaX1016DPart no. 90-Q6F1GN1NNAM31EAN 610839908479
20 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Basic switching RJ-45 Ethernet ports quantity16
- Copper ethernet cabling technology100Base-TX, 10Base-T
- MAC address table4096 entries
- LED indicatorsPower, Status
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Copper ethernet cabling technology
- 100Base-TX, 10Base-T
- MAC address table
- 4096 entries
- LED indicators
- Power, Status
- Brand
- ASUS
- Category
- Network Switch
- Model
- GigaX1016D
- Part numbers
- 90-Q6F1GN1NNAM31, 90-Q6F1GN1NNAM21, 90-Q6F1GN1NNAM30, GX1016D
- EAN / UPC
- 610839908479, 4719543908471, 4719543908464
- Also known as
- ASUS GigaX1016D
Specifications
20 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4096 entries |
| Switching capacity | 3.2 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
Design
| Specification | Value |
|---|---|
| LED indicators | Power, Status |
| Safety | UL1950, CCC |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 13.5 W |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 185 x 124 x 45 mm |
| Connectivity technology | Wired |
| Power requirements | 9VAC; 1.5A |
| I/O ports | 16x 10/100 Auto MDI/MDIX Ethernet 1x Power |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, VCCI, C-Tick MIC, CCC |
