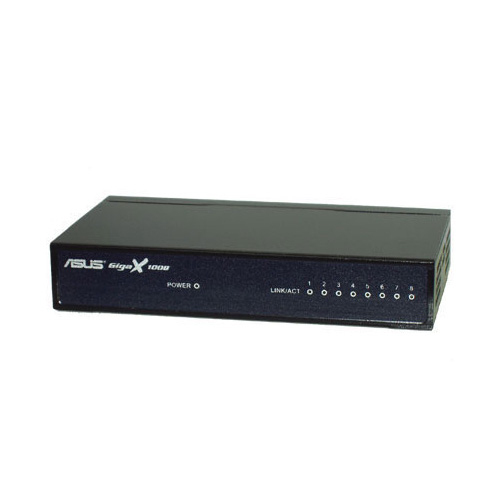

ASUS GigaX1008 Unmanaged L2
Model GigaX1008Part no. 90-Q662GN1NNAM31
22 specifications
- Speed0.1 Gbit/s
- Weight280 g
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Full duplexYes
- MAC address table1000 entries
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 280 g
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Full duplex
- Yes
- MAC address table
- 1000 entries
- Brand
- ASUS
- Category
- Network Switch
- Model
- GigaX1008
- Part number
- 90-Q662GN1NNAM31
- Also known as
- ASUS GigaX1008 Unmanaged L2
Specifications
22 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Supported data transfer rates | 10 Mbps |
| Switching capacity | 1.6 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Safety | UL1950, TUV |
Power
| Specification | Value |
|---|---|
| Input voltage | 230 V |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 136 x 74 x 24 mm |
| Input frequency | 50 Hz |
| Networking features | Fast Ethernet |
| Non-operating relative humidity (non-condensing) | 10 - 90% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 280 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC CE VCCI MIC CCC C-Tick |
What people say
Reviews & ratings
ASUS GigaX1008 Unmanaged L2
No reviews yet
Be the first to tell others how ASUS GigaX1008 Unmanaged L2 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS GigaX1008 Unmanaged L2
All network switch comparisons- ASUS GigaX1008 Unmanaged L2 vsASUS GX-D1241 network switch Unmanaged BlackCompare specs
- ASUS GigaX1008 Unmanaged L2 vsASUS GX1005B V4Compare specs
- ASUS GigaX1008 Unmanaged L2 vsASUS GX1008 Unmanaged BlackCompare specs
- ASUS GigaX1008 Unmanaged L2 vsASUS GX1105N Unmanaged WhiteCompare specs
- ASUS GigaX1008 Unmanaged L2 vsLevelOne FSW-2106 network switch UnmanagedCompare specs
- ASUS GigaX1008 Unmanaged L2 vsLevelOne 5-Port Fast Ethernet PoE Switch, 802.3af PoE, 4 PoE OutputsCompare specs
- ASUS GigaX1008 Unmanaged L2 vsHP SN6000C Managed 1U GreyCompare specs

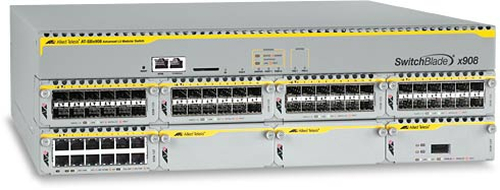

- ASUS GigaX1008 Unmanaged L2 vsAllied Telesis AT-SBX908-00 Managed L3 Power over Ethernet (PoE)Compare specs
