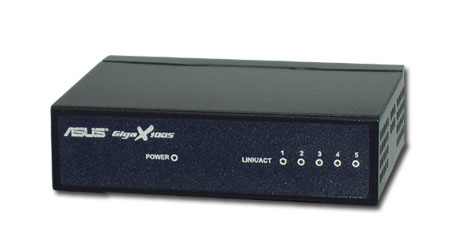

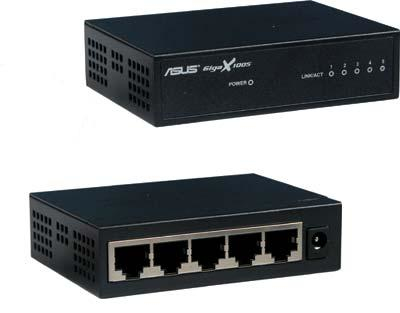

ASUS GigaX1005 Unmanaged Black
Model GigaX1005Part no. GIGAX 1005EAN 4719543908280
28 specifications
- Speed0.1 Gbit/s
- Weight200 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 200 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Brand
- ASUS
- Category
- Network Switch
- Model
- GigaX1005
- Part numbers
- GIGAX 1005, 90-Q652GN1NNAM31, GX1005, 90-Q651GN1NNAM31
- EAN / UPC
- 4719543908280, 4719543908297, 2001603883005
- Also known as
- ASUS GigaX1005 Unmanaged Black
Specifications
28 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-T, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 1 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Safety | UL1950, TUV |
Power
| Specification | Value |
|---|---|
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92 mm |
| Depth | 67 mm |
| Height | 24 mm |
| Weight | 200 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 Class B, CE Mark, VCCI, C-Tick, MIC, CCC |
