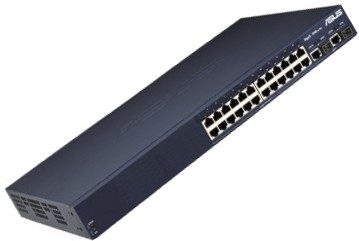

GigaX 2024
Model GigaX 2024Part no. 90-Q621AN2N0B3EA1
20 specifications
- Speed1 Gbit/s
- Basic switching RJ-45 Ethernet ports quantity26
- Copper ethernet cabling technology100Base-TX, 10Base-T
- MAC address table8000 entries
- Management protocolsSNMP, RMON, IGMP, Telnet, STP
- SafetyUL1950, TUV
Overview
- Speed
- 1 Gbit/s
- Basic switching RJ-45 Ethernet ports quantity
- 26
- Copper ethernet cabling technology
- 100Base-TX, 10Base-T
- MAC address table
- 8000 entries
- Management protocols
- SNMP, RMON, IGMP, Telnet, STP
- Safety
- UL1950, TUV
- Brand
- ASUS
- Category
- Network Switch
- Model
- GigaX 2024
- Part number
- 90-Q621AN2N0B3EA1
- Also known as
- ASUS GigaX 2024
Specifications
20 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 26 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 13.6 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, RMON, IGMP, Telnet, STP |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
Design
| Specification | Value |
|---|---|
| Safety | UL1950, TUV |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 90 W |
Other features
| Specification | Value |
|---|---|
| Management platform | Web-based, CLI |
| Data transfer rate | 1000 Mbit/s |
| Packet transfer speed | 10.1 Mpps |
| Power requirements | 90~240VAC, 50/60Hz |
| Electromagnetic emissions | FCC Part 15 Class A, CE Mark |
| I/O ports | 24x 10/100Base-TX ports 2x 10/100/1000BASE-T ports 2x SFP slots(1000Base-SX/-LX) 1x USB port 1x RS-232 port 1x Power Adapter port |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 15 - 90% |
