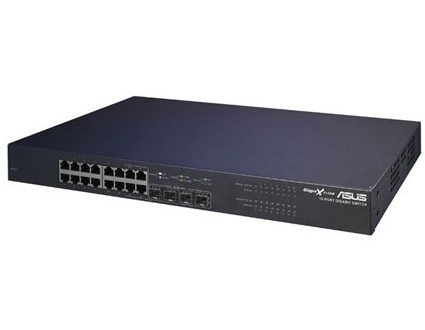

ASUS GigaX 1116B
Model GigaX 1116BPart no. GX1116BEAN 4719543912553
27 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight2.3 kg
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 2.3 kg
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Copper ethernet cabling technology
- 1000BASE-T, 100BASE-TX, 10BASE-T
- Brand
- ASUS
- Category
- Network Switch
- Model
- GigaX 1116B
- Part numbers
- GX1116B, GIGAX 1116B, 90Q772AN1NO-3P2, 90-Q772AN1N0-3P2Z
- EAN / UPC
- 4719543912553, 610839911769, 4719543911761
- Also known as
- ASUS GigaX 1116B Unmanaged
Specifications
27 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
Design
| Specification | Value |
|---|---|
| Safety | UL1950, TUV |
| Electromagnetic compatibility | FCC Part 15 Class A, CE, C-TICK, CB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 50 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 442 x 200 x 44 mm |
| Connectivity technology | Wired |
| Power requirements | AC 90-240V, 50/60 Hz |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.3 kg |
