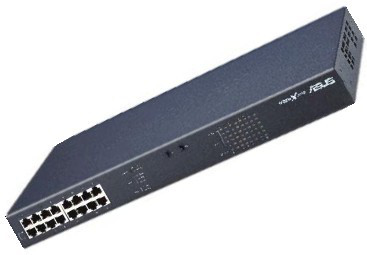

GigaX 1116
Model GigaX 1116Part no. 90-QS06AN1N003EA2
21 specifications
- Speed1 Gbit/s
- Weight2.3 kg
- Basic switching RJ-45 Ethernet ports quantity16
- Copper ethernet cabling technology1000Base-T, 100Base-TX, 10Base-T
- MAC address table4000 entries
- SafetyUL1950, TUV
Overview
- Speed
- 1 Gbit/s
- Weight
- 2.3 kg
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Copper ethernet cabling technology
- 1000Base-T, 100Base-TX, 10Base-T
- MAC address table
- 4000 entries
- Safety
- UL1950, TUV
- Brand
- ASUS
- Category
- Network Switch
- Model
- GigaX 1116
- Part number
- 90-QS06AN1N003EA2
- Also known as
- ASUS GigaX 1116
Specifications
21 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 1000Base-T, 100Base-TX, 10Base-T |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 32 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
Design
| Specification | Value |
|---|---|
| Safety | UL1950, TUV |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 50 W |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 442 x 200 x 44 mm |
| Packet transfer speed | 23.8 Mpps |
| Power requirements | 90-240V, 50/60 Hz |
| Electromagnetic emissions | FCC Part 15 Class A, CE, C-TICK, CB |
| I/O ports | 16x Ethernet (Auto MDI/MDIX) ports 1x Power Adapter port |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.3 kg |
