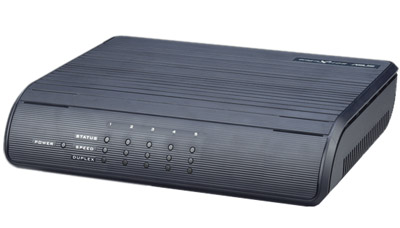

GigaX 1105
Model GigaX 1105Part no. 90-QS08AN1N003UA0EAN 4719543900512
19 specifications
- Speed1 Gbit/s
- Weight470 g
- Basic switching RJ-45 Ethernet ports quantity5
- Copper ethernet cabling technology1000Base-T, 100Base-TX, 10Base-T
- MAC address table4096 entries
- SafetyUL1950, TUV
Overview
- Speed
- 1 Gbit/s
- Weight
- 470 g
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Copper ethernet cabling technology
- 1000Base-T, 100Base-TX, 10Base-T
- MAC address table
- 4096 entries
- Safety
- UL1950, TUV
- Brand
- ASUS
- Category
- Network Switch
- Model
- GigaX 1105
- Part numbers
- 90-QS08AN1N003UA0, GIGAX-1105
- EAN / UPC
- 4719543900512
- Also known as
- ASUS GigaX 1105
Specifications
19 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 1000Base-T, 100Base-TX, 10Base-T |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4096 entries |
| Maximum data transfer rate | 1 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
Design
| Specification | Value |
|---|---|
| Safety | UL1950, TUV |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 154 x 194 x 43 mm |
| Packet transfer speed | 7.4Mpps |
| Power requirements | 100-240V, 50/60 |
| Electromagnetic emissions | FCC Part 15 Class B, CE Mark |
| I/O ports | 5x Ethernet (Auto MDI/MDIX) ports 1x Power Adapter port |
| Technical features | Plug&Play |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 470 g |
