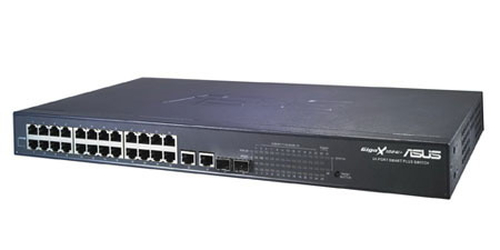

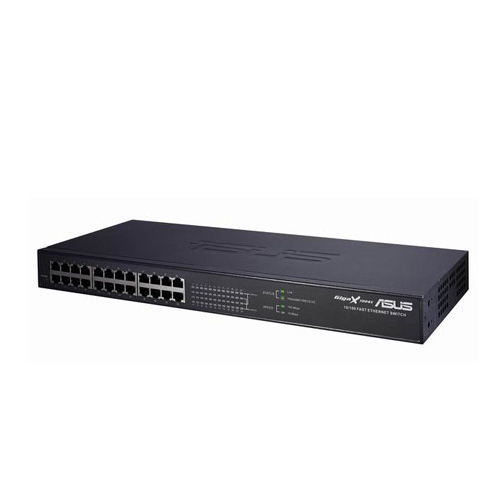

ASUS GigaX 1024X
Model GigaX 1024XPart no. GIGAX 1024X
32 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight2.2 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 2.2 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- ASUS
- Category
- Network Switch
- Model
- GigaX 1024X
- Part numbers
- GIGAX 1024X, GIGAX1024X
- Also known as
- ASUS GigaX 1024X Unmanaged L2 Black
Specifications
32 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 4.8 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| Safety | UL1950, TUV |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 12 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 444 x 200 x 44 mm |
| Connectivity technology | Wired |
| Networking features | Fast Ethernet |
| Packet transfer speed | 3.6 Mpps |
| Power requirements | AC 90-240VAC, 50/60Hz |
| Wi-Fi | No |
| Connectivity LEDs | Yes |
| Electromagnetic emissions | FCC 15 A, CE Mark |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.2 kg |
