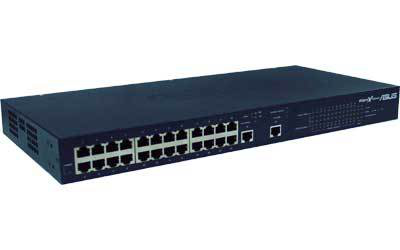

GigaX 1024P Smart Switch
Model GigaX 1024P Smart SwitchPart no. 90-QS0AAN1N0030A0EAN 4719543908105
18 specifications
- Speed0.1 Gbit/s
- Basic switching RJ-45 Ethernet ports quantity26
- Copper ethernet cabling technology1000Base-T, 100Base-TX, 10Base-T
- MAC address table8000 entries
- Rack mountingYes
- Power consumption (typical)15 W
Overview
- Speed
- 0.1 Gbit/s
- Basic switching RJ-45 Ethernet ports quantity
- 26
- Copper ethernet cabling technology
- 1000Base-T, 100Base-TX, 10Base-T
- MAC address table
- 8000 entries
- Rack mounting
- Yes
- Power consumption (typical)
- 15 W
- Brand
- ASUS
- Category
- Network Switch
- Model
- GigaX 1024P Smart Switch
- Part number
- 90-QS0AAN1N0030A0
- EAN / UPC
- 4719543908105
- Also known as
- ASUS GigaX 1024P Smart Switch
Specifications
18 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 26 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 1000Base-T, 100Base-TX, 10Base-T |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 8.8 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Safety | UL1950, TUV |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1000 Mbit/s |
| Packet transfer speed | 6.6 Mpps |
| Power requirements | 100~240VAC, 50/60Hz |
| Electromagnetic emissions | FCC Part 15, Class A; CE Mark |
| I/O ports | 24x 10/100Mbps (RJ-45) BASE-TX ports 2x 10/100/1000Mbps (RJ-45) BASE-T ports 1x Power Adapter port |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
